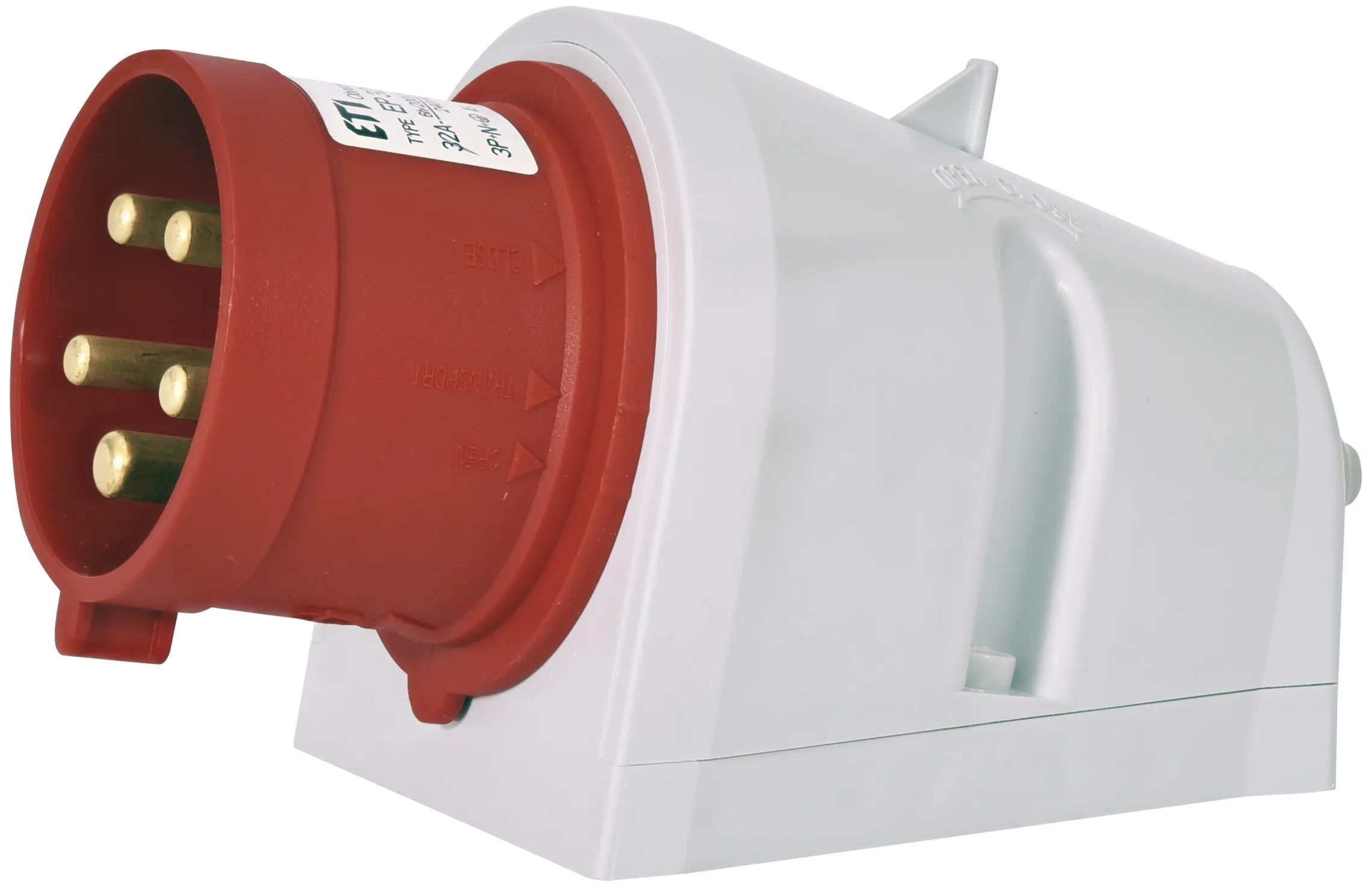

Industrijski vtikač EP 3253 004482063
Specifikacija
- Koda izdelka:
- 004482063
- Opis:
- EP 3253
- Ime razreda:
- Industrijski vtikač
- Nazivni tok (A):
- 32
- Nazivna napetost (V):
- 400
- Število polov:
- 3+N+PE
- IP zaščita:
- IP44
- Tip (vtičnica/uvodnica):
- Nadometni vtič
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85366990
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895674399
- Teža
- 0.27 kg
Transportno pakiranje
- Količina
- 6
- EAN
- 3838895674405
- Teža
- 1.659 kg
- Odpremna količina
- 630
ETIM klasifikacija
- Klasifikacija
- EC001319
- Ime razreda
- CEE plug for mounting on machines and equipment
- IEC-amperage
- 32A
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Number of poles
- 3
- Clock hour position
- 6h
- Identification colour
- Red
- Degree of protection (IP)
- IP44
- Connection system
- Screwed terminal
- Construction type
- Built-up device plug
- Insert direction
- Straight
- Material
- Plastic
