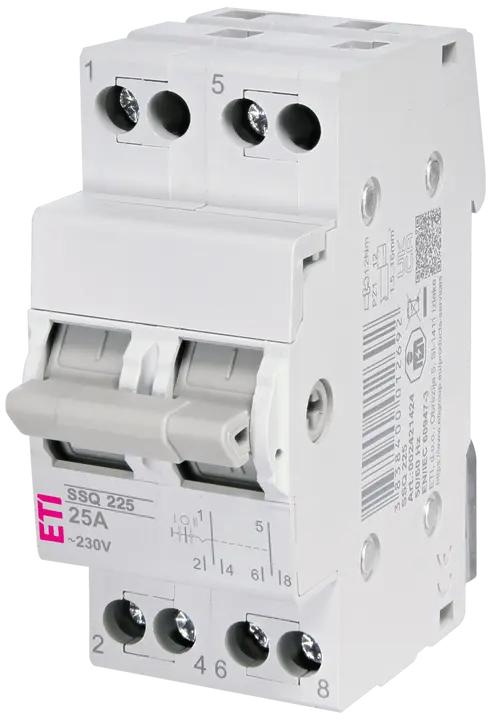

Skupinsko stikalo SSQ 225 002421424
Specifikacija
- Koda izdelka:
- 002421424
- Opis:
- SSQ 225
- Ime razreda:
- Skupinsko stikalo
- Funkcija:
- Skupinsko stikalo
- Nazivni tok (A):
- 25
- Nazivna AC napetost (V):
- 400
- Število polov:
- 2
- IP zaščita:
- IP20
- Največji input cross-section, mm2:
- 16
- Nazivna frekvenca (Hz):
- 50/60
- Standardi:
- 60947-3
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85365080
- logis_net_width
- 36 mm
- logis_net_height
- 84 mm
- logis_net_depth
- 73 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895930648
- Teža
- 0.176 kg
Transportno pakiranje
- Količina
- 6
- EAN
- 3838895930655
- Teža
- 1.056 kg
- Odpremna količina
- 4266
ETIM klasifikacija
- Klasifikacija
- EC001545
- Ime razreda
- Main switch for distribution board
- Switching function
- Two-way switch
- Number of contacts as change-over contact
- 1
- Number of poles
- 2
- Rated current
- 25A
- Rated voltage
- 400V
- Min. rated voltage
- 10V
- Voltage type
- AC
- With signal lamp
- Ne
- Width in number of modular spacings
- 2
- Built-in depth
- 70mm
- Degree of protection (IP)
- IP20
Slike in diagrami
