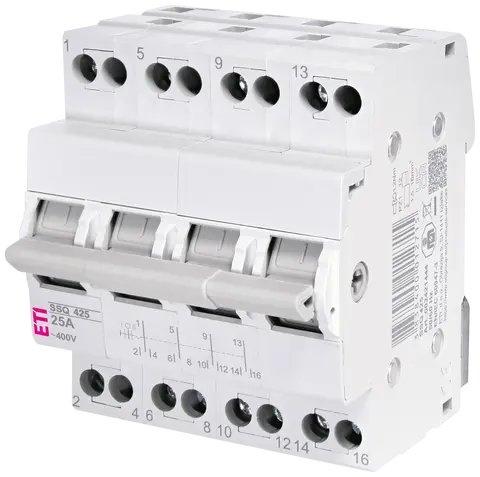

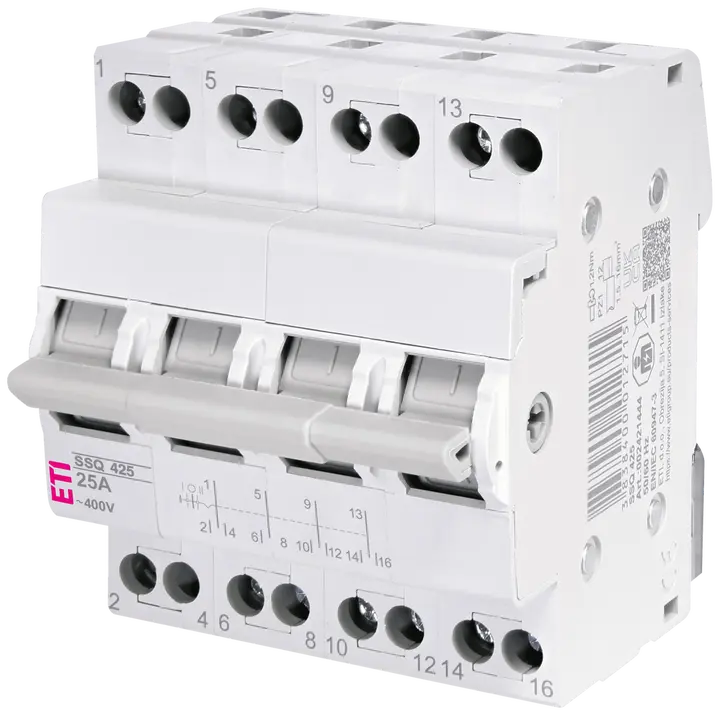

Skupinsko stikalo SSQ 425 002421444
Specifikacija
- Koda izdelka:
- 002421444
- Opis:
- SSQ 425
- Ime razreda:
- Skupinsko stikalo
- Funkcija:
- Skupinsko stikalo
- Nazivni tok (A):
- 25
- Število polov:
- 4
- IP zaščita:
- IP20
- Največji input cross-section, mm2:
- 16
- Nazivna frekvenca (Hz):
- 50/60
- Standardi:
- 60947-3
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85365080
- logis_net_width
- 72 mm
- logis_net_height
- 84 mm
- logis_net_depth
- 73 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895930884
- Teža
- 0.352 kg
Transportno pakiranje
- Količina
- 3
- EAN
- 3838895930891
- Teža
- 1.056 kg
- Odpremna količina
- 2133
ETIM klasifikacija
- Klasifikacija
- EC001545
- Ime razreda
- Main switch for distribution board
- Switching function
- Two-way switch
- Number of contacts as change-over contact
- 4
- Number of poles
- 4
- Rated current
- 25A
- Rated voltage
- 400V
- Min. rated voltage
- 10V
- Voltage type
- AC
- With signal lamp
- Ne
- Width in number of modular spacings
- 4
- Built-in depth
- 70mm
- Degree of protection (IP)
- IP20
Slike in diagrami
Programska oprema
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
SSQ 425
