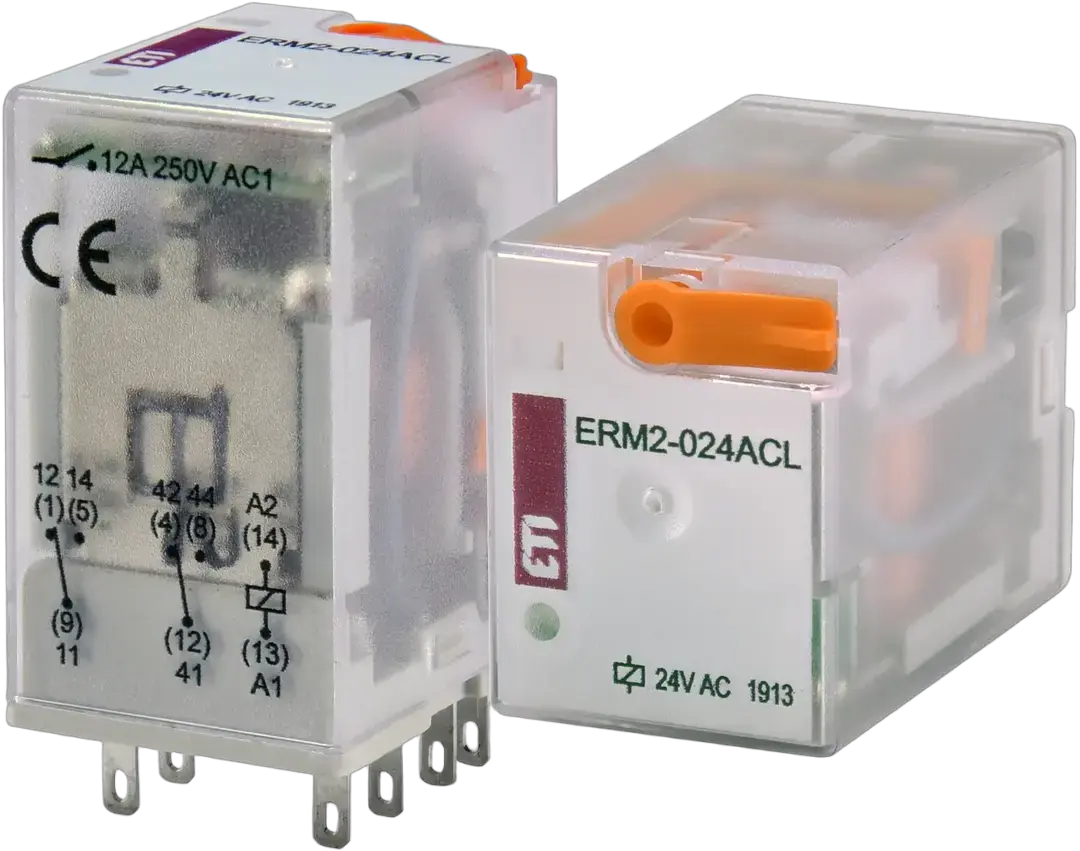

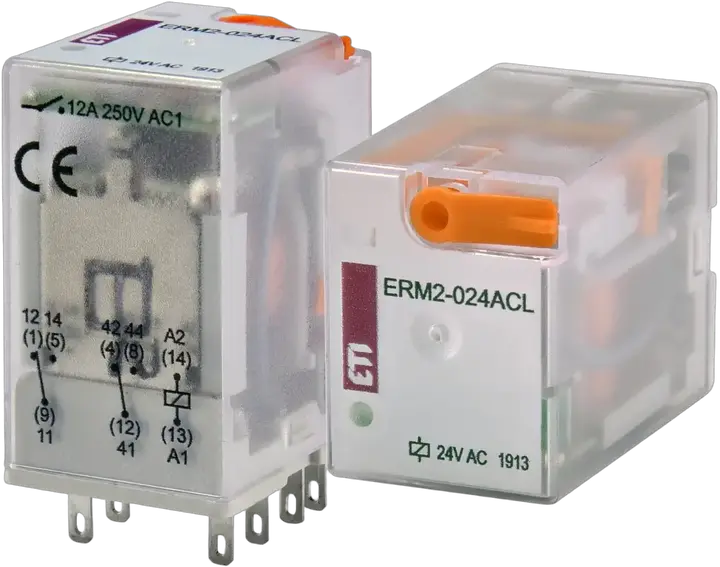

Rele ERM2-024ACL 002473003
Specifikacija
- Koda izdelka:
- 002473003
- Opis:
- ERM2-024ACL
- Ime razreda:
- Rele
- Nazivni tok (A):
- 12
- Vrsta napetosti:
- AC
- Uc krmilna napetost (tuljava) (V):
- 24
- Število CO kontaktov:
- 2
- Preklopna napetost (V):
- 250
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838400013576
- Teža izdelka
- 0.033 kg
- Carinska tarifa
- 85364900
- logis_net_width
- 21 mm
- logis_net_height
- 28 mm
- logis_net_depth
- 42 mm
Osnovno pakiranje
- Količina
- 10
- EAN
- 3838895680291
- Teža
- 0.33 kg
Transportno pakiranje
- Količina
- 100
- EAN
- 3838895680307
- Teža
- 3.4 kg
- Odpremna količina
- 14700
ETIM klasifikacija
- Klasifikacija
- EC001437
- Ime razreda
- Switching relay
- Type of electric connection
- Plug-in connection
- Nominal current
- 12A
- Rated control supply voltage AC 50 Hz
- 24…24V
- Voltage type for actuating
- AC
- Drive, switching attitude
- Mono stable
- Number of contacts as change-over contact
- 2
- Complete with socket
- Ne
- Degree of protection (IP)
- IP40
- Width
- 21,2mm
- Height
- 27,5mm
- Depth
- 35,6mm
