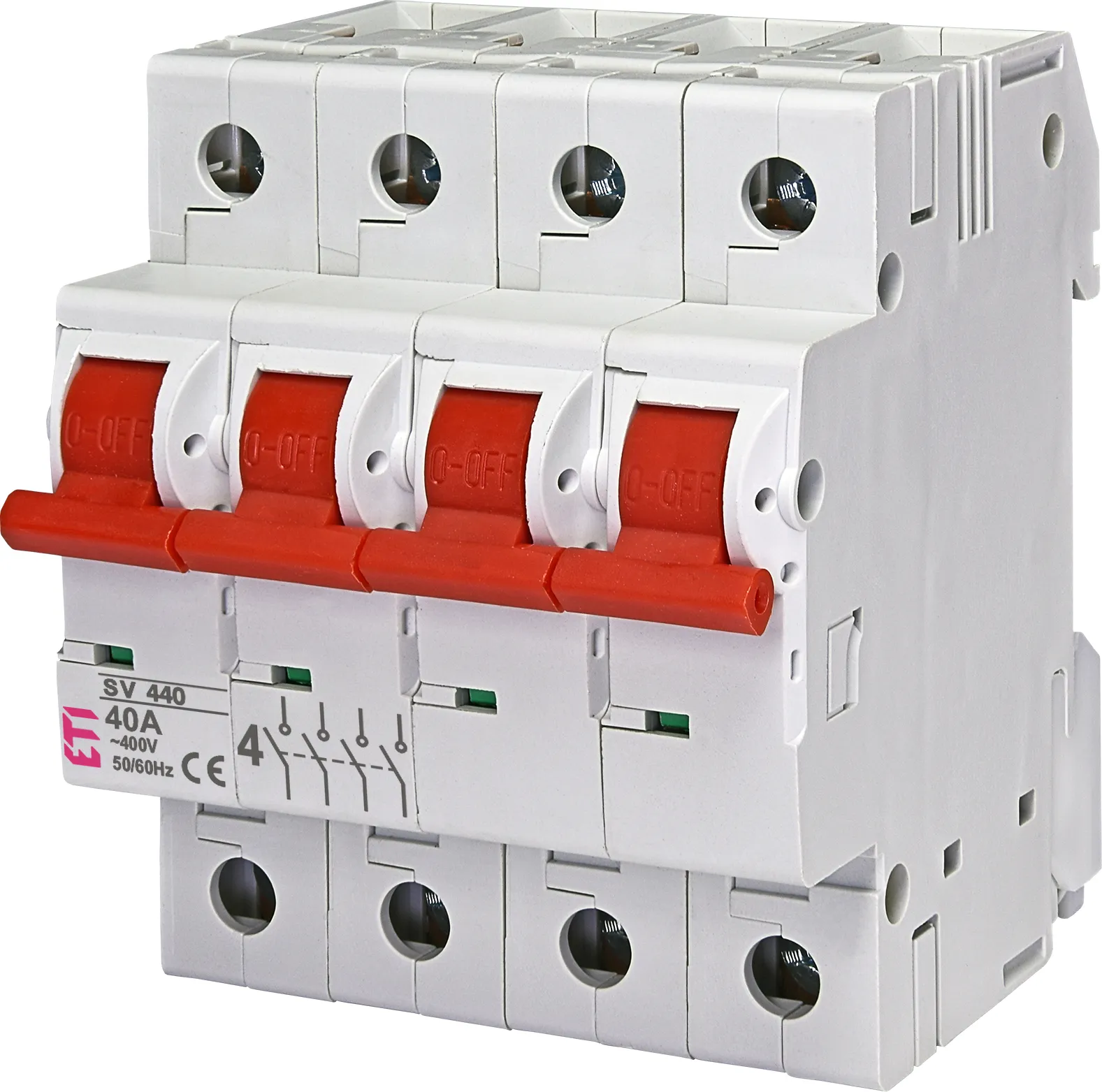

Vgradno stikalo SV 440 4p 40A 002423423
Specifikacija
- Koda izdelka:
- 002423423
- Opis:
- SV 440 4p 40A
- Ime razreda:
- Vgradno stikalo
- Funkcija:
- Vgradno stikalo
- Nazivni tok (A):
- 40
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895321507
- Teža izdelka
- 0.369 kg
- Carinska tarifa
- 85365080
- logis_net_width
- 72 mm
- logis_net_height
- 87 mm
- logis_net_depth
- 73 mm
Osnovno pakiranje
- Količina
- 3
- EAN
- 3838895321514
- Teža
- 1.37 kg
Transportno pakiranje
- Količina
- 27
- EAN
- 3838895321521
- Teža
- 12.68 kg
- Odpremna količina
- 1404
ETIM klasifikacija
- Klasifikacija
- EC000216
- Ime razreda
- Switch disconnector
- Version as main switch
- Da
- Version as maintenance-/service switch
- Da
- Version as safety switch
- Da
- Version as emergency stop installation
- Da
- Max. rated operation voltage Ue AC
- 400V
- Rated permanent current Iu
- 40A
- Conditioned rated short-circuit current Iq
- 2kA
- Number of poles
- 4
- Motor drive optional
- Ne
- Motor drive integrated
- Ne
- Voltage release optional
- Da
- Device construction
- Built-in device fixed built-in technique
- Suitable for distribution board installation
- Da
- Type of control element
- Rocker lever
- Interlockable
- Ne
- Type of electrical connection of main circuit
- Frame clamp
- Degree of protection (IP), front side
- IP20
