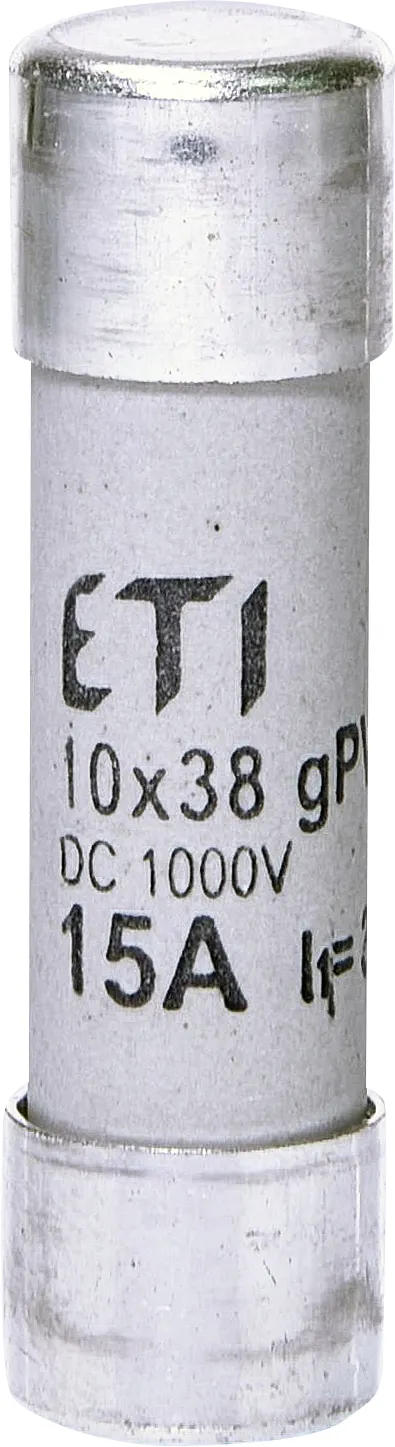

CH10x38 gPV 15A/1000V DC 002625080

Specifikacija

Koda izdelka:
002625080
Opis:
CH10x38 gPV 15A/1000V DC
Tip:
CH
Velikost:
CH10
Nazivni tok (A):
15
Nazivna enosmerna napetost (V):
1000
Karakteristika:
gPV
L/R (ms):
2
DC Izklopna zmogljivost (kA):
30
Aplikacije:
Za zaščito fotovolataičnih modulov
Dimenzija:
10x38
Izgubna moč (0,7xIn) (W):
1
Izgubna moč (W):
2,2
Skupni Joulov integral (A2s):
145
Talilni Joulov integral (A2s):
49
Standardi:
IEC 60269-6

Dokumenti

Produkt

EAN koda izdelka
3838895667834
Teža izdelka
8.3 g
Carinska tarifa
85361050

Osnovno pakiranje

Osnovno pakiranje
10
EAN koda osnovnega pakiranja
3838895667834
Teža osnovnega pakiranja
0.08 kg
Volumen osnovnega pakiranja
0.042

Transportno pakiranje

Pakirna količina
500
EAN koda odpremnega pakiranja
3838895667841
Teža odpremnega pakiranja
4.1 kg
Volumen pakirne embalaže
3.386
Odpremna količina
85000
Volumen paletnega pakiranja
575.62
