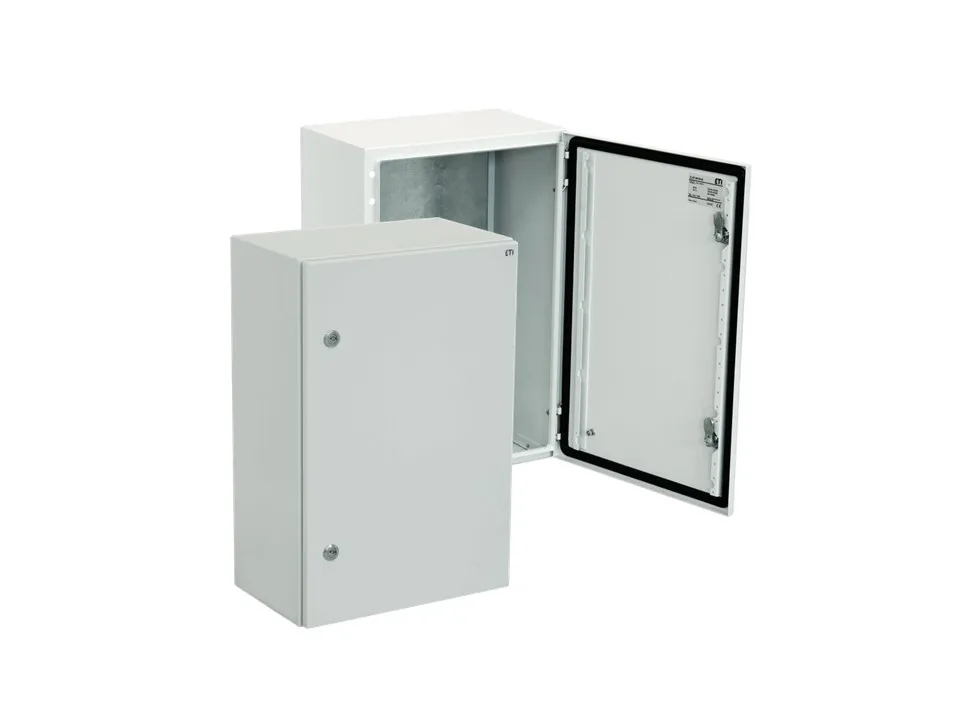

GT 50-55-25 001102118

Specifikacija

Koda izdelka:
001102118
Opis:
GT 50-55-25
Stopnja zašcite:
I
IP zaščita:
IP66
Odpornost na udarce:
IK10
Višina (mm):
500
Širina (mm):
550
Globina (mm):
250
Aplikacije:
Notranja uporaba
Color:
RAL 7035

Dokumenti

Produkt

EAN koda izdelka

Teža izdelka
16.62  kg
Carinska tarifa
85369001

Osnovno pakiranje

Količina
1
EAN
3838895591894
Teža
17.2  kg

Transportno pakiranje

Količina
30
EAN
3838895591900
Teža
516  kg

Programska oprema

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
001102118 Flush mounted enclosure Enclosure, GT 50-55-25 ETIBOX Metal enclosures GT IP66 GT GT GT GT Enclosures, distribution boards, equipment ETIBOX Enclosure system and accessories SOLID GSX Wall-mounted IP66 GT type GT 50-55-25 Function Enclosure Type Wall mounted enclosure Mounting type Wall mounted Type of door Full, metal door For use with SOLID GSX system Size 50-55-25 Height 500mm Width 550mm Depth 250mm Frame size 250 Product group ETIBOX Product subgroup SOLID GSX IP rating IP66 Dimensions 550x500x250 Mounting Wall mounted Network system 1 phase and 3 phase system Color RAL 7035 Catalogue Group SOLID GSX Enclosures Isolation class I Ambient temperature -5?C ... +40?C°C Standards IEC EN 62208, IEC EN 60529, IEC EN 62262 Application Indoor use Key locks Two lock with a double-bit insert Mechanical resistance IK10 Protection Class I
