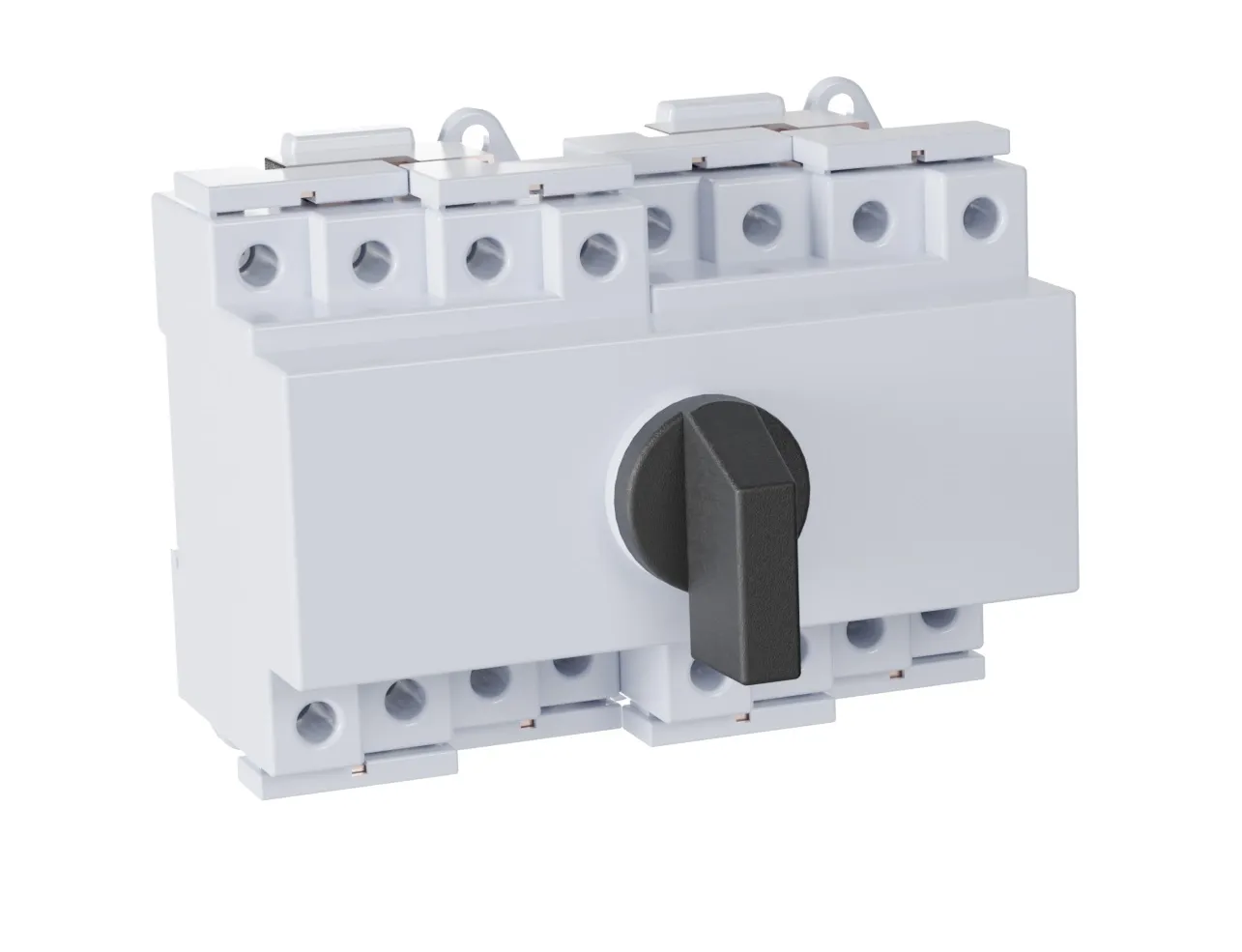

LS32 SMA A4+2 004660066

Specifikacija

Koda izdelka:
004660066
Opis:
LS32 SMA A4+2
Funkcija:
PV ločilno stikalo, 0-1
Število polov:
4+4
Max. Nazivna delovna napetost Ur (V)):
1500
Termični tok Ith (A):
32
Nazivni obratovalni tok Ie DC-21 B pri 1000V DC (A):
58
Montaža:
DIN-letev montaža

Dokumenti

Produkt

EAN koda izdelka
3838895627364
Teža izdelka
0.43 kg
Carinska tarifa
85365080

Osnovno pakiranje

Osnovno pakiranje
1
EAN koda osnovnega pakiranja
3838895627364
Teža osnovnega pakiranja
0.53 kg
Volumen osnovnega pakiranja
2.37

Transportno pakiranje

Pakirna količina
6
EAN koda odpremnega pakiranja
3838895627371
Teža odpremnega pakiranja
3.18 kg
Volumen pakirne embalaže
14.22
Odpremna količina
762
Volumen paletnega pakiranja
1805.94

Programska oprema

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
004660066Switch disconnector PV, LS32 SMA A4+2Green protectSwitch disconnectorSwitch disconnector LS4-pole4-pole4-polePhotovoltaic, battery fuses and devicesSwitch disconnectors DCLS32 SMA A4+2Function PV Switch disconnectors, 0-1Type DIN-rail mountedRated operation power at AC3 0kWNo. of aux NC contacts 0No. Of poles 4+4Mounting DIN-rail mountedCatalogue Group Rotary cam switchDesigned for Protection of PV installationsThermal current Ith 32AMax. rated operational voltage Ur 1500VRated operational current Ie DC-21 B at 1000V DC 58ASwitch disconnector PV LS32 PV Switch disconnectors, 0-1 4+4 1500V 32A DIN-rail mounted
