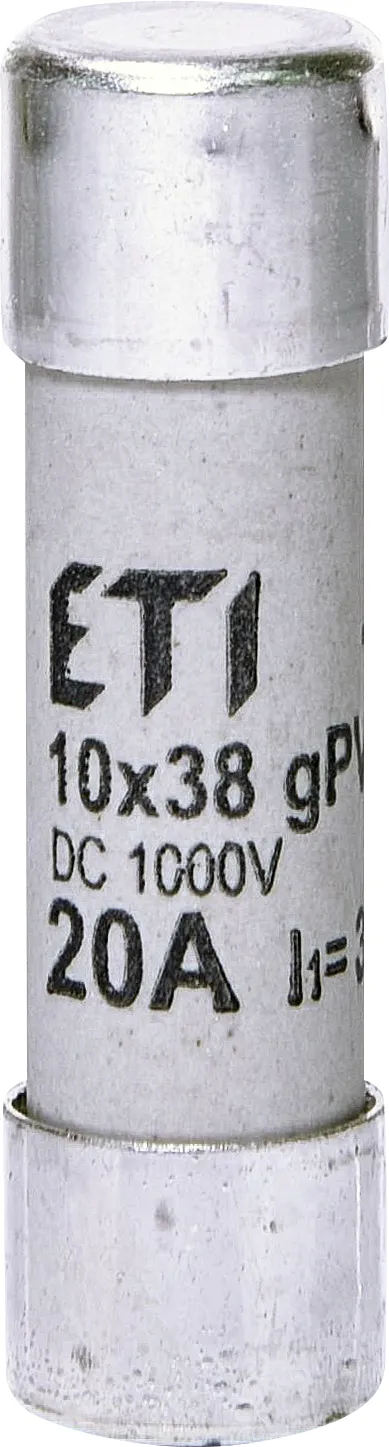

CH10x38 gPV 20A/1000V DC 002625085

Specifikacija

Koda izdelka:
002625085
Opis:
CH10x38 gPV 20A/1000V DC
Tip:
CH
Velikost:
CH10
Nazivni tok (A):
20
Nazivna enosmerna napetost (V):
1000
Karakteristika:
gPV
L/R (ms):
2
DC Izklopna zmogljivost (kA):
30
Aplikacije:
Za zaščito fotovolataičnih modulov
Dimenzija:
10x38
Izgubna moč (0,7xIn) (W):
1,3
Izgubna moč (W):
3,2
Skupni Joulov integral (A2s):
245
Talilni Joulov integral (A2s):
86
Standardi:
IEC 60269-6

Dokumenti

Produkt

EAN koda izdelka
3838895681915
Teža izdelka
8.3 g
Carinska tarifa
85361050

Osnovno pakiranje

Osnovno pakiranje
10
EAN koda osnovnega pakiranja
3838895681915
Teža osnovnega pakiranja
0.08 kg
Volumen osnovnega pakiranja
0.042

Transportno pakiranje

Pakirna količina
500
EAN koda odpremnega pakiranja
3838895681922
Teža odpremnega pakiranja
4.1 kg
Volumen pakirne embalaže
3.386
Odpremna količina
85000
Volumen paletnega pakiranja
575.62

Slike in diagrami

Programska oprema

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
002625085Flush mounted enclosureFuse link, CH10x38 gPV 20A/1000V DCGreen protectCH gPVCH 10gPV1000VStandard contactsPhotovoltaic, battery fuses and devicesPhotovoltaic fuse links CH gPVCH10X38 GPV 20A/Rated current 20AType CHSize CH10Product group Special purpose fusesProduct subgroup PVCharacteristics gPVRated DC voltage 1000VDimensions 10x38Breaking capacity DC 30kAPower dissipation 3,2WCatalogue Group Special purpose fusesCatalogue subgroup PV FuseStandards IEC 60269-6Power dissipation (0,7xIn) 1,3WOperating joule integral 245A2sL/R 2msPrearcing joule integral 86A2sApplication For protection of photovoltaic modulesDesigned for Protection of PV installationsFuse link CH10x38 CH CH10 20A 1000V gPV 2ms
