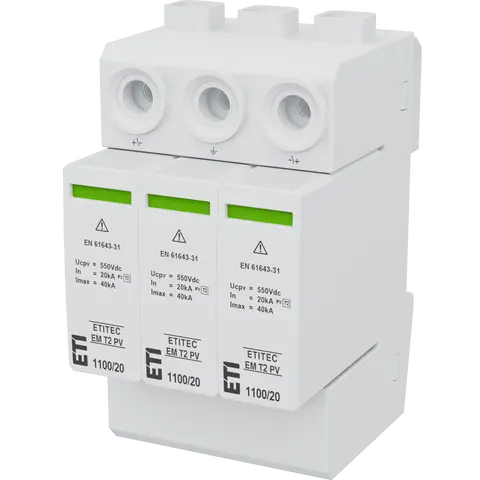

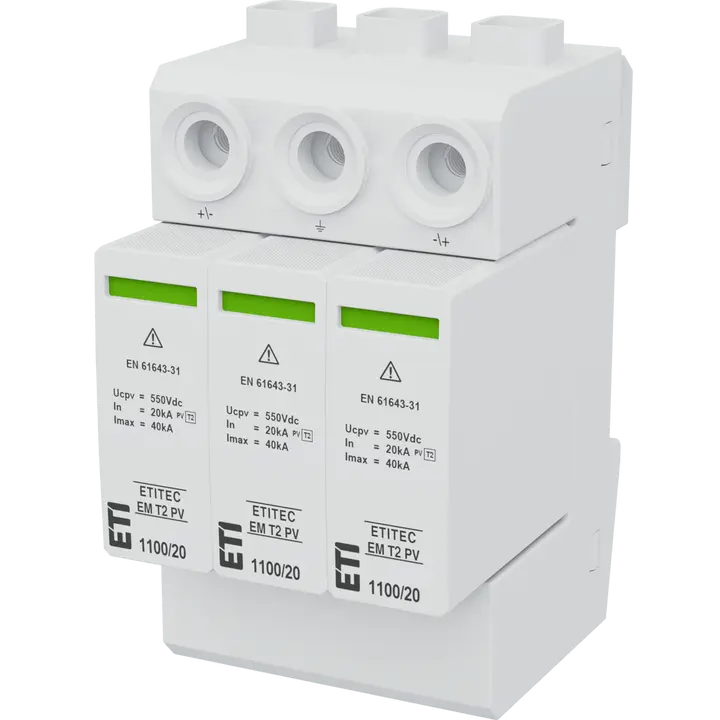

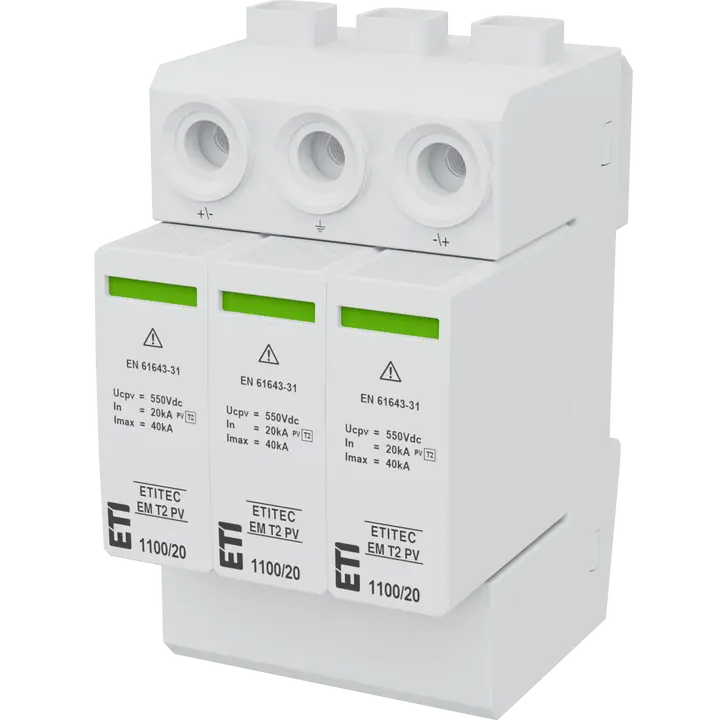

Prenapetostni odvodnik ETITEC EM T2 PV 1100/20 Y RC 002440624
Specifikacija
- Koda izdelka:
- 002440624
- Opis:
- ETITEC EM T2 PV 1100/20 Y RC
- Ime razreda:
- Prenapetostni odvodnik
- Tip toka:
- DC
- Skupina po po IEC/VDE:
- II / C
- Funkcija:
- SPD
- Tip:
- T2
- Število polov:
- 2
- Velikost:
- 3 modules
- IP zaščita:
- IP20
- Montaža:
- DIN letev (top hat rail) 35 mm
- Kataloška skupina:
- ETITEC EM PV
- Število modulov:
- 3
- Up - Stopnja zaščite (kV):
- 3,9
- Uhajavi tok:
- JA
- Uporabljena tehnologija:
- MOV
- Built-in depth (mm):
- 60
- Imax(8/20) (kA):
- 40
- Daljinska signalizacija:
- Da
- In (8/20) (kA):
- 20
- Montaža:
- PV zaščita
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85363090
- logis_net_width
- 54 mm
- logis_net_height
- 104 mm
- logis_net_depth
- 66 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895878001
- Teža
- 0.363 kg
Transportno pakiranje
- Količina
- 5
- EAN
- 3838895878018
- Teža
- 1.896 kg
- Odpremna količina
- 1100
ETIM klasifikacija
- Klasifikacija
- EC000941
- Ime razreda
- Surge protection device for power supply systems
- System configuration DC
- Da
- System configuration IT
- Ne
- System configuration TN
- Ne
- System configuration TN-C
- Ne
- System configuration TN-C-S
- Ne
- System configuration TN-S
- Ne
- System configuration TT
- Ne
- System configuration other
- Ne
- Number of conductors (without earthing)
- 2
- Nominal discharge surge current (8/20)
- 20
- Short-circuit breaking capacity (Isccr)
- 9
- Max. discharge surge current (8/20)
- 40
- Max. continuous voltage DC
- 1100
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Max. PV-voltage
- 916
- Voltage protection level
- 3,9
- Max. conductor cross section solid (solid, stranded)
- 35
- Max. conductor cross section flexible (fine-strand)
- 25
- With remote signalling contact
- Da
- Integrated backup fuse
- Ne
- Signalling at the device
- Optical
- Category type 2
- Da
- Degree of protection (IP)
- IP20
