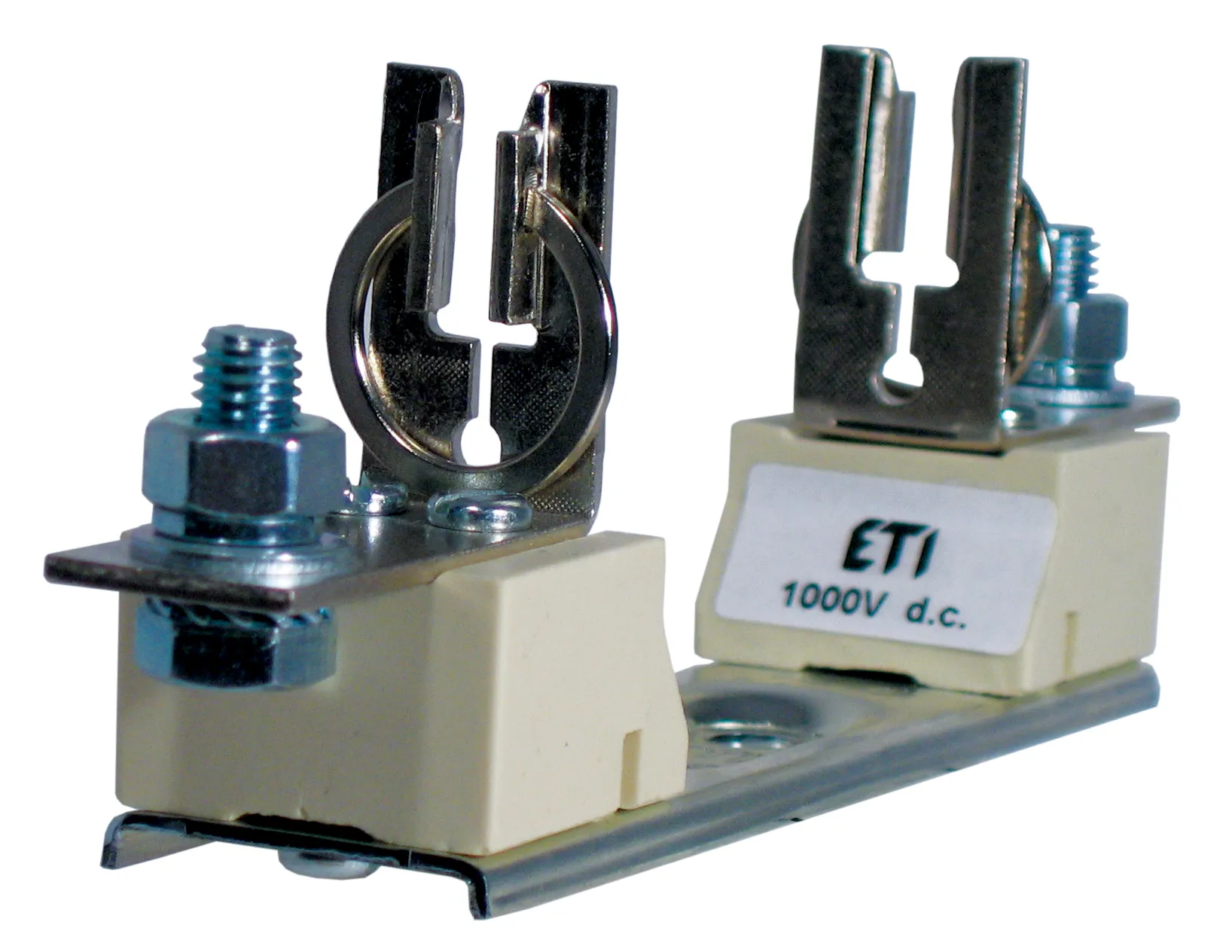

PK 0 M8-M8 DC 1000V 1p 004122033

Specifikacija

Koda izdelka:
004122033
Opis:
PK 0 M8-M8 DC 1000V 1p
Nazivni tok (A):
160
Tip:
PK
Standardi:
IEC60269
Nazivna AC napetost (V):
1000
Nazivna enosmerna napetost (V):
1000
Produktna skupina:
Nizkonapetostni varovalčni podstavki
Priključitev:
M8
Montaža:
Vijačna montaža

Dokumenti

Produkt

EAN koda izdelka
3838895524755
Teža izdelka
288.8 g
Carinska tarifa
85389099

Osnovno pakiranje

Osnovno pakiranje
3
EAN koda osnovnega pakiranja
3838895524755
Teža osnovnega pakiranja
0.84 kg
Volumen osnovnega pakiranja
1.35

Transportno pakiranje

Pakirna količina
90
EAN koda odpremnega pakiranja
3838895524762
Teža odpremnega pakiranja
25.99 kg
Volumen pakirne embalaže
48
Odpremna količina
1440
Volumen paletnega pakiranja
768

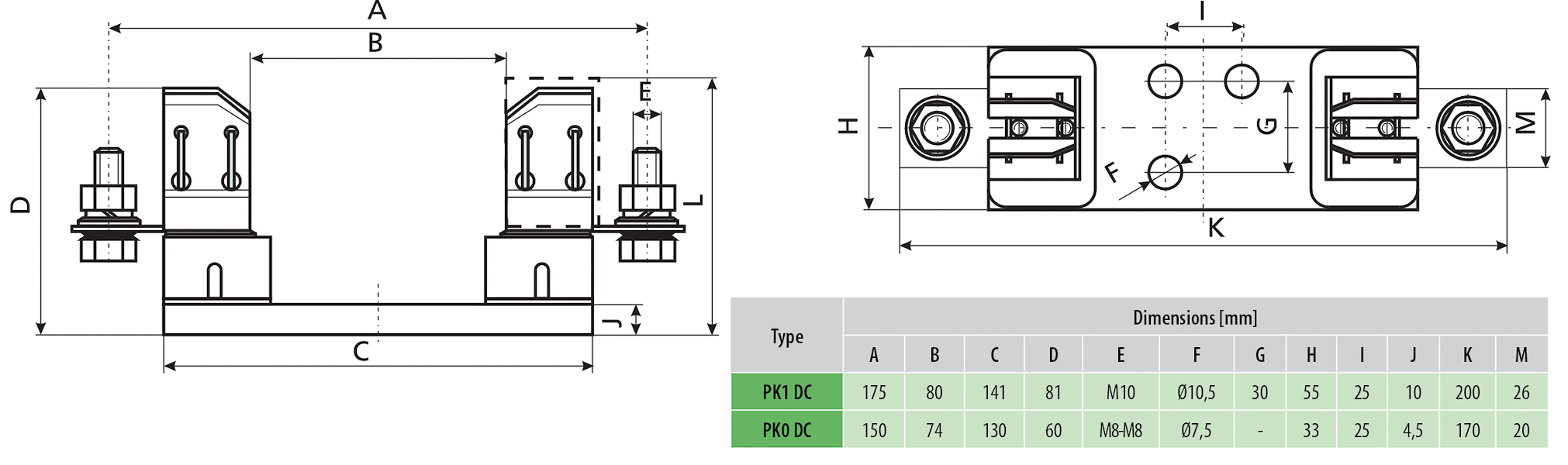

Slike in diagrami

Programska oprema

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
004122033Fuse link base, PK 0 M8-M8 DC 1000V 1pGreen protectFuse basesPK0, 1, 2, 3 DCPK0, 1, 2, 3 DCSize 0Size 0Photovoltaic, battery fuses and devicesFuse bases for NH fuse linksPK 0 M8-M8 DC 10Rated current 160ATo use with NH gPV fuse-linksType PKSize 0No. Of poles 1Product group LV-fuse baseRated AC voltage 1000VConnection M8Rated DC voltage 1000VMounting Screw mountingCatalogue Group LV-fuse baseStandards IEC60269Application Photovoltaic InstallationDesigned for Protection of PV installationsFuse link base PK
