002472051

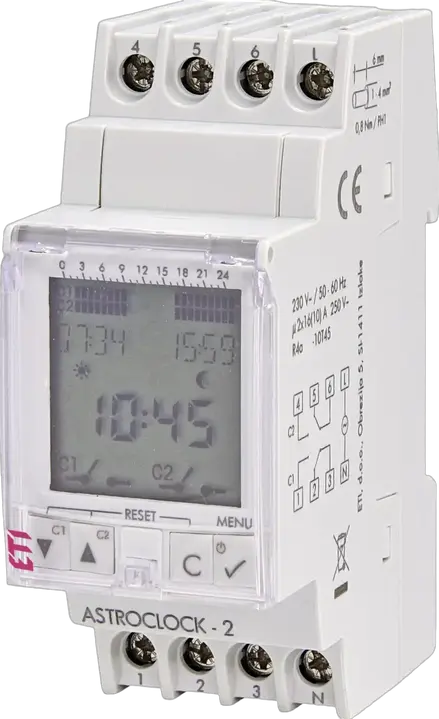

ASTROCLOCK-2 Časovni rele - digitalni

Zaloga status Na zalogi

ETI koda:: 002472051
Višina:: 90 mm
Širina:: 355 mm
Kategorija:: Časovno stikalo ASTROCLOCK 2
Kataloška skupina:: Nočno in astronomsko časovno stikalo
Kataloška podskupina:: Astronomska časovna stikala
Način montaže:: Montaža na pritrdilno letev TH 35
IP zaščita:: IP20
Časovni razpon:: SUNRISE, SUNSET, FIXED TIME: ON/OFF, REDUC.
Opis tipa:: Časovno stikalo ASTROCLOCK 2
Tip kontaktov:: 1xCO
Vrsta napetosti:: AC
Število kontaktov:: 2
Število CO kontaktov:: 2
Funkcija:: Time relay
Maksimalna obremenitev AC1:: 4.000 VA
Napajalna napetost:: 230 V
Nazivni tok:: 16 A

Produkt

Neto teža izdelka: 0,166 kg
Net width: 35 mm
Net height: 91,2 mm
Net depth: 63,32 mm
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895717874
Basic packaging weight: 0,166 kg
Basic Packaging Dimensions Height: 95 mm
Basic Packaging Dimensions Width: 42 mm
Basic Packaging Dimensions Depth: 72 mm
Basic packaging volume: 0,287 dm³

Transportna embalaža

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895717881
Transport packaging weight: 1,68 kg
Transport Packaging Dimensions Height: 210 mm
Transport Packaging Dimensions Width: 150 mm
Transport Packaging Dimensions Depth: 160 mm
Transport packaging volume: 5,04 dm³
Pallet quantity: 1.500 pcs
Customs tariff: 85364900

Max. switching power LED: 90 W
Number of contacts: 2
Quartz controlled: Da
Width: 35,5 mm
Suitable for manual operation: Da
Number of memory locations: 40
Weekly program: Da
Astro program: Da
Number of channels: 2
Degree of protection (IP): IP20
Contact type: Change-over contact (NO/NC)
Mounting method: DIN rail
Automatic switching summer-/winter time: Da
Accuracy per day: 1 s
Holiday program: Da
Voltage type (supply voltage): AC
Autonomy in hours: 48
Shortest switching time channel 2: 0,02 min
Hour meter: Da
24 h program: Da
Nominal switching current at 250 V AC: 16 A
Depth: 65 mm
Text guidance in display: Da
Cycle program: Da
Shortest switching time channel 1: 0,02 min
Potential free switch contact: Da
Height: 90 mm
Width in number of modular spacings: 2
60 min program: Da
Frequency supply voltage(Min): 50 Hz
Supply voltage(Min): 230 V
Frequency supply voltage(Max): 50 Hz
Supply voltage(Max): 230 V
