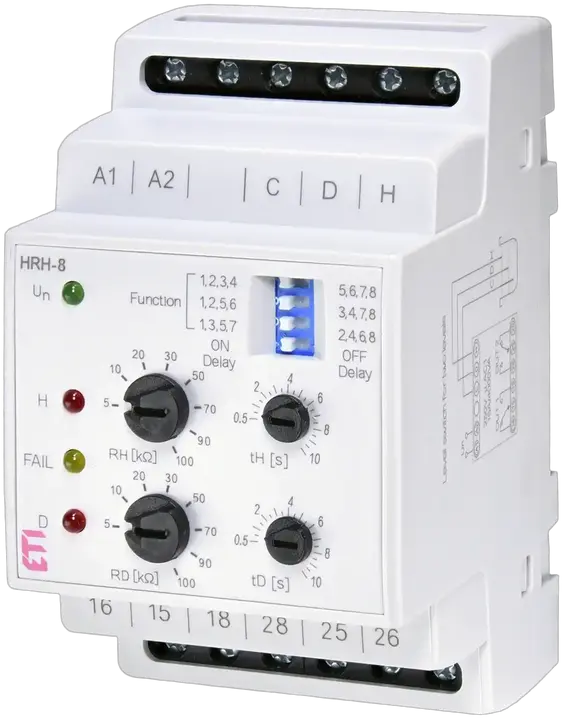

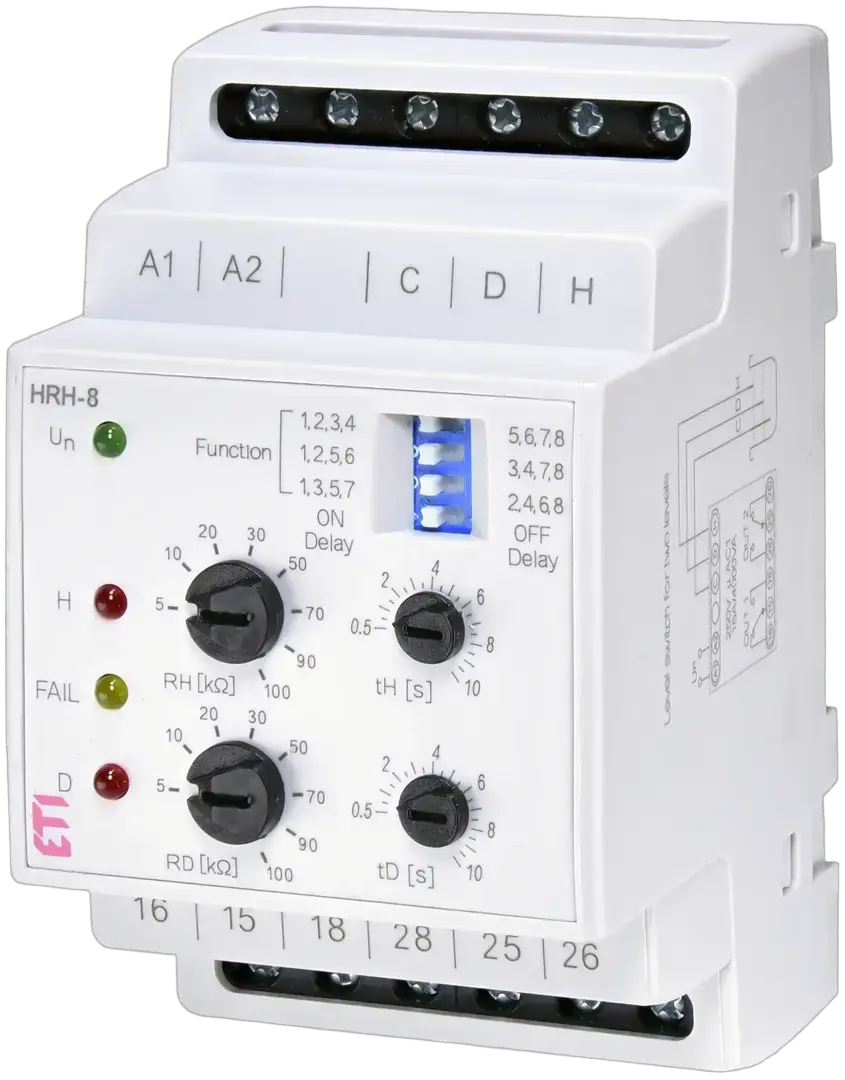

HRH-8 230 V AC Nadzorni rele

Zaloga status Na zalogi

ETI koda:: 002470293
Kategorija:: Rele za nadzor nivoja HRH-8
Kataloška skupina:: Stikala za nadzor gladine
Kataloška podskupina:: Stikalo za nadzor gladine
Funkcija:: Monitoring and Control relays
Napajalna napetost:: 230 V
Tip nadzora:: Nadzor višine nivoja
Število kontaktov:: 2
Vrsta napetosti:: AC
Maksimalna obremenitev AC1:: 4.000 VA
Nazivni tok:: 16 A
Tip kontaktov:: 1xCO
Število CO kontaktov:: 2

Pribor

Produkt

Neto teža izdelka: 0,276 kg
Net width: 52 mm
Net height: 93,5 mm
Net depth: 63,28 mm
Stock unit of measure: pcs

Transportna embalaža

Transport packaging quantity: 1 pcs
EAN code for a transport packaging: 3838895851585
Transport packaging weight: 0,282 kg
Transport Packaging Dimensions Height: 61 mm
Transport Packaging Dimensions Width: 97 mm
Transport Packaging Dimensions Depth: 78 mm
Transport packaging volume: 0,462 dm³
Pallet quantity: 1.920 pcs
Customs tariff: 85364900

Max. permitted operate delay time: 10 s
Width: 52 mm
Response value sensitivity adjustable: Da
Physical measurement principle: Conductive
Voltage type (operating voltage): AC
Max. permitted off-delay time: 10 s
Voltage type (supply voltage): AC
Min. adjustable off-delay time: 0,5 s
Min. adjustable operate delay time: 0,5 s
Rated switch current: 16 A
Number of inputs for electrodes: 4
Depth: 65 mm
Type of electric connection: Screw connection
Number of contacts as change-over contact: 2
Height: 90 mm
Operating voltage AC 50 Hz(Min): 230 V
Operating voltage AC 60 Hz(Min): 230 V
Supply voltage AC 60 Hz(Min): 230 V
Supply voltage AC 50 Hz(Min): 230 V
Supply voltage AC 50 Hz(Max): 230 V
Operating voltage AC 60 Hz(Max): 230 V
Operating voltage AC 50 Hz(Max): 230 V
Supply voltage AC 60 Hz(Max): 230 V

ETIM klasifikacija – različica 9.0

Eplan

Programska oprema je zagotovljena takšna, kot je, brez kakršnihkoli jamstev ali garancij. Avtor ni zavezan zagotavljati podpore, storitev, popravkov ali nadgradenj brezplačnim programom ali gonilnikom.

002470293 Nadzorni rele HRH-8 230 V AC EVE/ETIREL Control equipment Relays Relays Level switch Level switch Internacionalno Avtomatizacija, signalizacija in nadzor Releji za nadzor ETIREL Tip kontaktov: 1xCO Število NC kontaktov: 0 Vrsta napetosti: AC Število kontaktov: 2 Število CO kontaktov: 2 Tip nadzora: Nadzor višine nivoja Funkcija: Monitoring and Control relays Maksimalna obremenitev AC1: 4000 VA Št. NO kontaktov: 0 Napajalna napetost: 230 V-230 V Nazivni tok: 16 A/16 A DC Nazivna krmilna napajalna napetost Uc: 0 V-0 V Nadzorni rele Funkcija: Monitoring and Control relays Napajalna napetost: 230 V-230 V Tip nadzora: Nadzor višine nivoja Število kontaktov: 2 Vrsta napetosti: AC Nazivni tok: 16 A/16 A Maksimalna obremenitev AC1: 4000 VA Tip kontaktov: 1xCO Število NC kontaktov: 0 Število CO kontaktov: 2 Št. NO kontaktov: 0 DC Nazivna krmilna napajalna napetost Uc: 0 V-0 V
