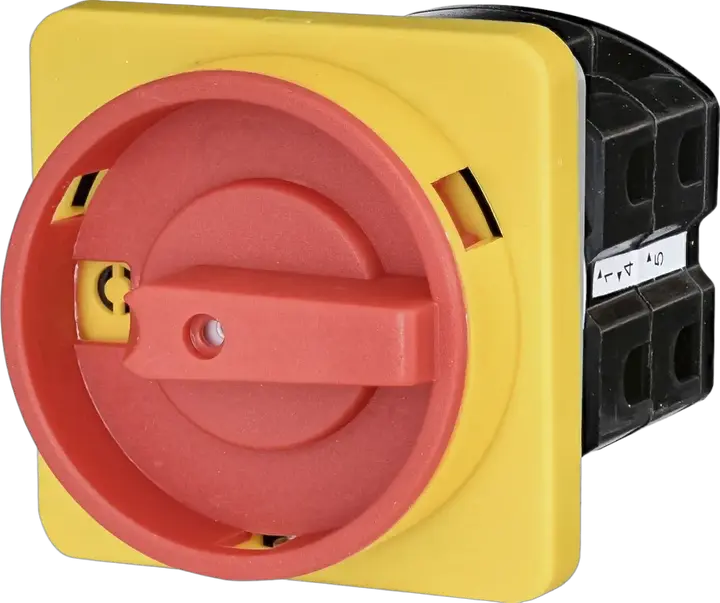

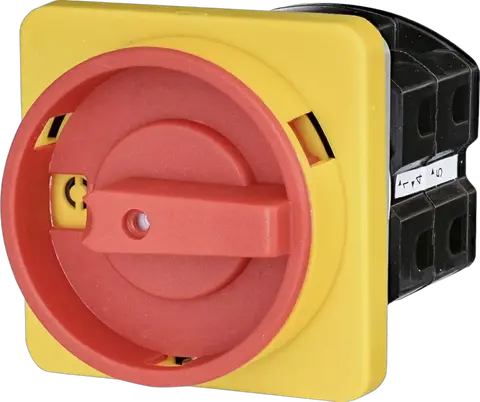

CS 40 10 U LK Grebenasto stikalo

Zaloga status Na zalogi

ETI koda:: 004773070
Nazivni tok:: 40 A
Kataloška skupina:: Odmična (grebenasta) stikala
Način montaže:: Sprednja montaža
Opis tipa:: 0-1 ES LK
Število polov:: 3
Termični tok Ith:: 40 A
Nazivni obratovalni tok Ie AC-21 pri 400V:: 40 A
Maks. nazivna obratovalna napetost (V AC):: 480 V
Nazivna izolacijska napetost:: 690 V
Uporaba:: ="Glavno ON-OFF stikalo za izklop v sili, z možnostjo zaklepa v položaju "0

Produkt

Neto teža izdelka: 0,3 kg
Net width: 75 mm
Net height: 75 mm
Net depth: 123,02 mm
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895660545
Basic packaging weight: 0,3 kg
Basic Packaging Dimensions Height: 110 mm
Basic Packaging Dimensions Width: 77 mm
Basic Packaging Dimensions Depth: 77 mm
Basic packaging volume: 0,652 dm³

Transportna embalaža

Transport packaging quantity: 40 pcs
EAN code for a transport packaging: 3838895660552
Transport packaging weight: 13 kg
Transport Packaging Dimensions Height: 240 mm
Transport Packaging Dimensions Width: 480 mm
Transport Packaging Dimensions Depth: 400 mm
Transport packaging volume: 46,08 dm³
Pallet quantity: 840 pcs
Customs tariff: 85363030

Model: On/Off switch
Rated permanent current Iu: 40 A
Type of control element: Turn button
Suitable for front mounting: Da
Type of electrical connection of main circuit: Screw connection
Number of poles: 3
With zero (off) position: Da
Rated operation power at AC-3, 400 V: 18,5 kW
Suitable for distribution board installation: Da

ETIM klasifikacija – različica 9.0
