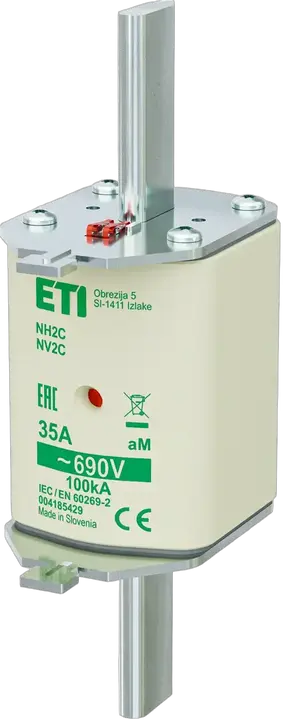

NH2C aM 35A/690V Talilni vložek

Zaloga status Po naročilu

ETI koda:: 004185429
Tip varovalke:: NH
Velikost:: NH2C
Nazivni tok:: 35 A
Karakteristika:: aM
Indikator:: Kombinirani indikator stanja varovalke
Nazivna AC napetost:: 690 V
AC Izklopna zmogljivost:: 100 kA
Izgubna moč:: 1,9 W
Talilni Joulov integral (A2s):: 6.810
Skupni Joulov integral (A2s):: 14.700
Standardi:: VDE 0636-2011
Aplikacije:: Za zaščito relejev, kontaktorjev in motorjev v primeru kratkega stika

Pribor

Produkt

EAN code for a single product: 3838400037589
Neto teža izdelka: 435 g
Net width: 46 mm
Net height: 150,2 mm
Net depth: 72,5 mm
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895337379
Basic packaging weight: 1,385 kg
Basic Packaging Dimensions Height: 0,078 m
Basic Packaging Dimensions Width: 0,147 m
Basic Packaging Dimensions Depth: 0,153 m
Basic packaging volume: 0,002 m³

Transportna embalaža

Transport packaging quantity: 15 pcs
EAN code for a transport packaging: 3838895337386
Transport packaging weight: 7,275 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 780 pcs
Customs tariff: 85361050

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH2C
Rated voltage AC: 690
Power loss at rated current: 1,9 W
Type of fuse status indicator: Combination fuse status indicator
Rated current: 35 A
Utilization category: aM (switchgear protection)
