004110293

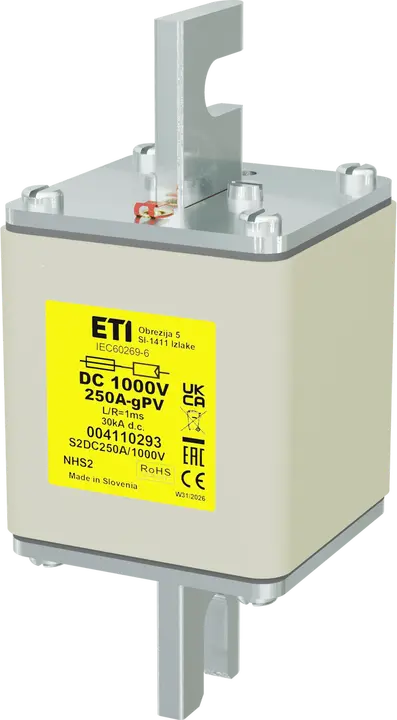

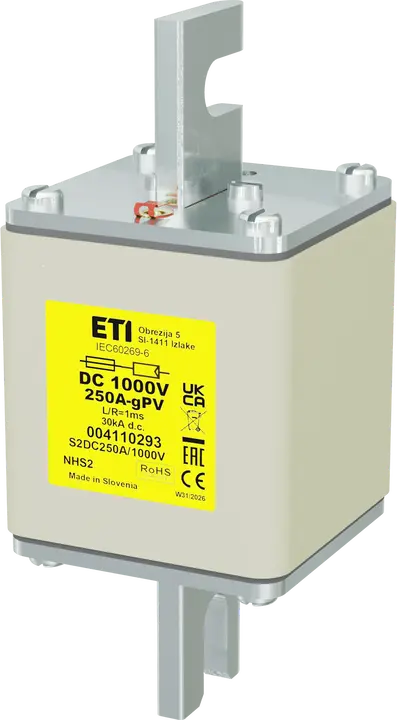

NHS2 gPV 250A/1000V DC Talilni vložek

Zaloga status Po naročilu

ETI koda:: 004110293
Tip varovalke:: NH-S
Velikost:: NH2
Nazivni tok:: 250 A
Karakteristika:: gPV
Indikator:: Indikator stanja zgornjega talilnega vložka
Nazivna enosmerna napetost:: 1000 V
DC Izklopna zmogljivost:: 30 kA
L/R:: 1 ms
Izgubna moč (0,7xIn):: 15 W
Izgubna moč:: 36 W
Talilni Joulov integral (A2s):: 6.000
Skupni Joulov integral (A2s):: 38.000
Standardi:: IEC 60269-6
Aplikacije:: Talilni vložki za DC aplikacije

Produkt

Neto teža izdelka: 820 g
Net width: 60 mm
Net height: 139 mm
Net depth: 60 mm
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895799948
Basic packaging weight: 0,87 kg
Basic Packaging Dimensions Height: 0,152 m
Basic Packaging Dimensions Width: 0,075 m
Basic Packaging Dimensions Depth: 0,062 m
Basic packaging volume: 0,001 m³

Transportna embalaža

Transport packaging quantity: 16 pcs
EAN code for a transport packaging: 3838895799955
Transport packaging weight: 14,27 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 832 pcs
Customs tariff: 85361090

Voltage type: DC
Fuse construction type according to IEC 60269: NH2
Power loss at rated current: 36 W
Rated switching capacity DC: 30 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 250 A
Rated voltage DC: 1.000
Utilization category: gPV (photovoltaic protection)

ETIM klasifikacija – različica 9.0
