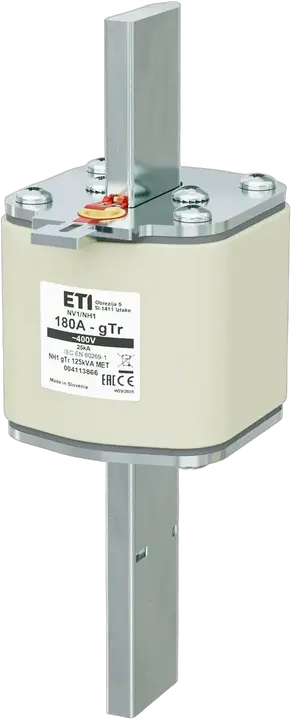

NH1 gTr 180A/400V/125kVA MET Talilni vložek

Zaloga status Po naročilu

ETI koda:: 004113866
Transformator:: 125 kVA
Tip varovalke:: NH
Velikost:: NH1
Nazivni tok:: 180 A
Karakteristika:: gTr
Indikator:: Indikator stanja zgornjega talilnega vložka
Nazivna AC napetost:: 400 V
AC Izklopna zmogljivost:: 25 kA
Izgubna moč:: 13 W
Standardi:: IEC EN 60269-1
Aplikacije:: As metering fuse with strip fuse switch disconnector and fuse switch disconnector

Pribor

Produkt

Neto teža izdelka: 350 g
Net width: 46 mm
Net height: 135,5 mm
Net depth: 61,8 mm
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895618713
Basic packaging weight: 0,39 kg
Basic Packaging Dimensions Height: 0,139 m
Basic Packaging Dimensions Width: 0,07 m
Basic Packaging Dimensions Depth: 0,052 m
Basic packaging volume: 0,001 m³

Transportna embalaža

Transport packaging quantity: 26 pcs
EAN code for a transport packaging: 3838895618720
Transport packaging weight: 10,49 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 1.352 pcs
Customs tariff: 85361090

Rated switching capacity AC: 25 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH1
Rated voltage AC: 400
Power loss at rated current: 13 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 180 A
Utilization category: gTr (Transformer protection)

ETIM klasifikacija – različica 9.0
