004182494

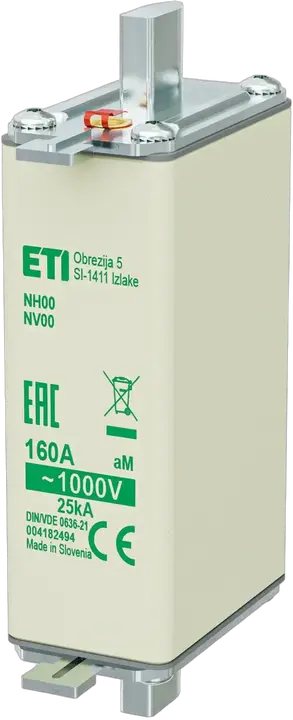

NH00/85 aM 160A/1000V Talilni vložek

Zaloga status Na zalogi

ETI koda:: 004182494
Tip varovalke:: NH
Velikost:: NH00/85
Nazivni tok:: 160 A
Karakteristika:: aM
Indikator:: Indikator stanja zgornjega talilnega vložka
Nazivna AC napetost:: 1000 V
AC Izklopna zmogljivost:: 25 kA
Izgubna moč:: 25 W
Talilni Joulov integral (A2s):: 65.000
Skupni Joulov integral (A2s):: 400.000
Standardi:: VDE 0636-2011
Aplikacije:: Za zaščito relejev, kontaktorjev in motorjev v primeru kratkega stika

Pribor

Produkt

EAN code for a single product: 3838400061843
Neto teža izdelka: 350 g
Net width: 29 mm
Net height: 115,5 mm
Net depth: 59,5 mm
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895723103
Basic packaging weight: 1,085 kg
Basic Packaging Dimensions Height: 0,066 m
Basic Packaging Dimensions Width: 0,093 m
Basic Packaging Dimensions Depth: 0,138 m
Basic packaging volume: 0,001 m³

Transportna embalaža

Transport packaging quantity: 45 pcs
EAN code for a transport packaging: 3838895723110
Transport packaging weight: 16,619 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 2.340 pcs
Customs tariff: 85361090

Rated switching capacity AC: 25 kA
Voltage type: AC
Fuse construction type according to IEC 60269: Other
Rated voltage AC: 1.000
Power loss at rated current: 25 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 160 A
Utilization category: aM (switchgear protection)

ETIM klasifikacija – različica 9.0
