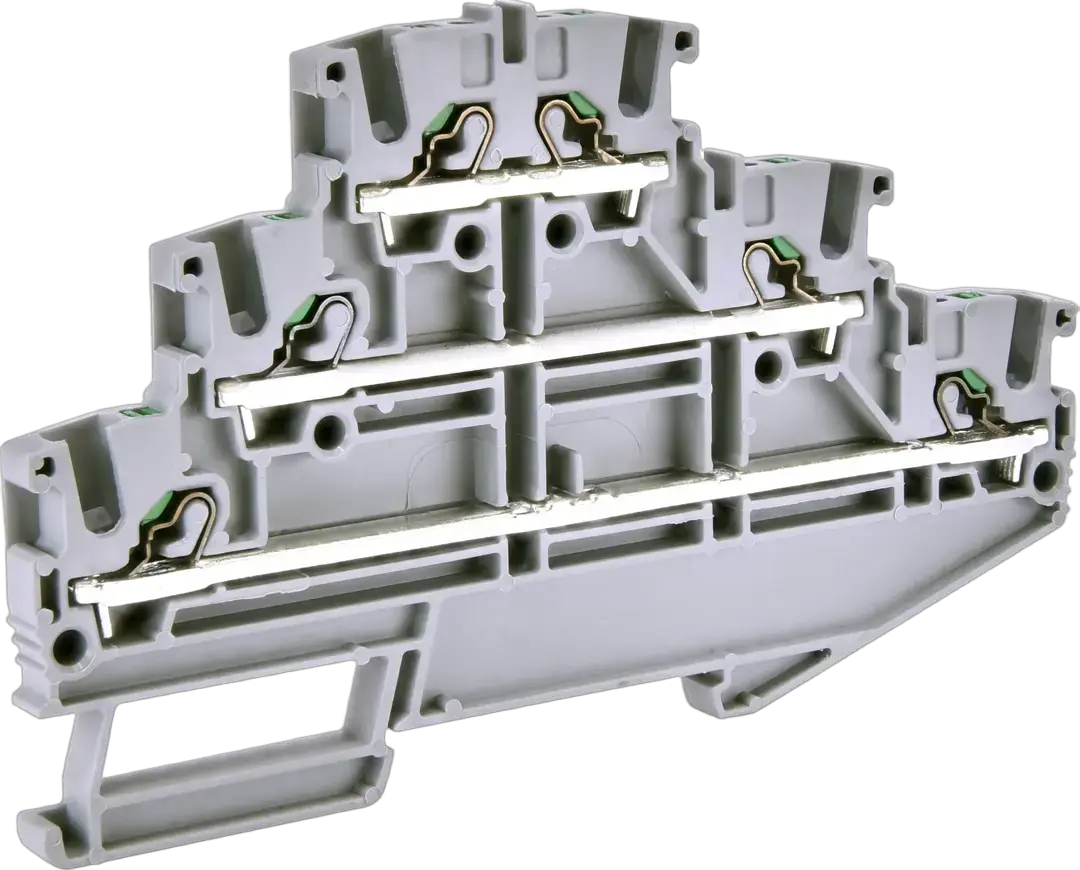

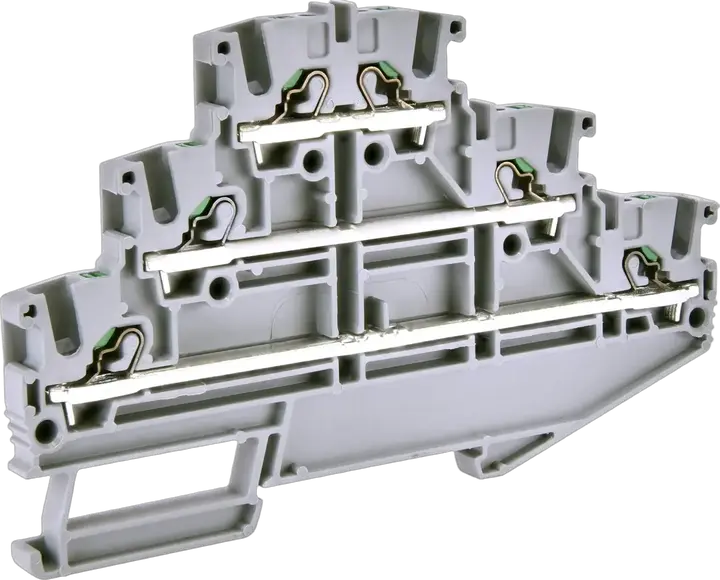

ESH-EFT.2 Vrstna sponka

Zaloga status Na zalogi

ETI koda:: 003903271
Nazivna AC napetost:: 800 V
Nazivna enosmerna napetost:: 800 V
Kataloška skupina:: ESH Push-in vzmetna vrstna sponka
Način montaže:: Montaža na pritrdilno letev TH 35
Opis tipa:: ESH Push-in vzmetne vrstne sponke
Stopnja:: Trinadstropna vrstna sponka
Barva:: Siva
Nazivni presek:: 2 mm²
Nazivna impulzna vzdržna napetost Uimp:: 6 kV
Presek golega vodnika:: 2-4 mm²
Povezovalni mostič:: Yes
Zaključna ploščica potrebna:: Yes

Pribor

Produkt

EAN code for a single product: 3838895869917
Neto teža izdelka: 0,021 kg
Net width: 5,2 mm
Net height: 106,6 mm
Net depth: 66,9 mm
Stock unit of measure: pcs

Transportna embalaža

Transport packaging quantity: 100 pcs
EAN code for a transport packaging: 3838895869924
Transport packaging weight: 2,16 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 4,568 dm³
Pallet quantity: 15.600 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Da
Width: 5,2 mm
Material insulation body: Thermoplastic
Rated current In: 24 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 3
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Spring clamp connection
Rated voltage: 800 V
Colour: Grey
Height: 68,4 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): −40 °C
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²
Connectable conductor cross section multi-wired(Max): 4 mm²
Operating temperature(Max): 110 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 2,5 mm²

ETIM klasifikacija – različica 9.0
