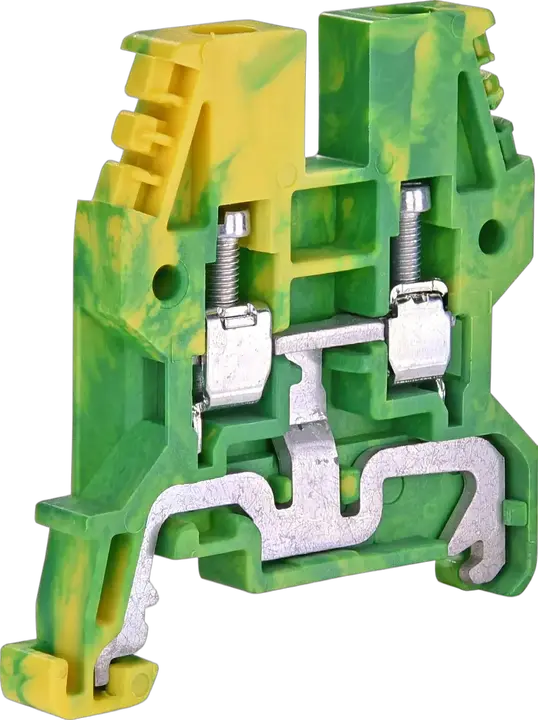

ESC-TEO.4 Ozemljitveni priključek

Zaloga status Na zalogi

ETI koda:: 003903067
Kataloška skupina:: ES vijačne vrstne sponke
Način montaže:: Montaža na pritrdilno letev TH 35
Opis tipa:: ES Vijačne vrstne sponke
Stopnja:: Enojna
Barva:: Rumena, Zelena
Nazivni presek:: 4 mm²
Nazivna impulzna vzdržna napetost Uimp:: 8 kV
Presek golega vodnika:: 2-6 mm²
Povezovalni mostič:: No
Zaključna ploščica potrebna:: Yes

Pribor

Produkt

EAN code for a single product: 3838895861263
Neto teža izdelka: 14,6 g
Net width: 6,5 mm
Net height: 49,8 mm
Net depth: 51,5 mm
Stock unit of measure: pcs

Transportna embalaža

Transport packaging quantity: 50 pcs
EAN code for a transport packaging: 3838895788638
Transport packaging weight: 0,785 kg
Transport Packaging Dimensions Height: 150 mm
Transport Packaging Dimensions Width: 70 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,575 dm³
Pallet quantity: 28.000 pcs
Customs tariff: 85369010

Width: 6,5 mm
Material insulation body: Thermoplastic
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Screw connection
Colour: Green/yellow
Height: 52 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): −40 °C
Connectable conductor cross section solid-core(Max): 6 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 6 mm²
Connectable conductor cross section multi-wired(Max): 6 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 4 mm²

ETIM klasifikacija – različica 9.0
