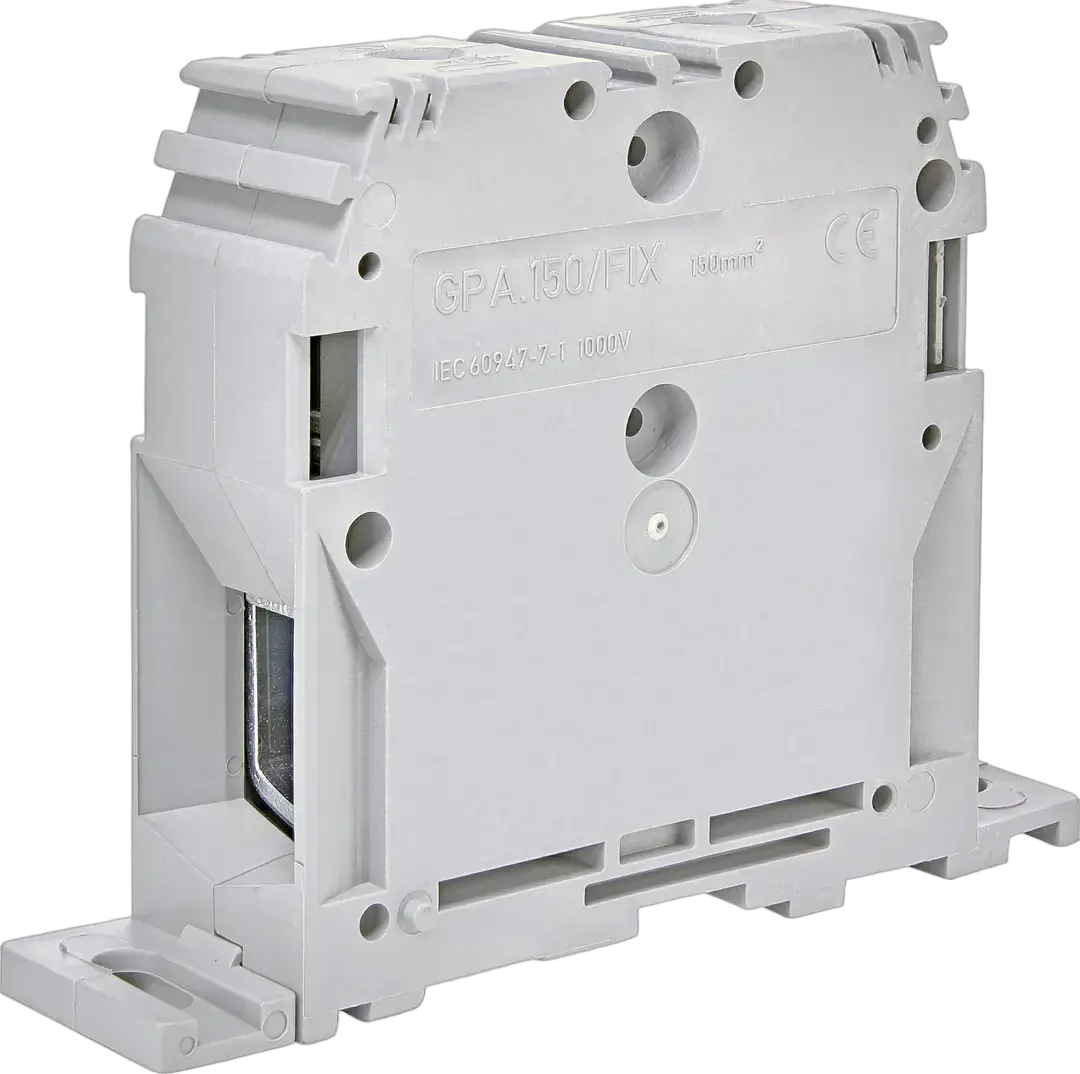

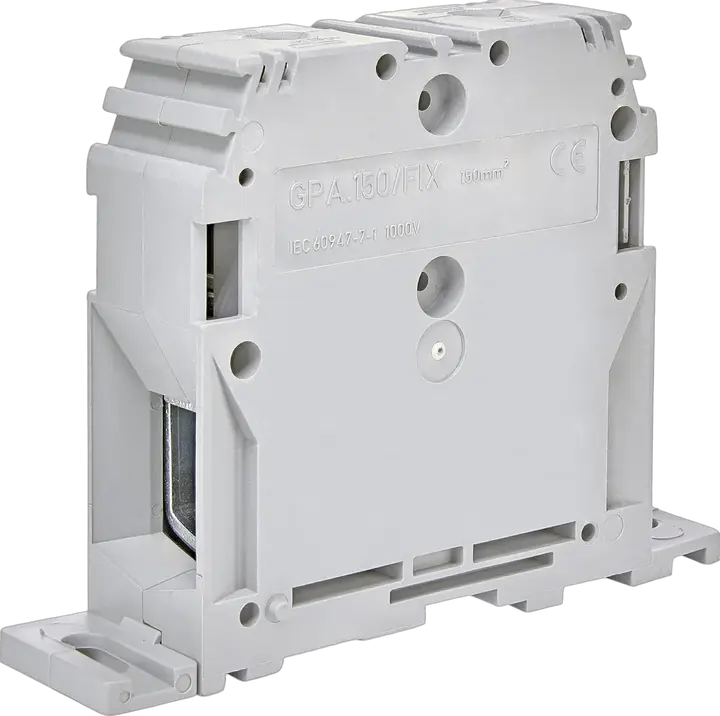

ESC-GPA.150/FIX Vrstna sponka

Zaloga status Na zalogi

ETI koda:: 003903213
Nazivna AC napetost:: 1000 V
Nazivna enosmerna napetost:: 1000 V
Kataloška skupina:: ES vijačne vrstne sponke
Način montaže:: Montaža na montažno ploščo
Opis tipa:: ES Vijačne vrstne sponke
Stopnja:: Enojna
Barva:: Siva
Nazivni presek:: 150 mm²
Nazivna impulzna vzdržna napetost Uimp:: 12 kV
Največji tok pri nazivnem preseku vodnika:: 309 mm²
Presek golega vodnika:: 50-185 mm²
Povezovalni mostič:: No
Zaključna ploščica potrebna:: No

Pribor

Produkt

EAN code for a single product: 3838895860419
Neto teža izdelka: 0,339 kg
Net width: 35 mm
Net height: 122 mm
Net depth: 93,74 mm
Stock unit of measure: pcs

Transportna embalaža

Transport packaging quantity: 8 pcs
EAN code for a transport packaging: 3838895830610
Transport packaging weight: 2,72 kg
Transport Packaging Dimensions Height: 115 mm
Transport Packaging Dimensions Width: 245 mm
Transport Packaging Dimensions Depth: 155 mm
Transport packaging volume: 4,226 dm³
Pallet quantity: 1.344 pcs
Customs tariff: 85369010

Width: 31 mm
Material insulation body: Thermoplastic
Rated current In: 309 A
Mounting method: Direct mounting
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Type of electrical connection 2: Screw connection
Rated voltage: 1.000 V
Colour: Grey
Height: 94 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 50 mm²
Connectable conductor cross section multi-wired(Min): 50 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 50 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 50 mm²
Operating temperature(Min): −40 °C
Connectable conductor cross section solid-core(Max): 185 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 150 mm²
Connectable conductor cross section multi-wired(Max): 185 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 150 mm²

ETIM klasifikacija – različica 9.0
