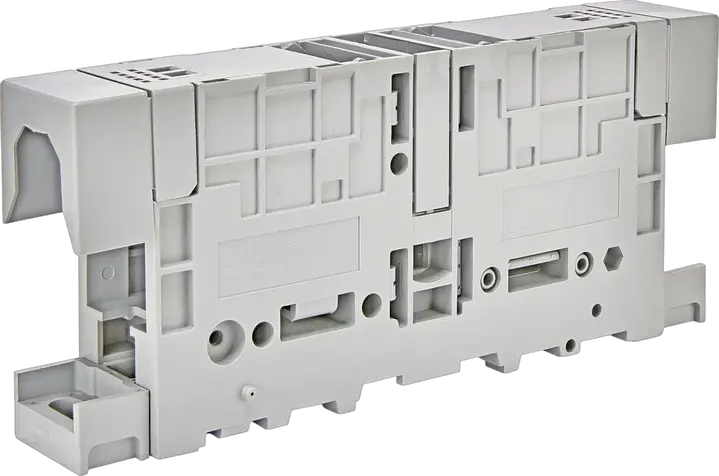

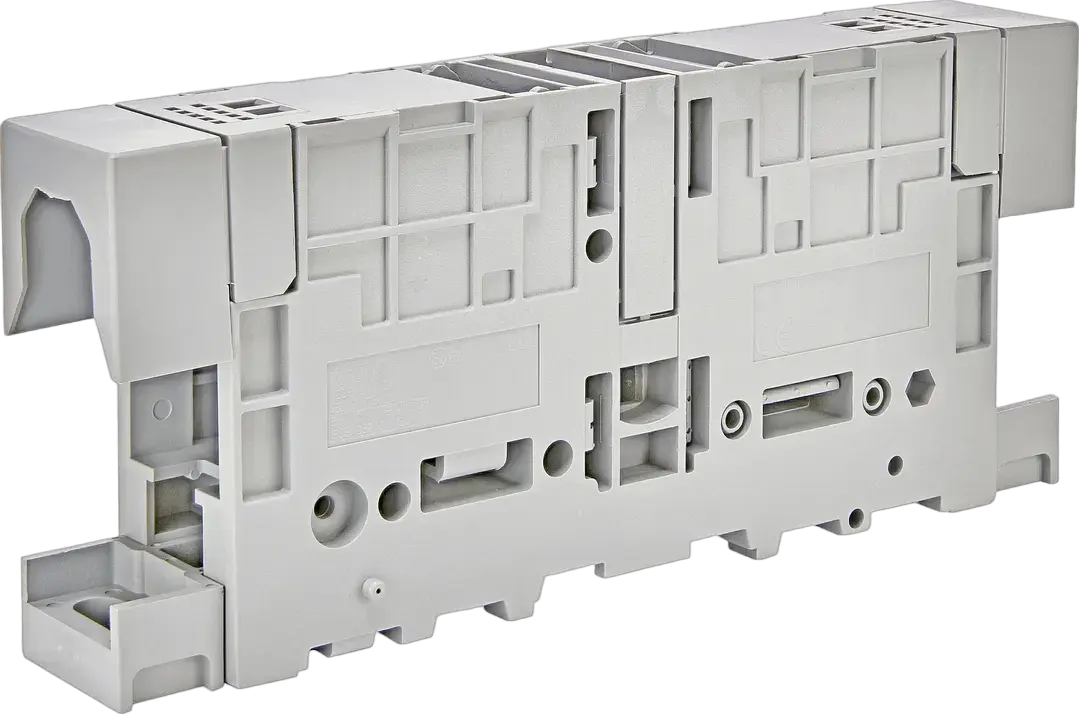

ESC-GPM.95/FIX Vrstna sponka

Zaloga status Na zalogi

ETI koda:: 003903215
Nazivna AC napetost:: 1000 V
Nazivna enosmerna napetost:: 1000 V
Kataloška skupina:: ES vijačne vrstne sponke
Način montaže:: Montaža na montažno ploščo
Opis tipa:: ES Vijačne vrstne sponke
Stopnja:: Enojna
Barva:: Siva
Nazivni presek:: 95 mm²
Nazivna impulzna vzdržna napetost Uimp:: 12 kV
Največji tok pri nazivnem preseku vodnika:: 232 mm²
Največji tok pri maksimalnem preseku vodnika:: 320 mm²
Presek golega vodnika:: 50-185 mm²
Povezovalni mostič:: No
Zaključna ploščica potrebna:: No

Pribor

Produkt

EAN code for a single product: 3838895860433
Neto teža izdelka: 0,225 kg
Net width: 36 mm
Net height: 176 mm
Net depth: 75,7 mm
Stock unit of measure: pcs

Transportna embalaža

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895830641
Transport packaging weight: 2,53 kg
Transport Packaging Dimensions Height: 140 mm
Transport Packaging Dimensions Width: 307 mm
Transport Packaging Dimensions Depth: 182 mm
Transport packaging volume: 7,822 dm³
Pallet quantity: 840 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Da
Width: 32 mm
Material insulation body: Thermoplastic
Rated current In: 320 A
Mounting method: Direct mounting
Number of levels: 1
Type of electrical connection 1: Bolt connection
Number of clamp positions per level: 2
Type of electrical connection 2: Bolt connection
Rated voltage: 1.000 V
Colour: Grey
Height: 76 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section fine-strand with cable end sleeve(Min): 35 mm²
Operating temperature(Min): −40 °C
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 150 mm²

ETIM klasifikacija – različica 9.0
