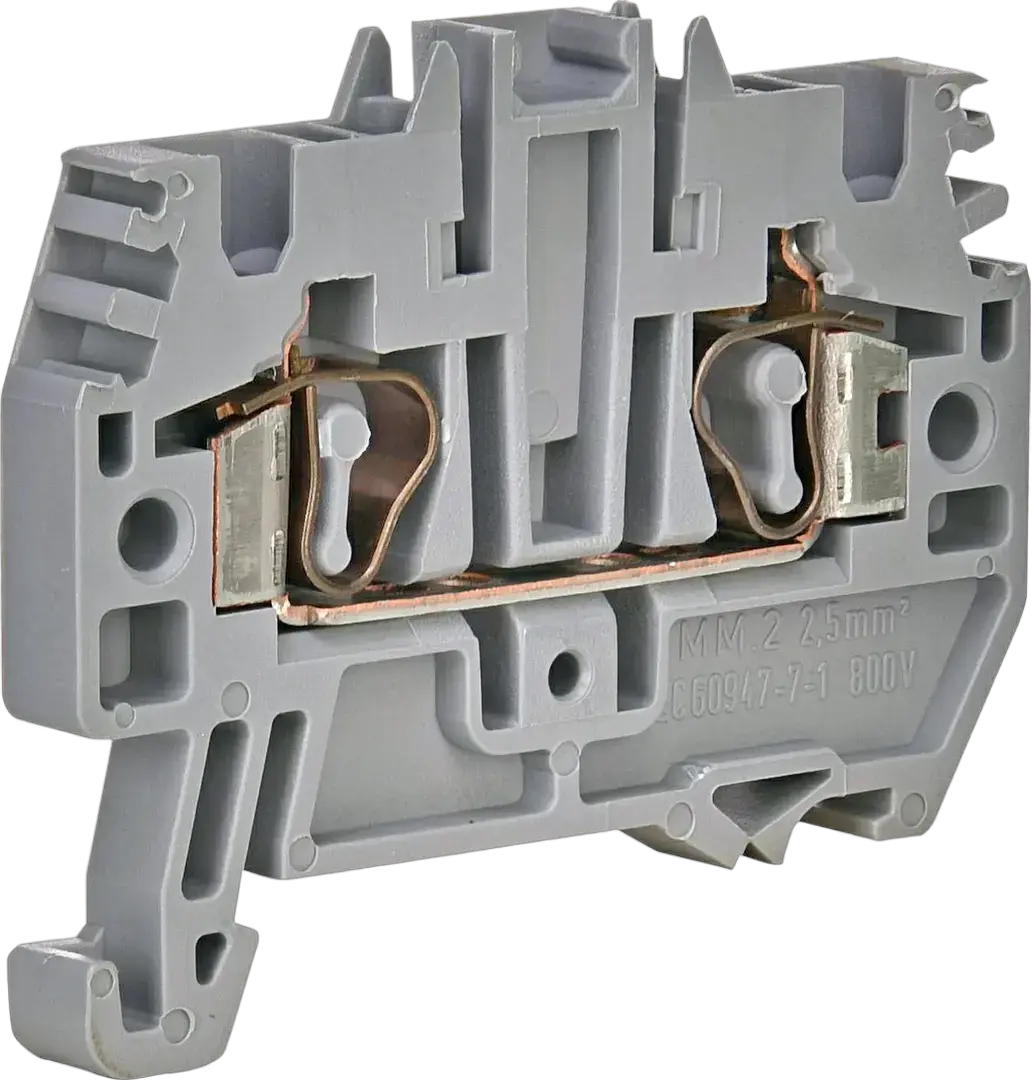

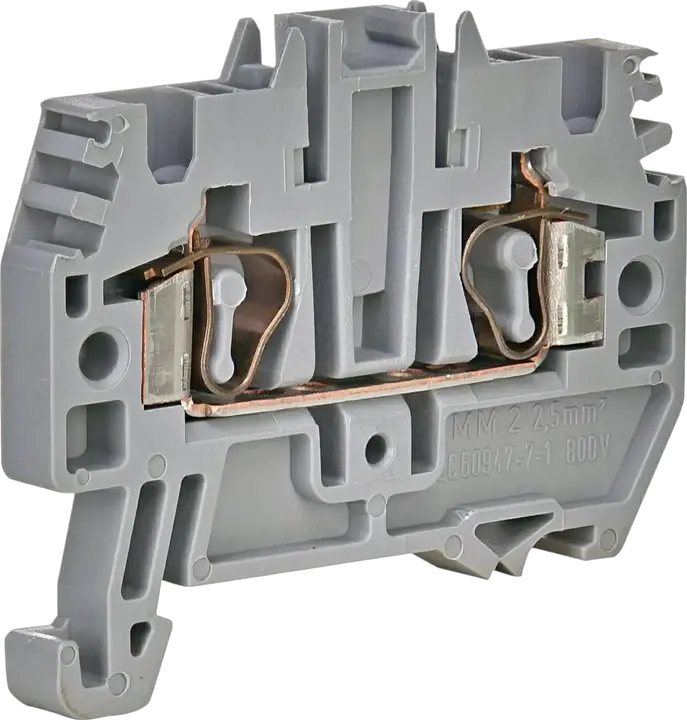

ESP-HMM.2 Vrstna sponka

Zaloga status Na zalogi

ETI koda:: 003903131
Nazivna AC napetost:: 800 V
Nazivna enosmerna napetost:: 800 V
Kataloška skupina:: ES vzmetne vrstne sponke
Način montaže:: Montaža na pritrdilno letev TH 35
Opis tipa:: ES Vzmetne vrstne sponke
Stopnja:: Enojna
Barva:: Siva
Nazivni presek:: 2.5 mm²
Nazivna impulzna vzdržna napetost Uimp:: 8 kV
Največji tok pri nazivnem preseku vodnika:: 24 mm²
Presek golega vodnika:: 0.2-4 mm²
Povezovalni mostič:: Yes
Zaključna ploščica potrebna:: Yes

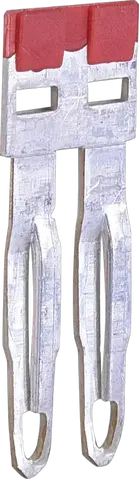

Pribor

Produkt

EAN code for a single product: 3838895861928
Neto teža izdelka: 7 g
Net width: 5,2 mm
Net height: 50 mm
Net depth: 40,5 mm
Stock unit of measure: pcs

Transportna embalaža

Transport packaging quantity: 80 pcs
EAN code for a transport packaging: 3838895789253
Transport packaging weight: 0,633 kg
Transport Packaging Dimensions Height: 70 mm
Transport Packaging Dimensions Width: 150 mm
Transport Packaging Dimensions Depth: 150 mm
Transport packaging volume: 1,575 dm³
Pallet quantity: 44.800 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Da
Width: 5,2 mm
Material insulation body: Thermoplastic
Rated current In: 24 A
Mounting method: DIN rail (top hat rail) 35 mm
Number of levels: 1
Type of electrical connection 1: Spring clamp connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Spring clamp connection
Rated voltage: 800 V
Colour: Grey
Height: 41 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 0,2 mm²
Connectable conductor cross section multi-wired(Min): 0,2 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 0,2 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 0,2 mm²
Operating temperature(Min): −40 °C
Connectable conductor cross section solid-core(Max): 4 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 4 mm²
Connectable conductor cross section multi-wired(Max): 4 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 2,5 mm²

ETIM klasifikacija – različica 9.0
