EB2R 250/3L 250A 3P 004671582

Specifikacija

Koda izdelka:
004671582
Opis:
EB2R 250/3L 250A 3P
Funkcija:
MCCB+RCD
Nazivni tok (A):
250
Število polov:
3
Tip priključitve:
Sprednji kontakt
Standardi:
60947
Nazivna impulzna vzdržna napetost Uimp (kV):
8
Nazivna izklopna kratkostična zmogljivost pri 415V Icu/Ics (kA):
25/19
Nazivna delovna napetost (V AC):
525V
Nazivna napetost (V DC):
n.a.
Nazivna izolacijska napetost (V):
800
Termo nastavitve:
0,63-1
Magnetne nastavitve:
fixed
Nastavljivo ali fiksno:
Nastavljiv

Dokumenti

Produkt

EAN koda izdelka
Teža izdelka
1.5 kg
Carinska tarifa
85362090

Osnovno pakiranje

Osnovno pakiranje
1
EAN koda osnovnega pakiranja
3838895502630
Teža osnovnega pakiranja
1.5 kg
Volumen osnovnega pakiranja
1.2

Transportno pakiranje

Pakirna količina
1
EAN koda odpremnega pakiranja
3838895502630
Teža odpremnega pakiranja
1.5 kg
Volumen pakirne embalaže
1.2
Odpremna količina
533
Volumen paletnega pakiranja
639.6

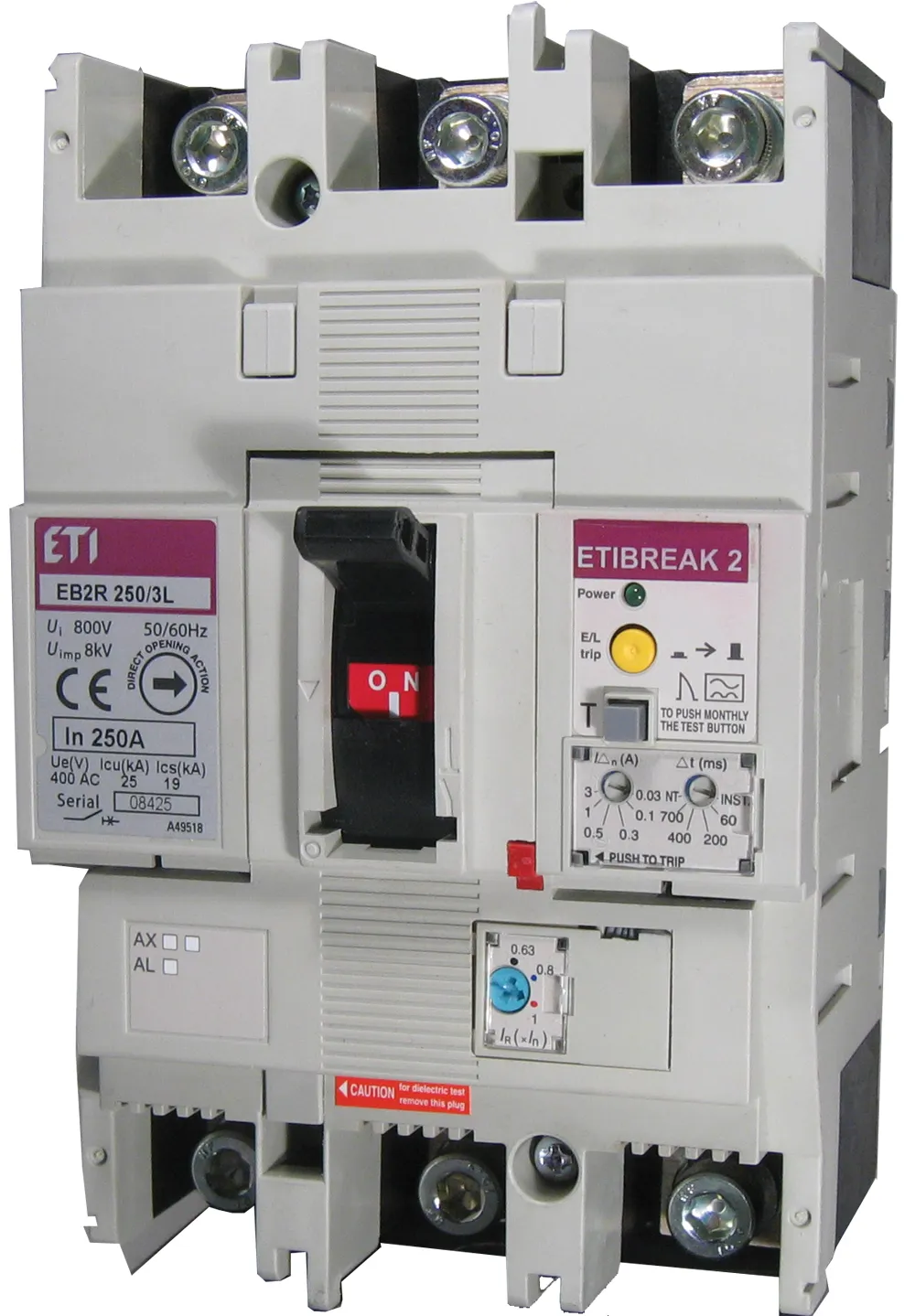

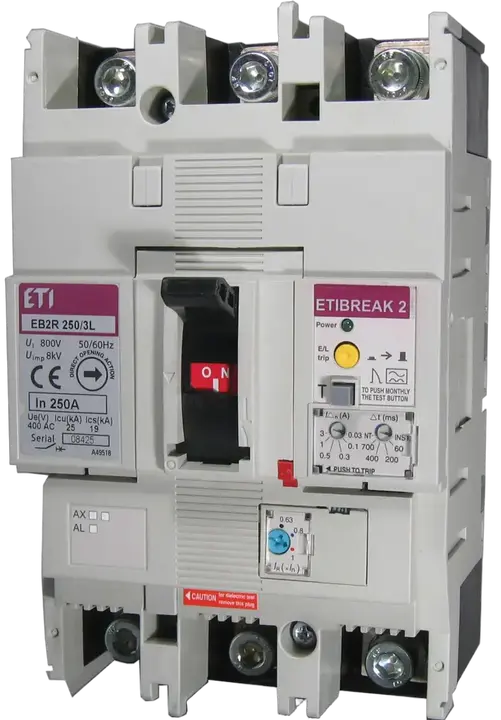

Slike in diagrami

Programska oprema

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
004671582Molded Case Circuit Breaker, EB2R 250/3L 250A 3PETIBREAKMCCB with residual current protectionEB2REB2REB2REB2R 250Moulded case circuit breakers and disconnectorsCircuit breakers with residual protectionEB2R 250/3L 250AFunction MCCB+RCDShort circuit capacity 25kA 19kARated current 250AFrame size 250ARelease system - thermal/magnetic 0,63-1 12No. Of poles 3IP rating IP20Standards 60947Connection type front connectionRated impulse withstand voltage Uimp 8kVRated operational voltage? 525VV ACRated insulation voltage 800VRated short-circuit breaking capacity at 415V Icu/Ics 25kA 19kARated operational voltage? n.a.V DCThermal adjustment 0,63-1Magnetic adjustment fixedAdjustable or fixed adjustableMolded Case Circuit Breaker EB2R
