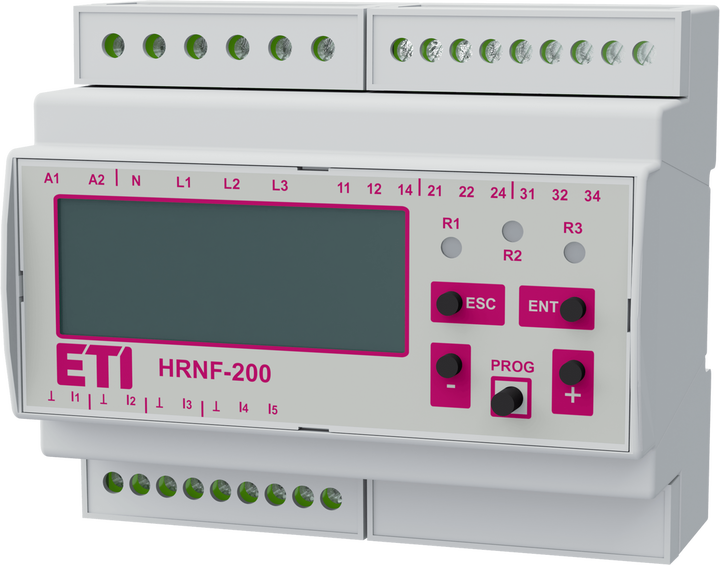

HRNF-200 Nadzorni rele

Zaloga status Na zalogi

ETI koda:: 002472250
Funkcija:: Monitoring and Control relays
Napajalna napetost:: 110-230 V
Tip nadzora:: Nesimetrija napetosti, Izpad faze, Frekvenčno, Izpad faze in nevtralnega vodnika
Število kontaktov:: 3
Vrsta napetosti:: AC/DC
Maksimalna obremenitev AC1:: 1.250 VA
Nazivni tok:: 5 A
Tip kontaktov:: 1xCO
Število vhodov:: 5
DC Nazivna krmilna napajalna napetost Uc:: 24-48 V

Produkt

Neto teža izdelka: 0,255 kg
Net width: 106 mm
Net height: 92 mm
Net depth: 62 mm
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400181466
Basic packaging weight: 0,34 kg
Basic Packaging Dimensions Height: 100 mm
Basic Packaging Dimensions Width: 120 mm
Basic Packaging Dimensions Depth: 130 mm
Basic packaging volume: 1,56 dm³

Transportna embalaža

Transport packaging quantity: 36 pcs
EAN code for a transport packaging: 3838400181459
Transport packaging weight: 12,6 kg
Transport Packaging Dimensions Height: 400 mm
Transport Packaging Dimensions Width: 380 mm
Transport Packaging Dimensions Depth: 600 mm
Transport packaging volume: 91,2 dm³
Pallet quantity: 576 pcs
Customs tariff: 85364900

Single-phase under voltage possible: Da
External power supply required: Da
Width: 106 mm
Three-phase under voltage possible: Da
Single-phase hysteresis possible: Da
Voltage type (operating voltage): AC/DC
Voltage type (supply voltage): AC/DC
Three-phase over voltage possible: Da
Type of voltage measuring range: AC
Rated switch current: 5 A
Single-phase over voltage possible: Da
Depth: 91 mm
Three-phase hysteresis possible: Da
Type of electric connection: Screw connection
Number of contacts as change-over contact: 3
Height: 62 mm
Operating voltage AC 50 Hz(Min): 110 V
Operating voltage AC 60 Hz(Min): 110 V
Supply voltage AC 60 Hz(Min): 110 V
Voltage measuring range 2(Min): 400 V
Supply voltage DC(Min): 24 V
Operating voltage DC(Min): 24 V
Voltage measuring range 1(Min): 230 V
Supply voltage AC 50 Hz(Min): 110 V
Voltage measuring range 1(Max): 230 V
Supply voltage AC 50 Hz(Max): 230 V
Operating voltage AC 60 Hz(Max): 230 V
Supply voltage DC(Max): 48 V
Operating voltage AC 50 Hz(Max): 230 V
Voltage measuring range 2(Max): 400 V
Supply voltage AC 60 Hz(Max): 230 V
Operating voltage DC(Max): 48 V

ETIM klasifikacija – različica 9.0
