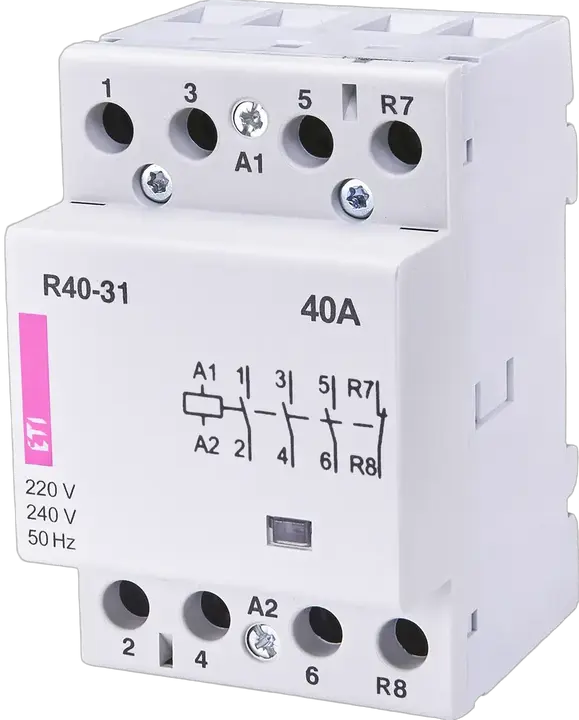

R 40-31 230V Modularni kontaktor

Zaloga status Na zalogi

ETI koda:: 002463420
Globina:: 60 mm
Nazivni delovni tok pri AC1:: 40 A
IP zaščita:: IP40
Tip diferenčnega toka:: AC
Opis tipa:: AC
Nazivni delovni tok Ie AC-1/AC-7a:: 40 A
Nazivna delovna napetost (V AC):: 440 V
Nazivna krmilna napetost Uc (V AC): 230:: 230 V
Tip toka:: AC
Nazivna frekvenca:: 50/60 Hz
Št. NO kontaktov:: 3
Število NC kontaktov:: 1
Funkcija:: Modularni kontaktorji
Način montaže:: Montaža na DIN letev
Kataloška skupina:: R

Pribor

Produkt

EAN code for a single product: 5904722903555
Neto teža izdelka: 0,36 kg
Net width: 54 mm
Net height: 88,8 mm
Net depth: 65 mm
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 4 pcs
EAN code for a basic packaging: 3838895141211
Basic packaging weight: 1,44 kg
Basic Packaging Dimensions Height: 216 mm
Basic Packaging Dimensions Width: 90 mm
Basic Packaging Dimensions Depth: 73 mm
Basic packaging volume: 1,419 dm³

Transportna embalaža

Transport packaging quantity: 40 pcs
EAN code for a transport packaging: 3838895162155
Transport packaging weight: 14,65 kg
Transport Packaging Dimensions Height: 190 mm
Transport Packaging Dimensions Width: 225 mm
Transport Packaging Dimensions Depth: 385 mm
Transport packaging volume: 16,459 dm³
Pallet quantity: 2.160 pcs
Customs tariff: 85364900

Additional equipment possible: Da
Voltage type (excitation voltage): AC
Built-in depth: 60 mm
Number of contacts as normally closed contact: 1
Max. load fluorescent lamp: 2.975 VA
Voltage type (operating voltage): AC/DC
Degree of protection (IP): IP20
Max. load fluorescent lamp (parallel compensated): 2.805 VA
Utilization category according to EN IEC 60947-4-1: AC-1
Max. load fluorescent lamp (Duo circuit): 5.280 VA
Number of contacts as normally open contact: 3
Rated operation current: 40 A
Max. incandescent lamp load: 6.000 W
Width in number of modular spacings: 3
Rated excitation voltage(Min): 230 V
Rated operating voltage(Min): 24 V
Rated operating voltage(Max): 440 V
Rated excitation voltage(Max): 230 V

ETIM klasifikacija – različica 9.0
