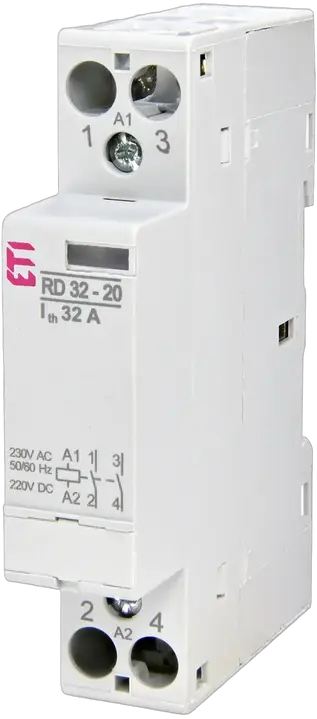

RD 32-20 230V AC/DC Modularni kontaktor

Zaloga status Na zalogi

ETI koda:: 002464077
Nazivni delovni tok pri AC1:: 32 A
Opis tipa:: AC/DC
Nazivni delovni tok Ie AC-1/AC-7a:: 32 A
Nazivna delovna napetost (V AC):: 230 V
Nazivna krmilna napetost Uc (V AC): 230:: 230 V
Tip toka:: AC, DC
Nazivna frekvenca:: 50/60 Hz
Št. NO kontaktov:: 2
Funkcija:: Modularni kontaktorji
Kataloška skupina:: RD

Pribor

Produkt

EAN code for a single product: 3838400014405
Neto teža izdelka: 0,13 kg
Net width: 17,5 mm
Net height: 85 mm
Net depth: 65,2 mm
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 10 pcs
EAN code for a basic packaging: 3838895867586
Basic packaging weight: 1,3 kg
Basic Packaging Dimensions Height: 74 mm
Basic Packaging Dimensions Width: 93 mm
Basic Packaging Dimensions Depth: 180 mm
Basic packaging volume: 1,239 dm³

Transportna embalaža

Transport packaging quantity: 80 pcs
EAN code for a transport packaging: 3838895867593
Transport packaging weight: 10,4 kg
Transport Packaging Dimensions Height: 165 mm
Transport Packaging Dimensions Width: 195 mm
Transport Packaging Dimensions Depth: 445 mm
Transport packaging volume: 14,318 dm³
Pallet quantity: 3.840 pcs
Customs tariff: 85364900

Additional equipment possible: Da
Voltage type (excitation voltage): AC/DC
Built-in depth: 60 mm
Voltage type (operating voltage): AC/DC
Degree of protection (IP): IP20
Utilization category according to EN IEC 60947-4-1: AC-1
Number of contacts as normally open contact: 2
Rated operation current: 32 A
Max. incandescent lamp load: 2.500 W
Width in number of modular spacings: 1
Rated excitation voltage(Min): 230 V
Rated operating voltage(Min): 24 V
Rated operating voltage(Max): 230 V
Rated excitation voltage(Max): 230 V
