004661880

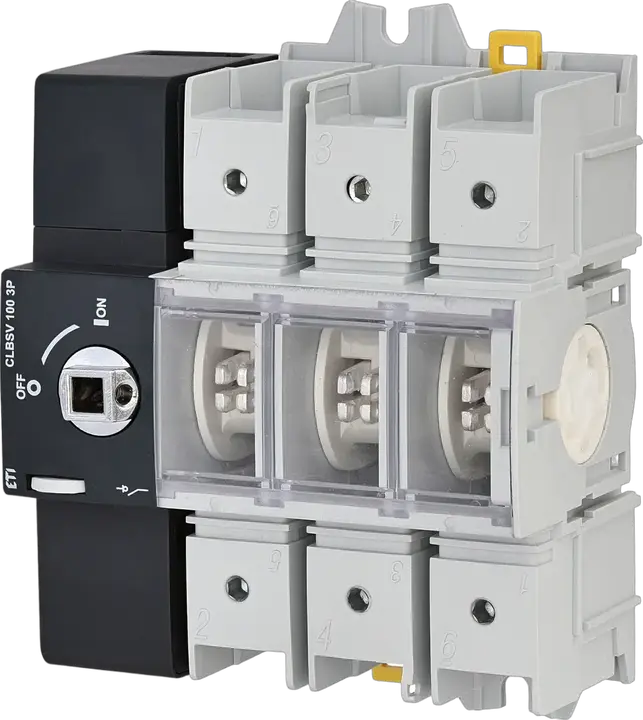

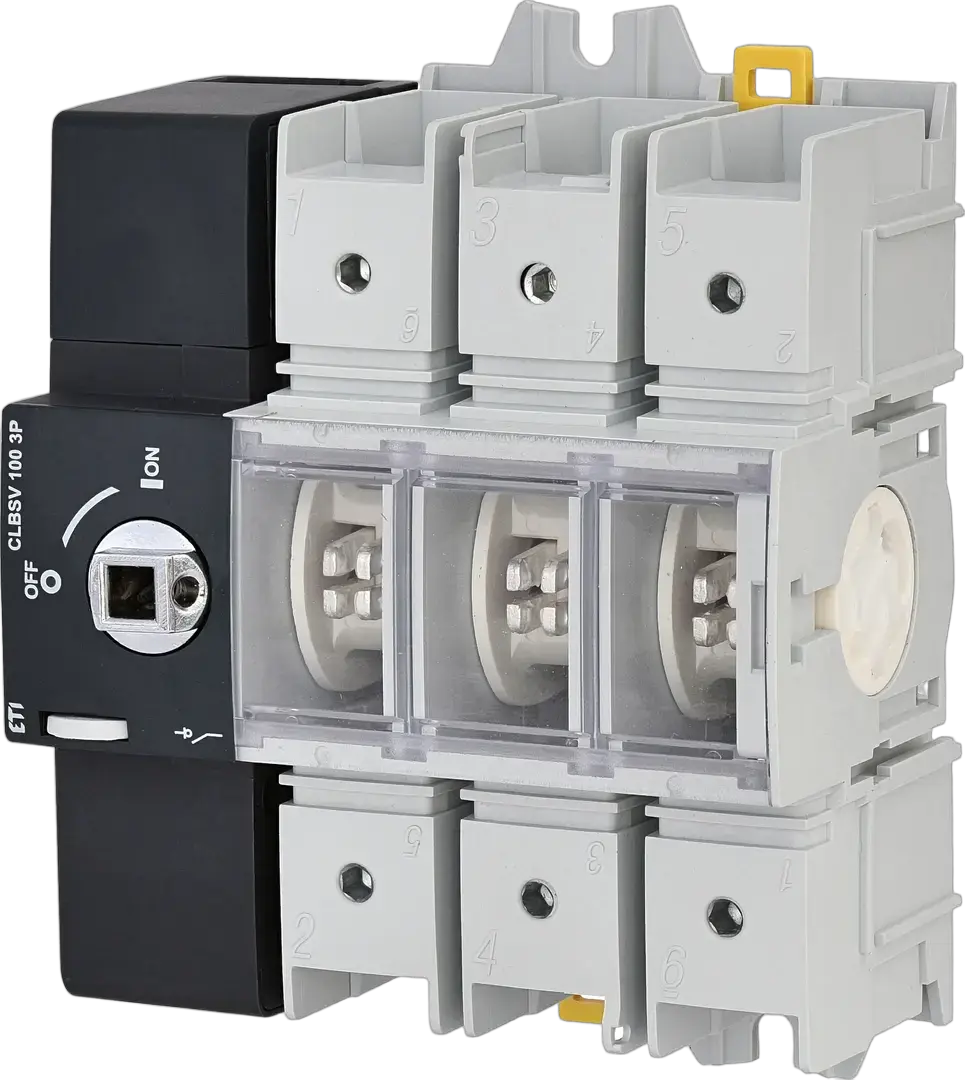

CLBSV 100 3P Ločilno stikalo
Zaloga
status
Na zalogi
- ETI koda:
- 004661880
- Tip:
- DIN letve montirane
- Funkcija:
- 0-I
- Število polov:
- 3
- Opis tipa:
- DIN letve montirane
- Nazivni tok:
- 100 A
- Kataloška skupina:
- Kompaktno bremensko ločilno stikalo CLBSV
6 Dokumenti
21 Logistika
Produkt
- Neto teža izdelka
- 0,837 kg
- Net width
- 109 mm
- Net height
- 142,9 mm
- Net depth
- 69,9 mm
- Stock unit of measure
- pcs
Osnovna embalaža
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895823964
- Basic packaging weight
- 0,837 kg
- Basic Packaging Dimensions Height
- 165 mm
- Basic Packaging Dimensions Width
- 91 mm
- Basic Packaging Dimensions Depth
- 184 mm
- Basic packaging volume
- 2,763 dm³
Transportna embalaža
- Transport packaging quantity
- 28 pcs
- EAN code for a transport packaging
- 3838895823971
- Transport packaging weight
- 23,436 kg
- Transport Packaging Dimensions Height
- 400 mm
- Transport Packaging Dimensions Width
- 300 mm
- Transport Packaging Dimensions Depth
- 300 mm
- Transport packaging volume
- 36 dm³
- Pallet quantity
- 420 pcs
- Customs tariff
- 85365080
11 ETIM
- Version as maintenance-/service switch
- Da
- Max. rated operation voltage Ue AC
- 800 V
- Suitable for floor mounting
- Da
- Rated permanent current Iu
- 100 A
- Type of control element
- Door coupling rotary drive
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Rated operation power at AC-23, 400 V
- 45 kW
- Version as main switch
- Da
ETIM klasifikacija – različica 9.0
1 Programska oprema in gonilniki
Programska oprema je zagotovljena takšna, kot je, brez kakršnihkoli jamstev ali garancij. Avtor ni zavezan zagotavljati podpore, storitev, popravkov ali nadgradenj brezplačnim programom ali gonilnikom.
18 Oznake
004661880Ločilno stikaloCLBSV 100 3PETISWITCHCompact Load Break SwitchCLBSV - visible contactsCLBSV body(no handle included) 3 POLES, 0-1, 100 - 160 ACLBSV body(no handle included) 3 POLES, 0-1, 100 - 160 ACLBSV body(no handle included) 3 POLES, 0-1, 100 - 160 AInternacionalnoModularna, kompaktna in odmična stikala ETISWITCHKompaktna bremenska ločilna stikala CLBSOpis tipa: DIN letve montiraneFunkcija: 0-IŠtevilo polov: 3Nazivni tok: 100 A/100 AKataloška skupina: Kompaktno bremensko ločilno stikalo CLBSVLočilno stikalo Funkcija: 0-I Število polov: 3 Opis tipa: DIN letve montirane Nazivni tok: 100 A/100 A Kataloška skupina: Kompaktno bremensko ločilno stikalo CLBSV
