004661989

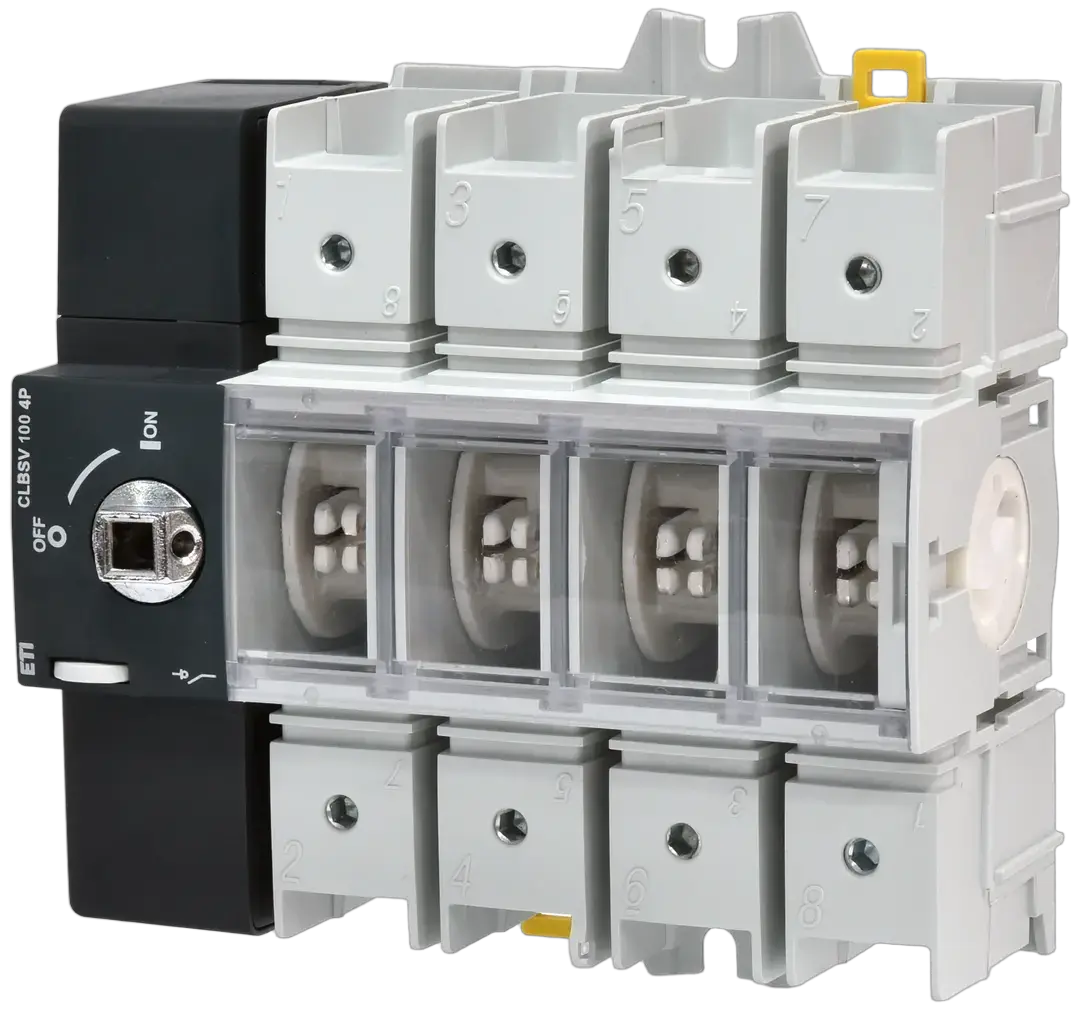

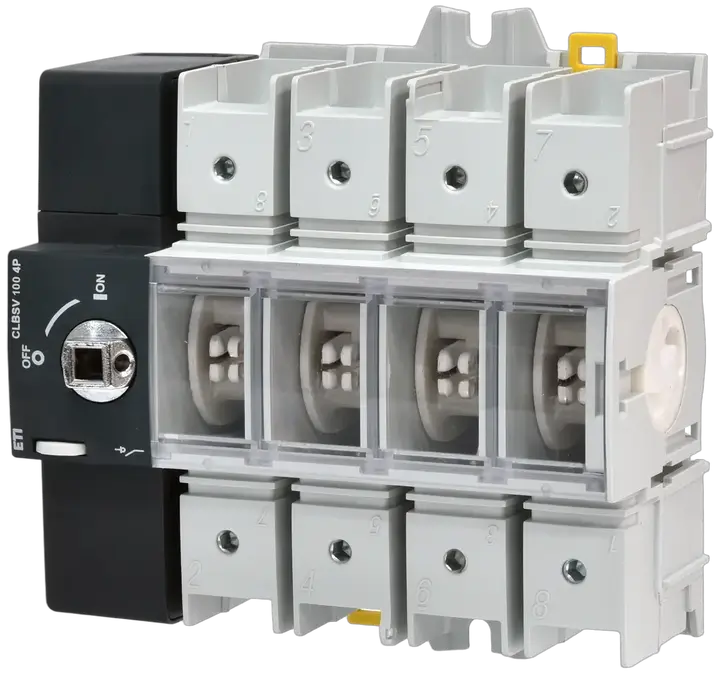

CLBSV 100 4P Ločilno stikalo
Zaloga
status
V prihodu
- ETI koda:
- 004661989
- Funkcija:
- 0-I
- Število polov:
- 4
- Opis tipa:
- DIN letve montirane
- Nazivni tok:
- 100 A
- Kataloška skupina:
- Kompaktno bremensko ločilno stikalo CLBSV
21 Logistika
Produkt
- Neto teža izdelka
- 1 kg
- Net width
- 135 mm
- Net height
- 142,9 mm
- Net depth
- 69,9 mm
- Stock unit of measure
- pcs
Osnovna embalaža
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400120151
- Basic packaging weight
- 1 kg
- Basic Packaging Dimensions Height
- 180 mm
- Basic Packaging Dimensions Width
- 95 mm
- Basic Packaging Dimensions Depth
- 160 mm
- Basic packaging volume
- 2,736 dm³
Transportna embalaža
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838400120144
- Transport packaging weight
- 28 kg
- Transport Packaging Dimensions Height
- 400 mm
- Transport Packaging Dimensions Width
- 300 mm
- Transport Packaging Dimensions Depth
- 300 mm
- Transport packaging volume
- 36 dm³
- Pallet quantity
- 27 pcs
- Customs tariff
- 85365080
6 ETIM
- Version as maintenance-/service switch
- ✓
- Max. rated operation voltage Ue AC
- 800 V
- Rated permanent current Iu
- 100 A
- Number of poles
- 4
- Rated operation power at AC-23, 400 V
- 45 kW
- Version as main switch
- ✓
ETIM klasifikacija – različica 9.0
