002652004

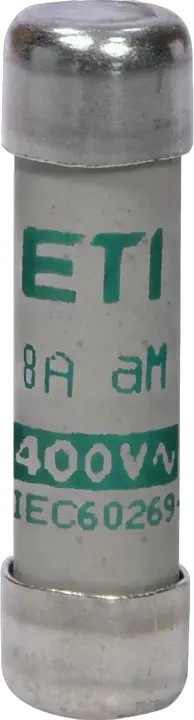

CH8x32 aM 8A/400V Talilni vložek

Zaloga status Na zalogi

ETI koda:: 002652004
Opis tipa:: CH
Tip varovalke:: CH
Velikost:: 8x32
Nazivni tok:: 8 A
Nazivna AC napetost:: 400 V
Karakteristika:: aM
AC Izklopna zmogljivost:: 20 kA
Aplikacije:: Za zaščito relejev, kontaktorjev in motorjev v primeru kratkega stika
Izgubna moč:: 0,47 W
Standardi:: IEC 60269-1, IEC 60269-2

Pribor

Produkt

EAN code for a single product: 3838400115201
Neto teža izdelka: 0,004 kg
Net width: 8,5 mm
Net height: 32 mm
Net depth: 8,5 mm
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 10 pcs
EAN code for a basic packaging: 3838400095428
Basic packaging weight: 0,044 kg
Basic Packaging Dimensions Height: 10,5 mm
Basic Packaging Dimensions Width: 70 mm
Basic Packaging Dimensions Depth: 46 mm
Basic packaging volume: 0,034 dm³

Transportna embalaža

Transport packaging quantity: 2.500 pcs
EAN code for a transport packaging: 3838400095435
Transport packaging weight: 11,382 kg
Transport Packaging Dimensions Height: 140 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 390 mm
Transport packaging volume: 15,834 dm³
Pallet quantity: 130.000 pcs
Customs tariff: 85361010

Voltage type: AC
Size: 8x32 mm
Breaking capacity: 20 kA
Rated voltage: 400 V
Rated current: 8 A
Utilization category: aM (switchgear protection)
Rated operating frequency(Min): 50 Hz
Rated operating frequency(Max): 50 Hz

ETIM klasifikacija – različica 9.0
