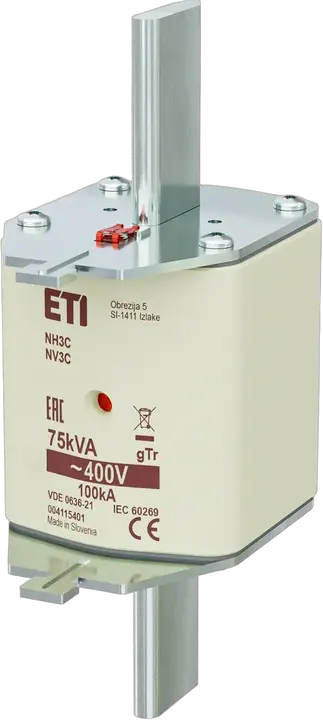

NH3C gTr 108A/400V/75kVA Talilni vložek

Zaloga status Na zalogi

ETI koda:: 004115401
Tip varovalke:: NH
Velikost:: NH3C
Transformator:: 75 kVA
Karakteristika:: gTr
Indikator:: Kombinirani indikator stanja varovalke
Nazivna AC napetost:: 400 V
AC Izklopna zmogljivost:: 100 kA
Izgubna moč:: 9,5 W
Talilni Joulov integral (A2s):: 30.000
Skupni Joulov integral (A2s):: 120.000
Standardi:: VDE 0636-21
Aplikacije:: Zaščita transformatorjev

Pribor

Produkt

EAN code for a single product: 3838400038241
Neto teža izdelka: 585 g
Net width: 54 mm
Net height: 150,2 mm
Net depth: 84,4 mm
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895612674
Basic packaging weight: 1,825 kg
Basic Packaging Dimensions Height: 0,089 m
Basic Packaging Dimensions Width: 0,169 m
Basic Packaging Dimensions Depth: 0,153 m
Basic packaging volume: 0,002 m³

Transportna embalaža

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895401148
Transport packaging weight: 7,65 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 624 pcs
Customs tariff: 85361090

Rated switching capacity AC: 100 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH3C
Rated voltage AC: 400
Power loss at rated current: 9,5 W
Type of fuse status indicator: Combination fuse status indicator
Rated current: 108 A
Utilization category: gTr (Transformer protection)

ETIM klasifikacija – različica 9.0

Eplan
