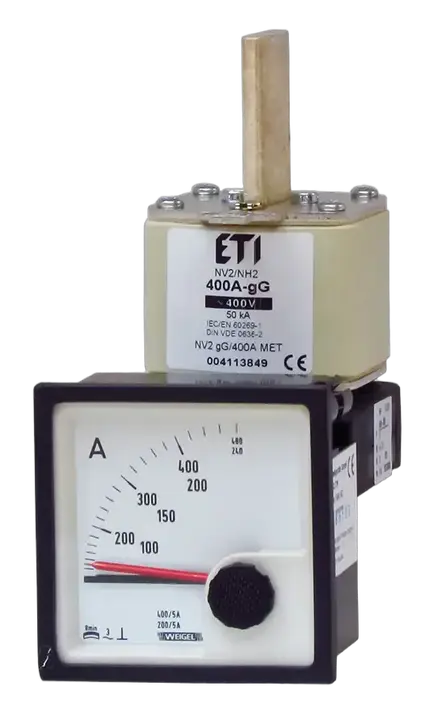

NH3 gG 250A/400V MET Talilni vložek

Zaloga status Po naročilu

ETI koda:: 004113852
Tip varovalke:: NH
Velikost:: NH3
Nazivni tok:: 250 A
Karakteristika:: gG
Indikator:: Indikator stanja zgornjega talilnega vložka
Nazivna AC napetost:: 400 V
AC Izklopna zmogljivost:: 50 kA
Izgubna moč:: 17 W
Standardi:: IEC EN 60269-1
Aplikacije:: As metering fuse with strip fuse switch disconnector and fuse switch disconnector

Pribor

Produkt

Neto teža izdelka: 650 g
Net width: 66 mm
Net height: 151,5 mm
Net depth: 83,6 mm
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895618539
Basic packaging weight: 0,69 kg
Basic Packaging Dimensions Height: 0,152 m
Basic Packaging Dimensions Width: 0,09 m
Basic Packaging Dimensions Depth: 0,074 m
Basic packaging volume: 0,001 m³

Transportna embalaža

Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895618546
Transport packaging weight: 8,632 kg
Transport Packaging Dimensions Height: 0,255 m
Transport Packaging Dimensions Width: 0,295 m
Transport Packaging Dimensions Depth: 0,235 m
Transport packaging volume: 0,018 m³
Pallet quantity: 624 pcs
Customs tariff: 85361090

Rated switching capacity AC: 50 kA
Voltage type: AC
Fuse construction type according to IEC 60269: NH3
Rated voltage AC: 400
Power loss at rated current: 17 W
Type of fuse status indicator: Top fuse status indicator
Rated current: 250 A
Utilization category: gG (cable protection/equipment protection)

ETIM klasifikacija – različica 9.0
