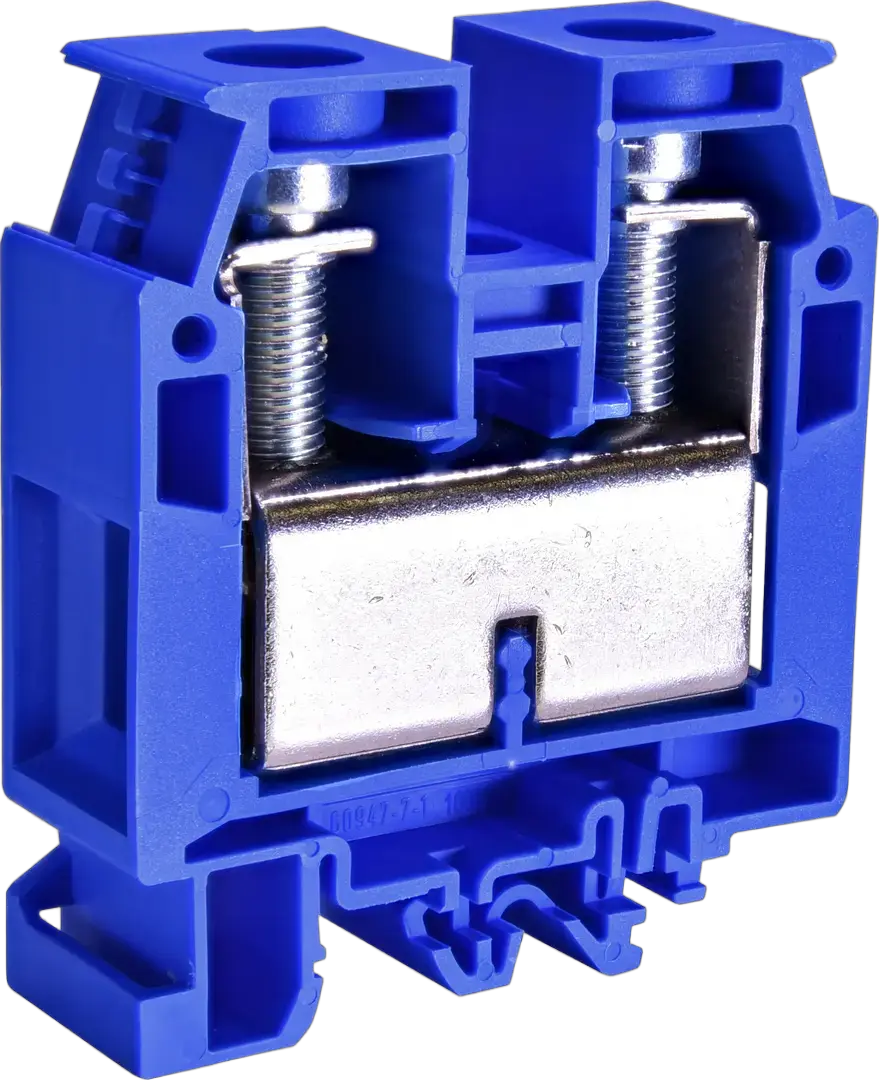

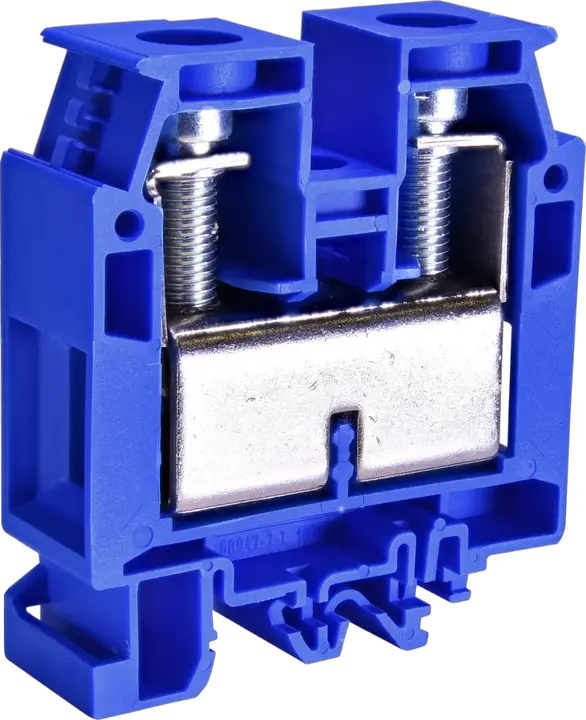

ESC-CBD.70B N sponka

Zaloga status Na zalogi

ETI koda:: 003903245
Nazivna AC napetost:: 1000 V
Nazivna enosmerna napetost:: 1000 V
Kataloška skupina:: ES vijačne vrstne sponke
Način montaže:: Montaža na pritrdilno letev TH 35
Opis tipa:: ES Vijačne vrstne sponke
Stopnja:: Enojna
Barva:: Modra
Nazivni presek:: 70 mm²
Nazivna impulzna vzdržna napetost Uimp:: 12 kV
Največji tok pri nazivnem preseku vodnika:: 192 mm²
Povezovalni mostič:: No
Zaključna ploščica potrebna:: No

Pribor

Produkt

EAN code for a single product: 3838895862857
Neto teža izdelka: 0,099 kg
Net width: 20,5 mm
Net height: 62 mm
Net depth: 69,5 mm
Stock unit of measure: pcs

Transportna embalaža

Transport packaging quantity: 40 pcs
EAN code for a transport packaging: 3838895843467
Transport packaging weight: 4,08 kg
Transport Packaging Dimensions Height: 75 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 210 mm
Transport packaging volume: 4,568 dm³
Pallet quantity: 5.880 pcs
Customs tariff: 85369010

Explosion-tested version 'Ex e': Da
Width: 20,5 mm
Material insulation body: Thermoplastic
Rated current In: 192 A
Mounting method: DIN rail (top hat rail)/G-rail TH35/G32
Number of levels: 1
Type of electrical connection 1: Screw connection
Number of clamp positions per level: 2
Closing plate required: Da
Type of electrical connection 2: Screw connection
Rated voltage: 1.000 V
Colour: Blue
Height: 71 mm
Inflammability class of insulation material according to with UL94: V0
Connectable conductor cross section solid-core(Min): 1 mm²
Connectable conductor cross section multi-wired(Min): 1,5 mm²
Connectable conductor cross section fine-strand with cable end sleeve(Min): 1,5 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Min): 1,5 mm²
Operating temperature(Min): −40 °C
Connectable conductor cross section solid-core(Max): 95 mm²
Connectable conductor cross section fine-strand without cable end sleeve(Max): 95 mm²
Connectable conductor cross section multi-wired(Max): 95 mm²
Operating temperature(Max): 100 °C
Connectable conductor cross section fine-strand with cable end sleeve(Max): 70 mm²

ETIM klasifikacija – različica 9.0
