Stikalni ločilniki so ključne komponente v nizkonapetostnih električnih inštalacijah, namenjene varnemu ločevanju tokokrogov med vzdrževanjem, pregledom ali izrednimi izklopi. Zagotavljajo jasno vidno ločitev med virom napajanja in porabniki, kar povečuje varnost osebja pri delu na izklopljenih sistemih.

004696627

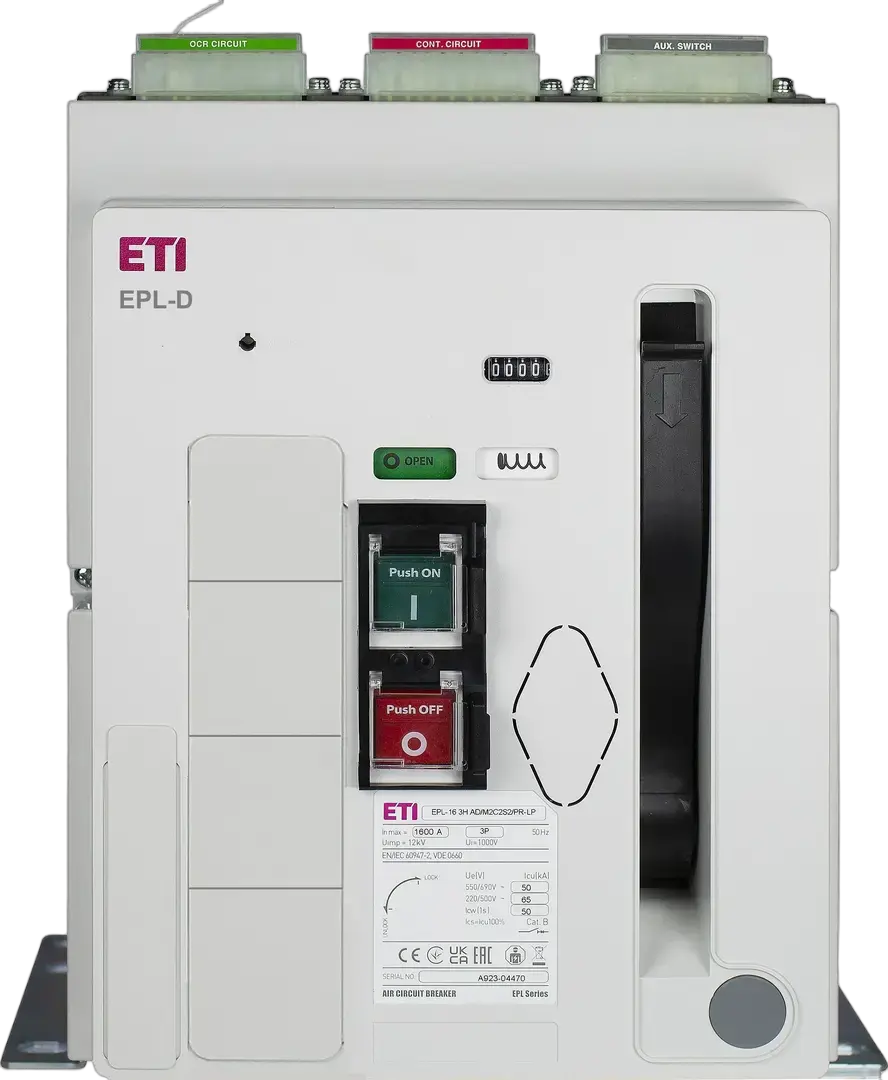

Slika EPL-D-12 4H AF/M2C2S2

EPL-D-12 4H AF/M2C2S2 Ločilno stikalo

Zaloga status Po naročilu

ETI koda:: 004696627
Aplikacije:: 60947-3
Nazivna impulzna vzdržna napetost Uimp:: 8 kV
Tip priključitve:: Zadnji kontakt
Nazivna delovna napetost (V AC):: 690 V
Število polov:: 4
Standardi:: 60947-3
Nazivni tok:: 1250 A
Kataloška skupina:: ETIPOWER

Produkt

Neto teža izdelka: 42,93 kg
Stock unit of measure: pcs

Osnovna embalaža

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400107985
Basic packaging weight: 43,43 kg
Basic Packaging Dimensions Height: 422,4 mm
Basic Packaging Dimensions Width: 404,4 mm
Basic Packaging Dimensions Depth: 295,8 mm
Basic packaging volume: 50,528 dm³

Transportna embalaža

Intermediate packaging quantity: 1 pcs
EAN code for a intermediate packaging: 3838400108012
Intermediate packaging weight: 47,93 kg
Intermediate Packaging Dimensions Height: 600 mm
Intermediate Packaging Dimensions Width: 700 mm
Intermediate Packaging Dimensions Depth: 600 mm
Transport packaging quantity: 6 pcs
EAN code for a transport packaging: 3838400108029
Transport packaging weight: 314 kg
Transport Packaging Dimensions Height: 1.750 mm
Transport Packaging Dimensions Width: 1.200 mm
Transport Packaging Dimensions Depth: 840 mm
Transport packaging volume: 1.764 dm³
Pallet quantity: 6 pcs
Customs tariff: 85362090

Motor drive optional: Da
Complete device with protection unit: Da
Rated permanent current Iu: 1.250 A
Motor drive integrated: Da
Degree of protection (IP): IP20
Type of control element: Push button
Position of connection for main current circuit: Back side
Integrated earth fault protection: Da
Type of electrical connection of main circuit: Bolt connection
Number of poles: 4
Device construction: Built-in device fixed built-in technique
With switched-off indicator: Da
Rated voltage(Min): 690 V
Rated voltage(Max): 690 V

ETIM klasifikacija – različica 9.0
