002440726

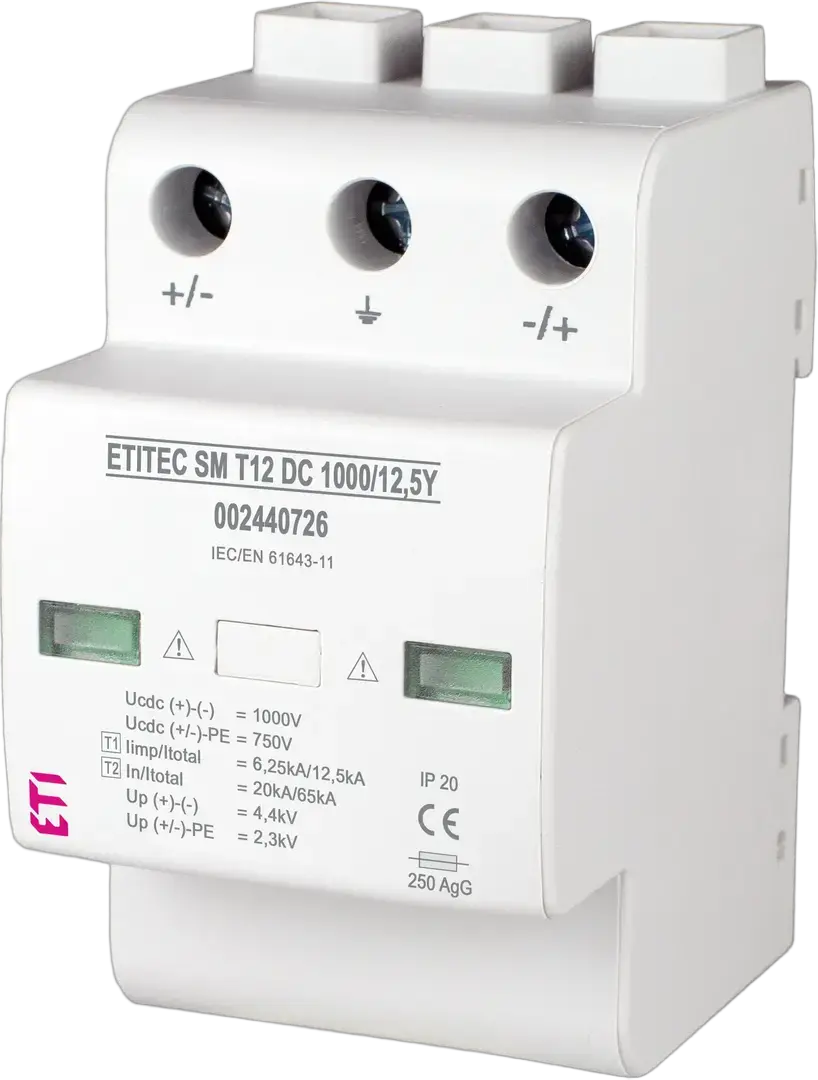

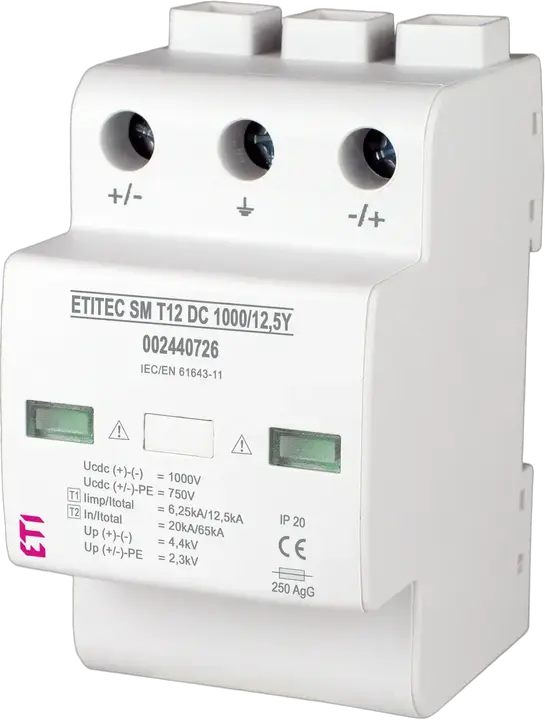

ETITEC SM T12 DC 1000/12,5 Y Prenapetostni odvodnik
Zaloga
status
Po naročilu
- ETI koda:
- 002440726
- Funkcija:
- SPD
- Tip toka:
- DC
- Nazivna enosmerna napetost:
- 900 V
- Maks. odvodni tok (10/350):
- 12,5 kA
- Kataloška skupina:
- ETITEC SM DC
- Montaža:
- PV inverters protection on the AC side
- Daljinska signalizacija:
- ✗
- IP zaščita:
- IP20
- Število modulov:
- 3
- Up - Stopnja zaščite:
- 44 kV
- Uhajavi tok:
- ✗
- Uporabljena tehnologija:
- GDT, MOV
- Vgradna globina:
- 71 mm
- In (8/20):
- 20 kA
- Presek golega vodnika:
- 35 mm²
- Maks. trajna obratovalna napetost DC Uc:
- 1.000 V
- Tip prenapetostnega odvodnika:
- T1, T2
3 Dokumenti
18 Logistika
Produkt
- Neto teža izdelka
- 0,388 kg
- Stock unit of measure
- pcs
Osnovna embalaža
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895966098
- Basic packaging weight
- 0,452 kg
- Basic Packaging Dimensions Height
- 75 mm
- Basic Packaging Dimensions Width
- 62 mm
- Basic Packaging Dimensions Depth
- 110 mm
- Basic packaging volume
- 0,512 dm³
Transportna embalaža
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838895966104
- Transport packaging weight
- 2,341 kg
- Transport Packaging Dimensions Height
- 83 mm
- Transport Packaging Dimensions Width
- 305 mm
- Transport Packaging Dimensions Depth
- 116 mm
- Transport packaging volume
- 2,937 dm³
- Pallet quantity
- 1.495 pcs
- Customs tariff
- 85363090
15 ETIM
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Voltage protection level (DC+/DC- - PE)
- 2,3 kV
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. continuous voltage DC
- 1.000 V
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Nominal voltage DC
- 900 V
- Lightning impulse current (10/350 µs)
- 6,25 kA
- Specific energy (W/R)
- 9,77 kJ/Ohm
- Number of poles
- 3
- Voltage protection level (DC+ - DC-)
- 4,4 kV
- Signalling at the device
- Optical
- System configuration DC
- ✓
ETIM klasifikacija – različica 9.0
