002440730

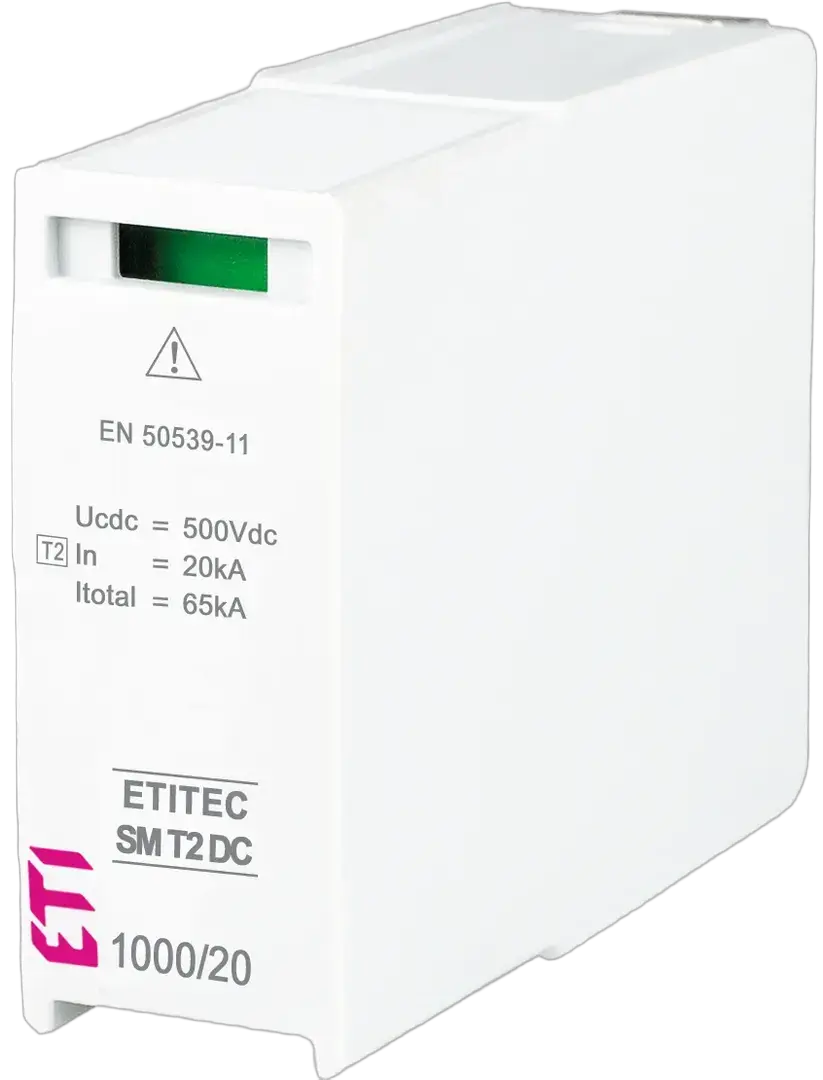

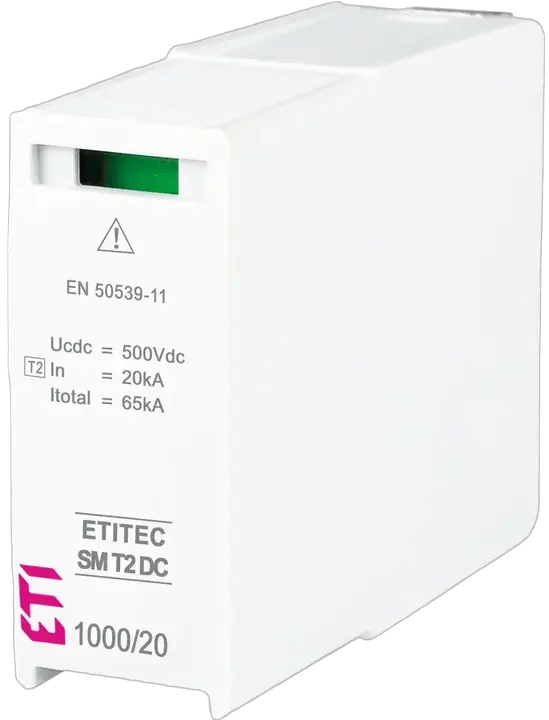

MOD. SM T2 DC 500/20 S Prenapetostni odvodnik
Zaloga
status
Po naročilu
- ETI koda:
- 002440730
- Funkcija:
- SPD Module
- Za uporabo z:
- ETITEC SM T2 DC
- Tip toka:
- DC
- Sistem omrežja:
- DC
- Kataloška skupina:
- ETITEC SM DC
- Montaža:
- PV inverters protection on the AC side
- IP zaščita:
- IP20
- Uhajavi tok:
- ✗
- Uporabljena tehnologija:
- GDT, MOV
- In (8/20):
- 20 kA
- Maks. trajna obratovalna napetost DC Uc:
- 500 V
- Tip prenapetostnega odvodnika:
- T2
2 Dokumenti
18 Logistika
Produkt
- Neto teža izdelka
- 0,076 kg
- Stock unit of measure
- pcs
Osnovna embalaža
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895966173
- Basic packaging weight
- 0,087 kg
- Basic Packaging Dimensions Height
- 72 mm
- Basic Packaging Dimensions Width
- 24 mm
- Basic Packaging Dimensions Depth
- 50 mm
- Basic packaging volume
- 0,086 dm³
Transportna embalaža
- Transport packaging quantity
- 24 pcs
- EAN code for a transport packaging
- 3838895966180
- Transport packaging weight
- 2,169 kg
- Transport Packaging Dimensions Height
- 83 mm
- Transport Packaging Dimensions Width
- 305 mm
- Transport Packaging Dimensions Depth
- 116 mm
- Transport packaging volume
- 2,937 dm³
- Pallet quantity
- 7.728 pcs
- Customs tariff
- 85363090
13 ETIM
- Max. discharge surge current (8/20)
- 65 kA
- Max. continuous voltage DC
- 500 V
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Nominal voltage DC
- 900 V
- Short-circuit breaking capacity (Isccr)
- 30 kA
- Voltage protection level
- 2,5 kV
- Signalling at the device
- Optical
- Category type 2
- ✓
- Max. continuous voltage AC
- 500 V
- Nominal discharge surge current (8/20)
- 20 kA
- System configuration DC
- ✓
ETIM klasifikacija – različica 9.0
