002440728

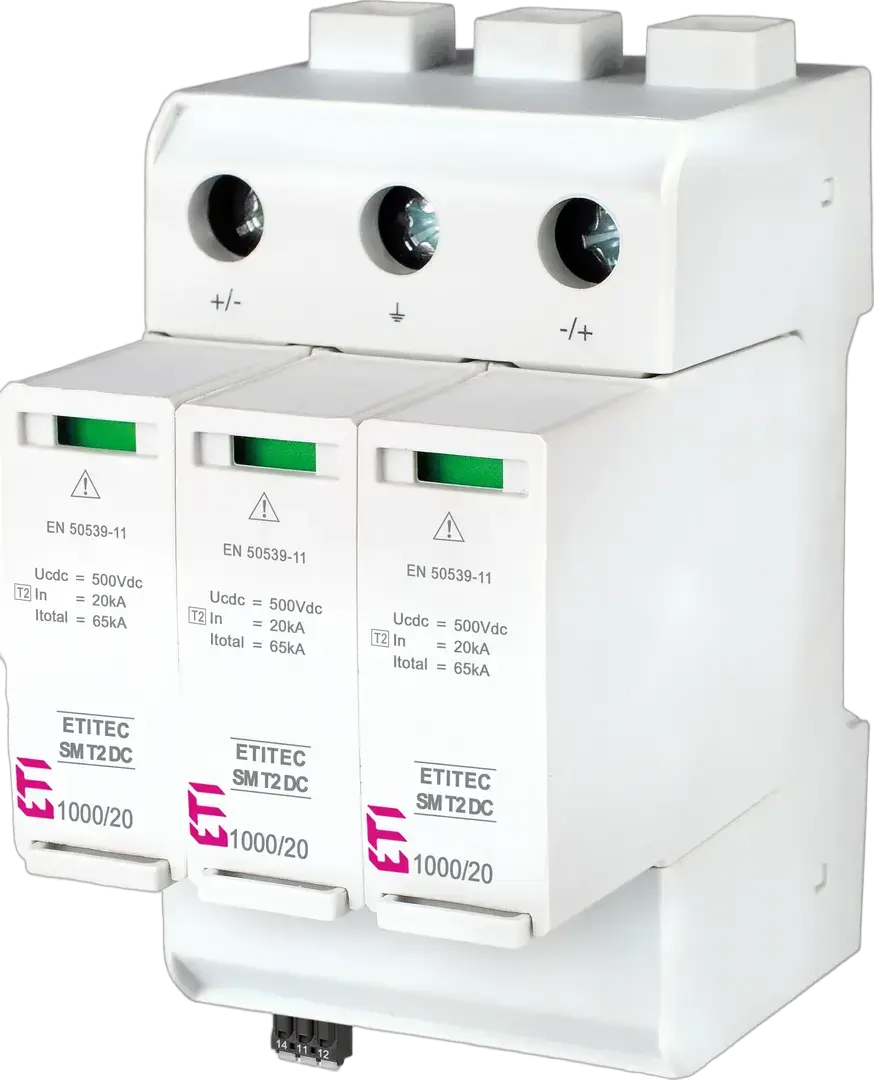

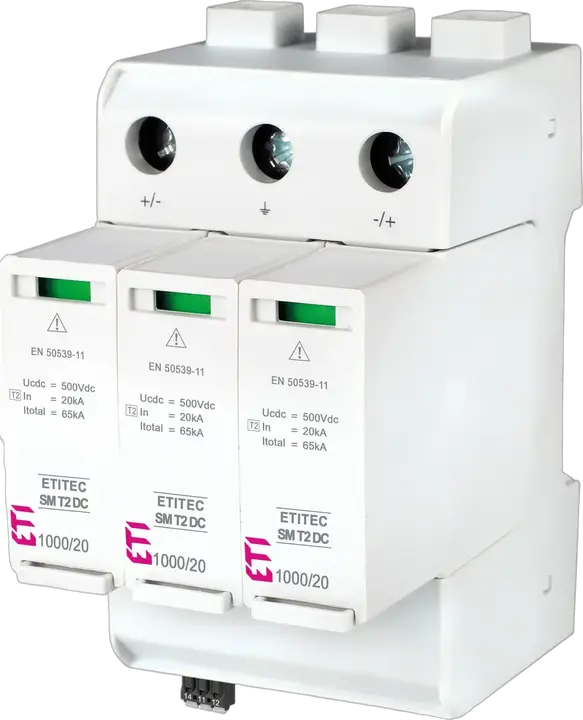

ETITEC SM T2 DC 1000/20 Y Prenapetostni odvodnik
Zaloga
status
Po naročilu
- ETI koda:
- 002440728
- Funkcija:
- SPD
- Tip toka:
- DC
- Kataloška skupina:
- ETITEC SM DC
- Montaža:
- PV inverters protection on the AC side
- Daljinska signalizacija:
- ✗
- IP zaščita:
- IP20
- Število modulov:
- 3
- Up - Stopnja zaščite:
- 4,8 kV
- Uhajavi tok:
- ✗
- Uporabljena tehnologija:
- GDT, MOV
- Vgradna globina:
- 70 mm
- In (8/20):
- 20 kA
- Presek golega vodnika:
- 35 mm²
- Maks. trajna obratovalna napetost DC Uc:
- 1.000 V
- Tip prenapetostnega odvodnika:
- T2
2 Dokumenti
18 Logistika
Produkt
- Neto teža izdelka
- 0,387 kg
- Stock unit of measure
- pcs
Osnovna embalaža
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895966135
- Basic packaging weight
- 0,417 kg
- Basic Packaging Dimensions Height
- 75 mm
- Basic Packaging Dimensions Width
- 62 mm
- Basic Packaging Dimensions Depth
- 110 mm
- Basic packaging volume
- 0,512 dm³
Transportna embalaža
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838895966142
- Transport packaging weight
- 2,166 kg
- Transport Packaging Dimensions Height
- 109 mm
- Transport Packaging Dimensions Width
- 352 mm
- Transport Packaging Dimensions Depth
- 115 mm
- Transport packaging volume
- 4,412 dm³
- Pallet quantity
- 1.130 pcs
- Customs tariff
- 85363090
17 ETIM
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Max. discharge surge current (8/20)
- 65 kA
- Number of conductors (without earthing)
- 2
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. continuous voltage DC
- 1.000 V
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Nominal voltage DC
- 900 V
- Short-circuit breaking capacity (Isccr)
- 30 kA
- Voltage protection level
- 4,8 kV
- Signalling at the device
- Optical
- Category type 2
- ✓
- Voltage protection level N-PE
- 2,5 kV
- Max. continuous voltage AC
- 100 V
- Nominal discharge surge current (8/20)
- 20 kA
- System configuration DC
- ✓
ETIM klasifikacija – različica 9.0
