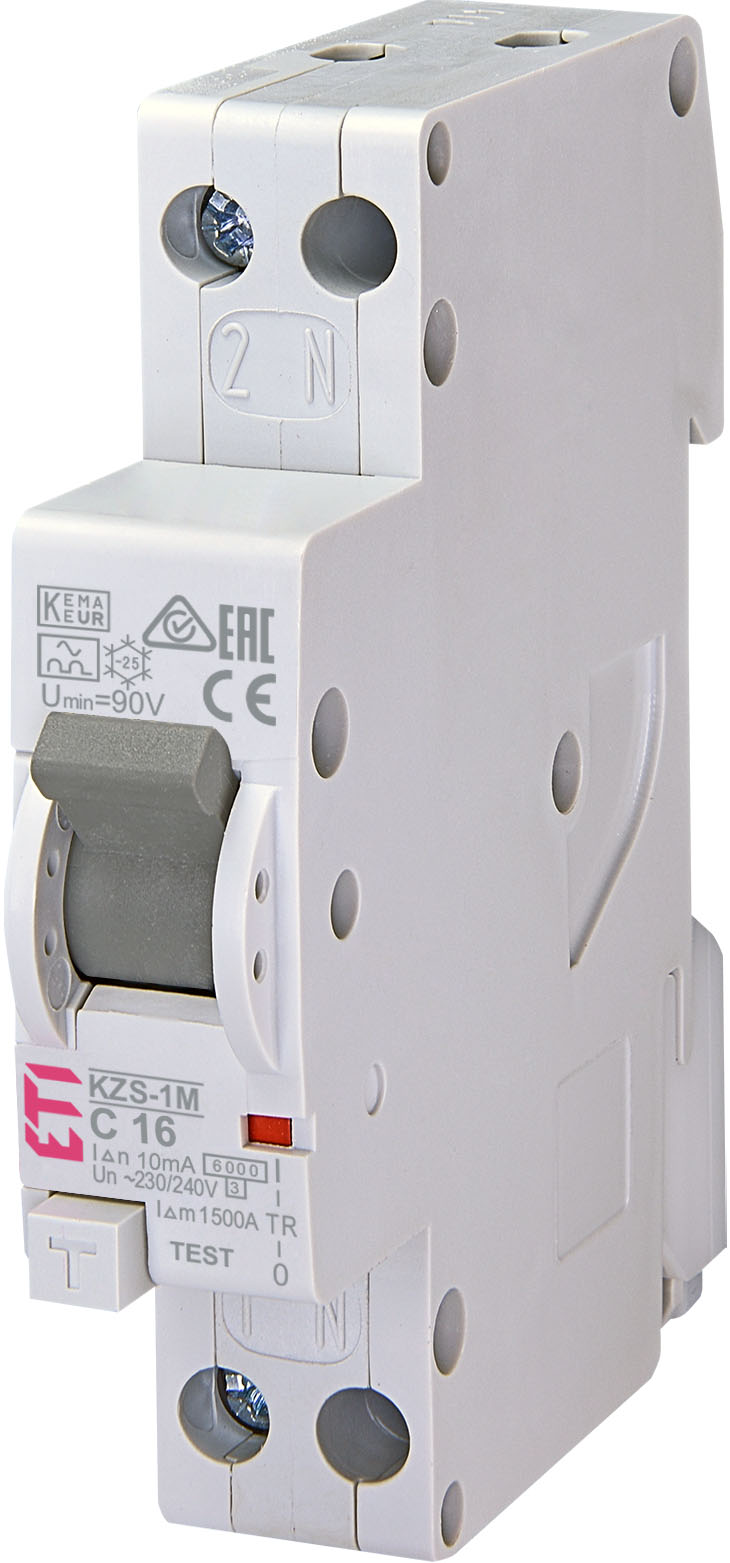

Kombinirano zaščitno stikalo KZS-1M 1p+N A C16/0.01 6kA 002175424 Opuščen program
Ta izdelek je zastarel in je bil nadomeščen z KZS-1M-UNI 1p+N A C16/0.01.
Primerjaj izdelke
Specifikacija
- Koda izdelka:
- 002175424
- Opis:
- *KZS-1M 1p+N A C16/0.01 6kA
- Ime razreda:
- Kombinirano zaščitno stikalo
- Nazivni diferenčni tok (A):
- 0.01
- Tip toka:
- A
- Nazivni tok (A):
- 16
- Izklopna karakteristika:
- C
- Tip:
- A
- Število polov:
- 1+N
- Nazivna kratkostična zmogljivost (kA):
- 6
- Nazivna napetost (V):
- 230
- Nazivna frekvenca (Hz):
- 50 Hz
- Nazivni presek:
- 1-10
- Standardi:
- IEC 61009
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895627067
- Teža izdelka
- 0.123 kg
- Carinska tarifa
- 85362010
- logis_net_width
- 18 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 74 mm
Osnovno pakiranje
- Količina
- 12
- EAN
- 3838895627074
- Teža
- 1.546 kg
Transportno pakiranje
- Količina
- 72
- EAN
- 3838895739685
- Teža
- 9.626 kg
- Odpremna količina
- 3744
ETIM klasifikacija
- Klasifikacija
- EC000905
- Ime razreda
- Earth leakage circuit breaker
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 230V
- Rated current
- 16A
- Rated fault current
- 0,01A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 6kA
- Frequency
- 50 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- Da
- Width in number of modular spacings
- 1
- Built-in depth
- 69mm
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1…10mm²
- Connectable conductor cross section multi-wired
- 1…10mm²
