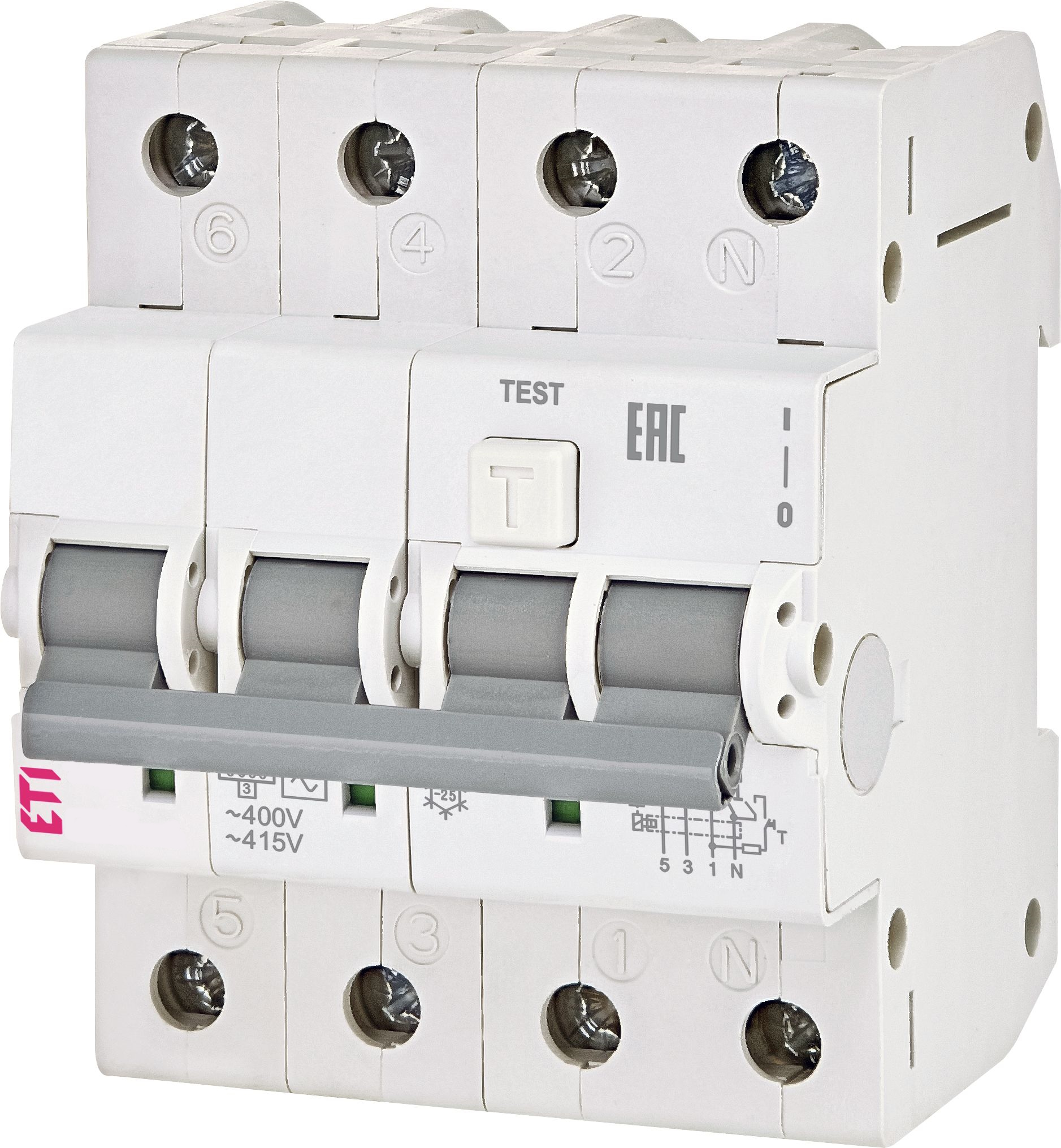

Kombinirano zaščitno stikalo KZS-4M 3p+N A B10/0.3 002174502
Specifikacija
- Koda izdelka:
- 002174502
- Opis:
- KZS-4M 3p+N A B10/0.3
- Ime razreda:
- Kombinirano zaščitno stikalo
- Nazivni diferenčni tok (A):
- 0.3
- Tip toka:
- A
- Nazivni tok (A):
- 10
- Izklopna karakteristika:
- B
- Tip:
- A
- Število polov:
- 3+N
- Nazivna kratkostična zmogljivost (kA):
- 6
- Nazivna napetost (V):
- 415
- Nazivna frekvenca (Hz):
- 50/60 Hz
- Nazivni presek:
- 1-25
- Standardi:
- IEC/EN 61009
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85362010
- logis_net_width
- 70 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 73 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895795612
- Teža
- 0.53 kg
Transportno pakiranje
- Količina
- 27
- EAN
- 3838895795629
- Teža
- 14.81 kg
- Odpremna količina
- 1404
ETIM klasifikacija
- Klasifikacija
- EC000905
- Ime razreda
- Earth leakage circuit breaker
- Number of poles (total)
- 4
- Number of protected poles
- 3
- Rated voltage
- 400V
- Rated current
- 10A
- Rated fault current
- 0,3A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 6kA
- Frequency
- 50/60 Hz
- Release characteristic
- B
- Concurrently switching neutral conductor
- Da
- Width in number of modular spacings
- 4
- Built-in depth
- 69mm
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1…25mm²
- Connectable conductor cross section multi-wired
- 1…25mm²

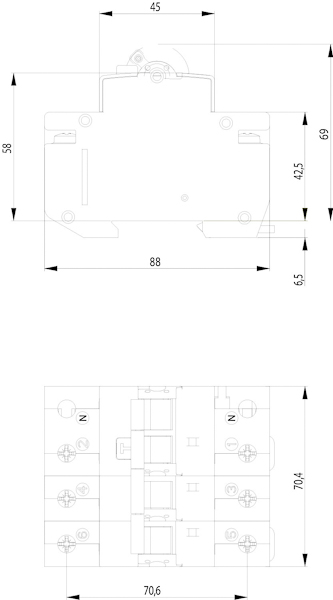

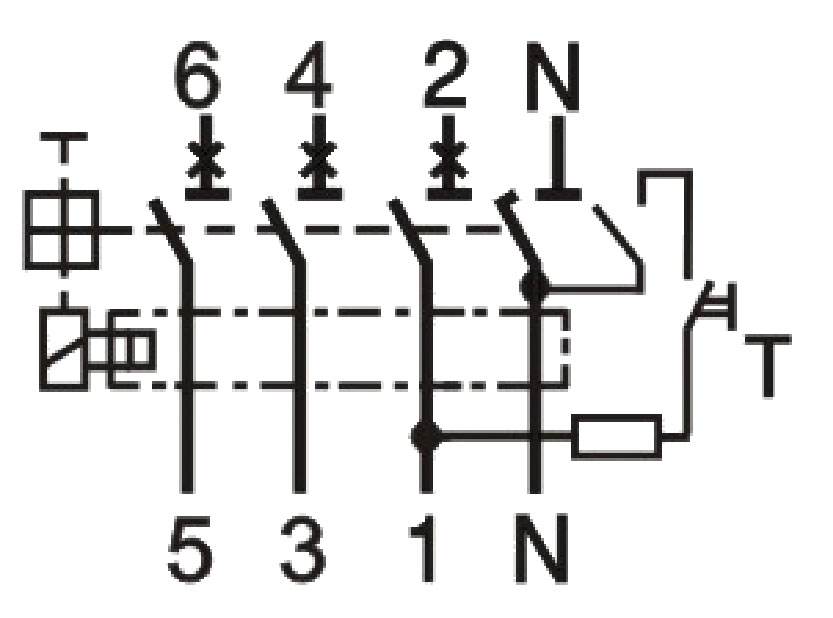

Slike in diagrami
