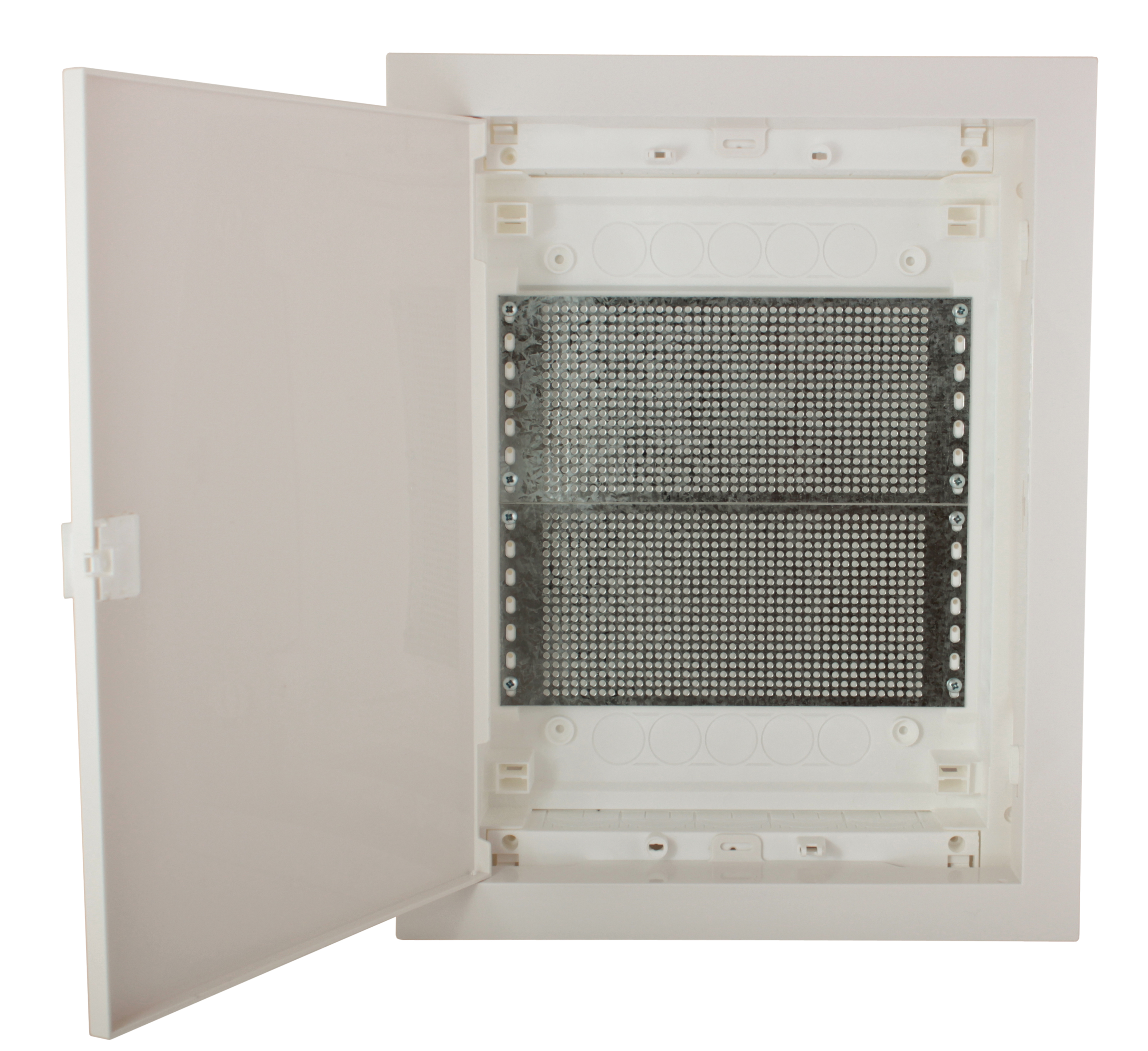

Razdelilnik ECG28MEDIAPT 001101187
Specifikacija
- Koda izdelka:
- 001101187
- Opis:
- ECG28MEDIAPT
- Ime razreda:
- Razdelilnik
- Stopnja zašcite:
- II
- Način montaže:
- Podometni razdelilnik
- IP zaščita:
- IP30
- Velikost ohišja (št. vrstic):
- 2
- Vrata (material, barva):
- Plastic, transparent
- Podstavek (material, barva):
- Plastična, bela
- Test z žarečo žico (°C):
- 650
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85381000
- logis_net_width
- 425 mm
- logis_net_height
- 442 mm
- logis_net_depth
- 98 mm
Transportno pakiranje
- Količina
- 1
- EAN
- 3838895839040
- Teža
- 2.1 kg
- Odpremna količina
- 72
ETIM klasifikacija
- Klasifikacija
- EC000214
- Ime razreda
- Small distribution board
- Mounting method
- Flush-mounted (plaster)
- Number of rows
- 2
- Width in number of modular spacings
- 14
- Housing material
- Plastic
- Height
- 442mm
- Width
- 346mm
- Depth
- 87mm
- Built-in depth
- 88mm
- With mounting plate
- Da
- EMC-version
- Da
- Colour
- White
- Degree of protection (IP)
- IP40
