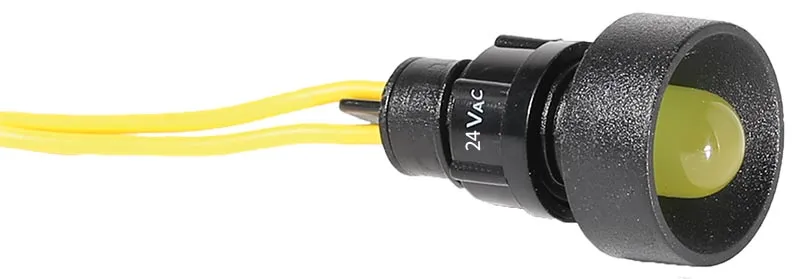

Signalna svetilka LS LED 10 Y 24AC 004770809
Specifikacija
- Koda izdelka:
- 004770809
- Opis:
- LS LED 10 Y 24AC
- Ime razreda:
- Signalna svetilka
- Kataloška skupina:
- Tipkala in signalne lučke E-line
- Nazivna AC napetost (V):
- 24V
- type description:
- Signal lamp
- Funkcija:
- Signalna svetilka
Dokumenti
Logistični podatki
Produkt
- Teža izdelka
- 0.05 kg
- Carinska tarifa
- 85369040
- logis_net_width
- 22 mm
- logis_net_height
- 22 mm
- logis_net_depth
- 40 mm
Transportno pakiranje
- Količina
- 1
- EAN
- 5904722940581
- Teža
- 0.05 kg
- Odpremna količina
- 16000
ETIM klasifikacija
- Klasifikacija
- EC000272
- Ime razreda
- Indicator light complete
- Number of indicator lights
- 1
- Colour lens
- Yellow
- With light source
- Da
- Rated operating voltage Ue
- 24…24V
- Voltage type
- AC
- Type of electric connection
- Soldering flag connection
- Construction type lens
- Round
- Type of lens
- High
- Hole diameter
- 10mm
- Degree of protection (IP)
- IP20
Slike in diagrami
