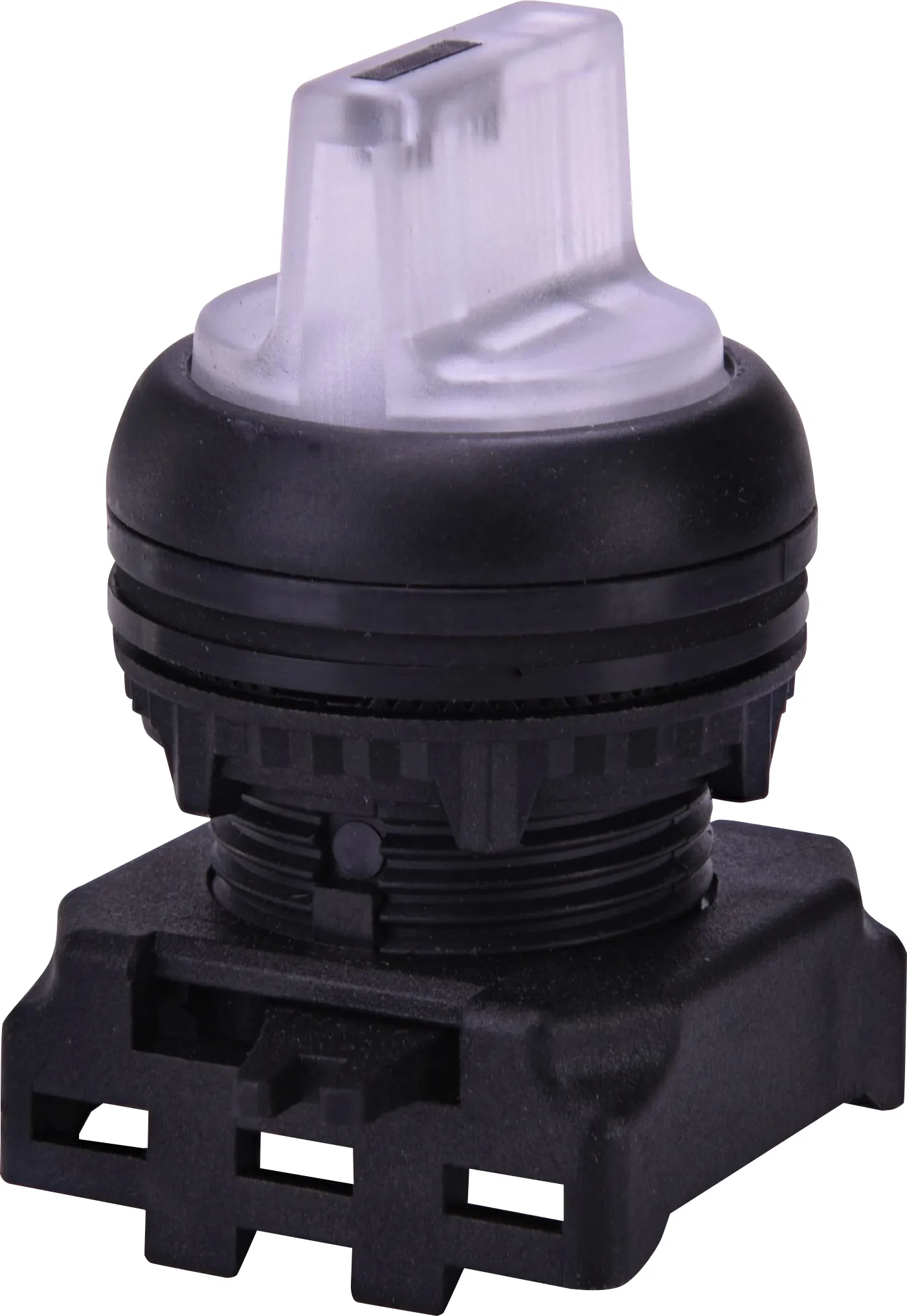

Osv. izbirno stikalo EGS2I-N90-W 004771338
Specifikacija
- Koda izdelka:
- 004771338
- Opis:
- EGS2I-N90-W
- Ime razreda:
- Osv. izbirno stikalo
- Kataloška skupina:
- Tipkala in signalne lučke E-line
- Nazivna AC napetost (V):
- 230V
- type description:
- Selector actuator-symmetric head, 2-position
- Funkcija:
- Osvetljeno tipkalo
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895808121
- Teža izdelka
- 0.019 kg
- Carinska tarifa
- 85389099
- logis_net_width
- 38 mm
- logis_net_height
- 31 mm
- logis_net_depth
- 47 mm
Osnovno pakiranje
- Količina
- 10
- EAN
- 3838895781158
- Teža
- 0.25 kg
Transportno pakiranje
- Količina
- 140
- EAN
- 3838895781165
- Teža
- 3.5 kg
- Odpremna količina
- 11200
ETIM klasifikacija
- Klasifikacija
- EC000222
- Ime razreda
- Front element for selector switch
- Number of switch positions
- 2
- Type of control element
- Short thumb-grip
- Suitable for illumination
- Da
- Colour control element
- White
- Colour indicator light cap
- White
- Hole diameter
- 22,5mm
- Switching function latching
- Da
- Degree of protection (IP), front side
- IP65
Slike in diagrami
Programska oprema
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
Oznake
Pripomočki 31
>
>
0
EGS2I-N90-W
