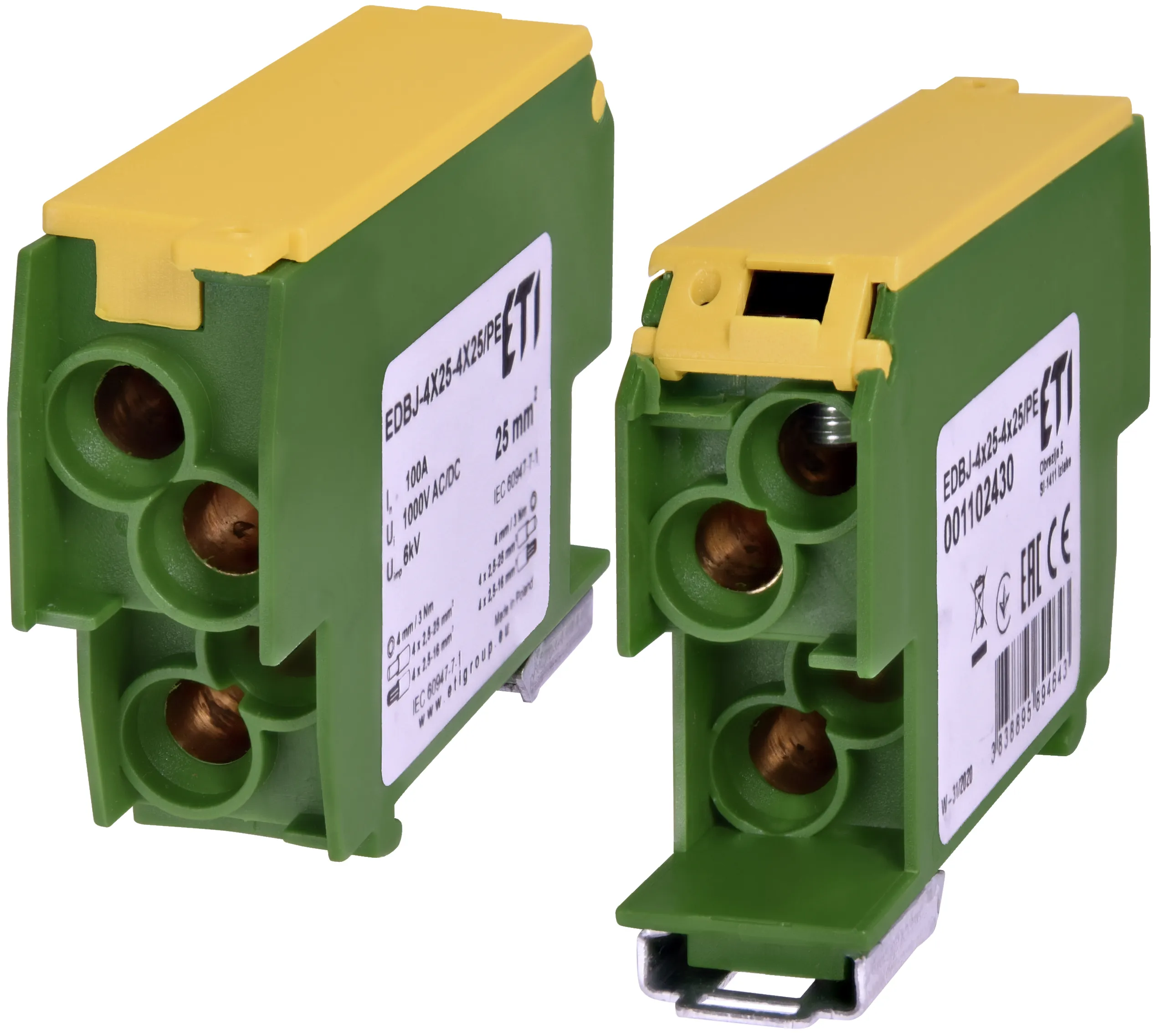

Razdelilni blok EDBJ-4x25-4x25/PE 001102430
Specifikacija
- Koda izdelka:
- 001102430
- Opis:
- EDBJ-4x25-4x25/PE
- Ime razreda:
- Razdelilni blok
- Način montaže:
- TH 35
- Nazivni tok (A):
- 100A
- Nazivna AC napetost (V):
- 415V
- Nazivna enosmerna napetost (V):
- 415V
- Nazivna izolacijska napetost (V):
- 1000V
- Nazivna kratkostična zmogljivost (kA):
- 10kA
- Višina (mm):
- 80.3mm
- Širina (mm):
- 17.8mm
- Globina (mm):
- 50mm
- Nazivni presek:
- 2.5mm²-25mm²
- Produkt je iz materiala:
- PC/ABS
- Materialna sestava sponk:
- MO-58
- Delovna temperatura (°C):
- -30°C-80°C
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895894643
- Teža izdelka
- 0.125 kg
- Carinska tarifa
- 85369010
- logis_net_width
- 18 mm
- logis_net_height
- 80 mm
- logis_net_depth
- 50 mm
Osnovno pakiranje
- Količina
- 12
- EAN
- 3838400166197
- Teža
- 131 kg
Transportno pakiranje
- Količina
- 240
- EAN
- 3838895894636
- Teža
- 30 kg
- Odpremna količina
- 4800
ETIM klasifikacija
- Klasifikacija
- EC001284
- Ime razreda
- Single- and multi-pole terminal strip
- Connectable conductor cross section solid-core
- 2.5…25mm²
- Rated current In
- 100A
- Rated voltage
- 415V
- Type of electrical connection 1
- Screw connection
- Number of poles
- 1
- Number of clamp positions per pole
- 8
- Mounting method
- Other
- Material insulation body
- Thermoplastic
- Operating temperature
- -30…80°C
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Ne
- Colour
- Green/yellow
