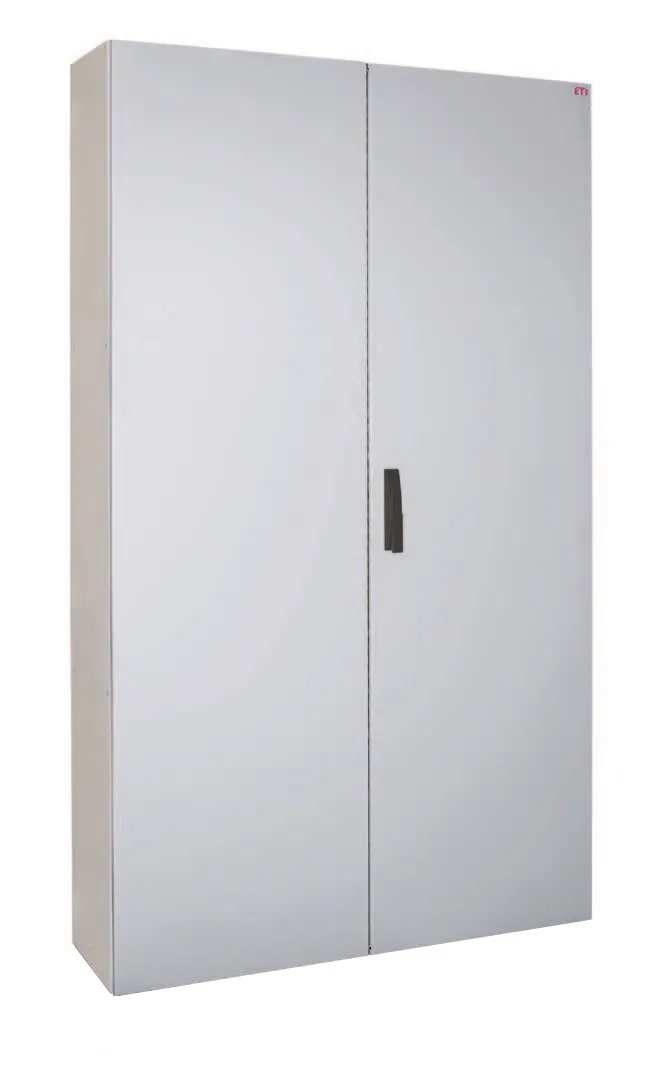

Omara HXS400 4-13 001327510
Specifikacija
- Koda izdelka:
- 001327510
- Opis:
- HXS400 4-13
- Ime razreda:
- Omara
- Stopnja zašcite:
- I
- IP zaščita:
- IP55
- Odpornost na udarce:
- IK10
- Višina (mm):
- 2000mm
- Širina (mm):
- 1050mm
- Globina (mm):
- 400mm
- Aplikacije:
- Notranja uporaba
- Zaščita površine:
- Prašno premazano jeklo
- Color:
- RAL 7035
- Delovna temperatura (°C):
- -5°C-40°C
- Standardi:
- IEC/EN 62208,IEC/EN 60529,IEC/EN 62262,IEC/EN 61439-1
- Direktive:
- RoHS
Dokumenti
Logistični podatki
Produkt
- Teža izdelka
- 100.99 kg
- Carinska tarifa
- 85381000
- logis_net_width
- 1050 mm
- logis_net_height
- 2000 mm
- logis_net_depth
- 400 mm
Transportno pakiranje
- Količina
- 1
- EAN
- 5902047605321
- Teža
- 105 kg
- Odpremna količina
- 1
ETIM klasifikacija
- Klasifikacija
- EC000058
- Ime razreda
- Empty cabinet
- Mounting method
- Floor installation
- Type of door
- Double
- Transparent cover/door
- Ne
- Height
- 2000mm
- Width
- 1050mm
- Depth
- 400mm
- Colour
- Grey
- Number of modules
- 624
- Number of rows
- 13
- Width in number of modular spacings
- 48
- Number of openings for flange plates
- 12
- Extension possible
- Da
- Housing material
- Steel
- Surface protection
- Powder coating
- Suitable for outdoor use
- Ne
- Degree of protection (IP)
- IP55
- Protection class
- I
- Impact strength
- IK10
