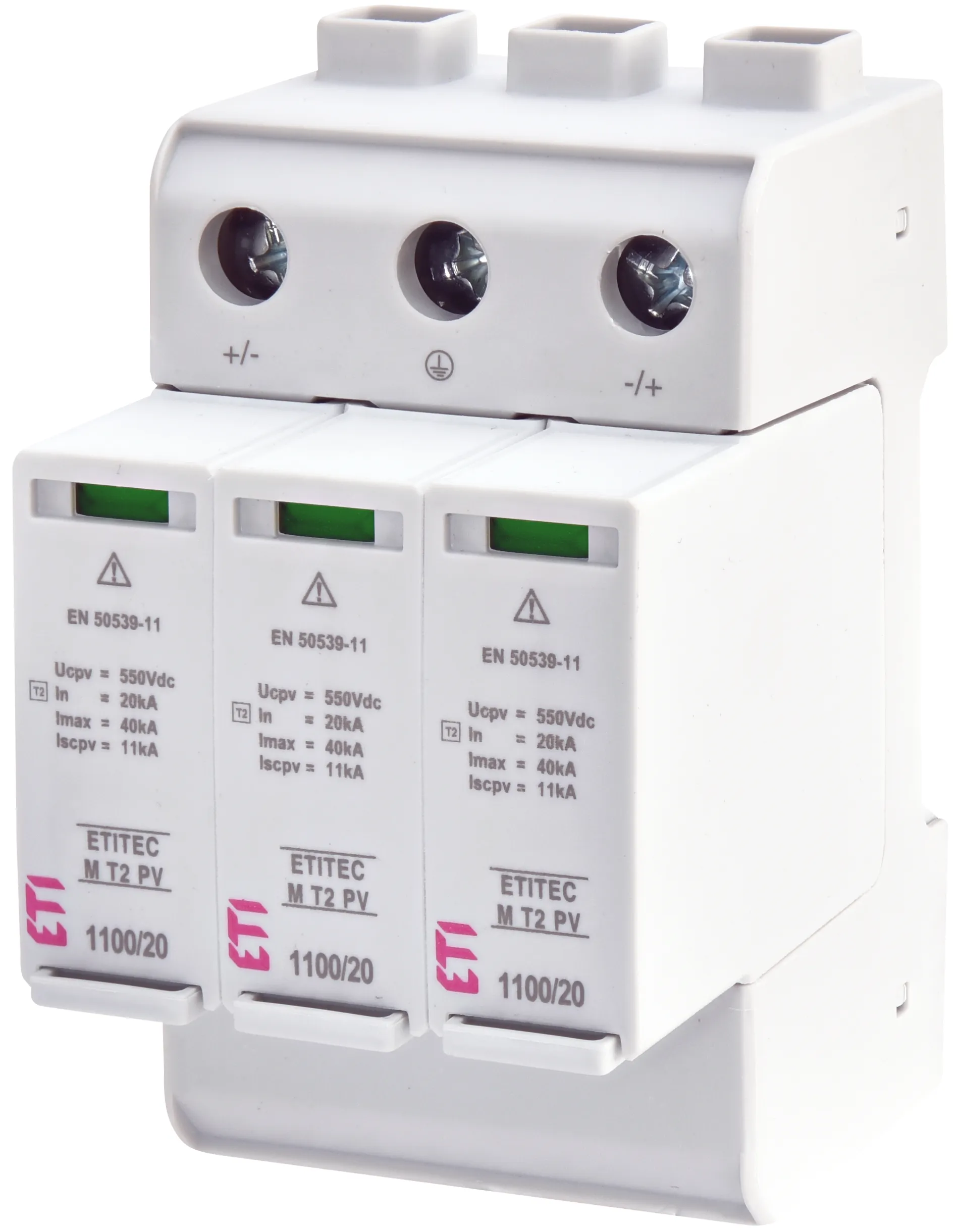

Prenapetostni odvodnik ETITEC M T2 PV 1100/20 Y 002440515
Specifikacija
- Koda izdelka:
- 002440515
- Opis:
- ETITEC M T2 PV 1100/20 Y
- Ime razreda:
- Prenapetostni odvodnik
- DC max continous operating voltage Uc:
- 1100V
- Skupina po po IEC/VDE:
- II / C
- Tip toka:
- DC
- Funkcija:
- SPD
- Tip:
- T2
- Število polov:
- 2
- IP zaščita:
- IP20
- Kataloška skupina:
- ETITEC M PV
- Število modulov:
- 3
- Up - Stopnja zaščite (kV):
- 3.8kV
- Uhajavi tok:
- JA
- Uporabljena tehnologija:
- MOV
- Built-in depth (mm):
- 70mm
- Daljinska signalizacija:
- Ne
- In (8/20) (kA):
- 20kA
- Montaža:
- PV zaščita
Dokumenti
Logistični podatki
Produkt
- Teža izdelka
- 0.396 kg
- Carinska tarifa
- 85363090
- logis_net_width
- 54 mm
- logis_net_height
- 101 mm
- logis_net_depth
- 77 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895839415
- Teža
- 0.396 kg
Transportno pakiranje
- Količina
- 5
- EAN
- 3838895839422
- Teža
- 2.061 kg
- Odpremna količina
- 900
ETIM klasifikacija
- Klasifikacija
- EC000941
- Ime razreda
- Surge protection device for power supply systems
- System configuration DC
- Da
- System configuration IT
- Ne
- System configuration TN
- Ne
- System configuration TN-C
- Ne
- System configuration TN-C-S
- Ne
- System configuration TN-S
- Ne
- System configuration TT
- Ne
- System configuration other
- Ne
- Number of conductors (without earthing)
- 2
- Nominal discharge surge current (8/20)
- 20
- Short-circuit breaking capacity (Isccr)
- 11
- Max. discharge surge current (8/20)
- 40
- Max. continuous voltage DC
- 1100
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Max. PV-voltage
- 916
- Voltage protection level
- 3,8
- Max. conductor cross section solid (solid, stranded)
- 35
- Max. conductor cross section flexible (fine-strand)
- 25
- With remote signalling contact
- Ne
- Integrated backup fuse
- Ne
- Signalling at the device
- Optical
- Category type 2
- Da
- Degree of protection (IP)
- IP20
