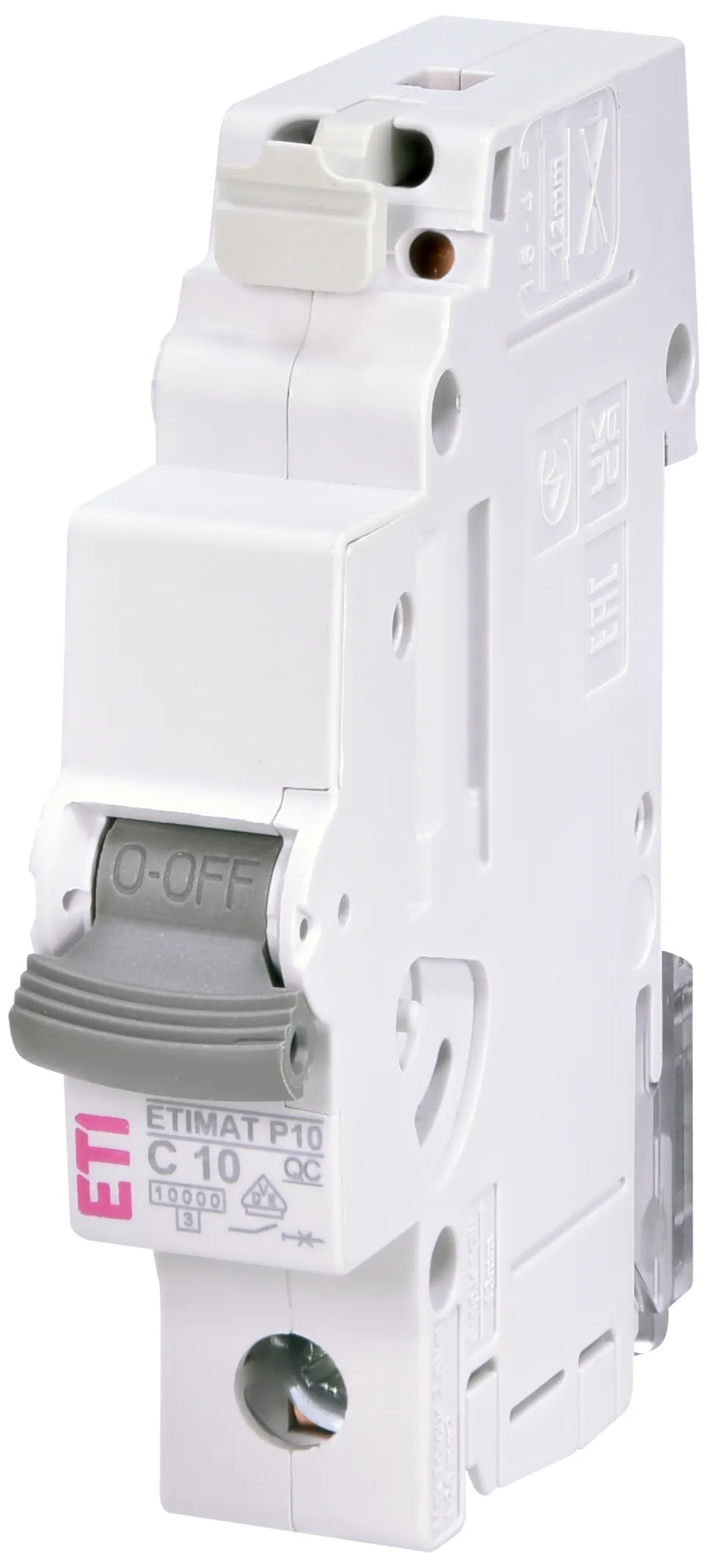

Inštalacijski odklopnik ETIMAT P10-QC 1p K10 001906068
Specifikacija
- Koda izdelka:
- 001906068
- Opis:
- ETIMAT P10-QC 1p K10
- Ime razreda:
- Inštalacijski odklopnik
- Nazivni tok (A):
- 10A
- Izklopna karakteristika:
- K
- Število polov:
- 1
- Nazivna kratkostična zmogljivost (kA):
- 10kA
- Vrsta napetosti:
- AC
- Nazivna AC napetost (V):
- 240V/415V
- Nazivna frekvenca (Hz):
- 50Hz/60Hz
- Nazivna impulzna vzdržna napetost Uimp (kV):
- 6kV
- Nazivni presek:
- 1mm²-4mm²
- Standardi:
- 60898-1,60947-2
- Funkcija:
- MCB SLO
Dokumenti
Logistični podatki
Produkt
- Teža izdelka
- 124 g
- Carinska tarifa
- 85362010
ETIM klasifikacija
- Klasifikacija
- EC000042
- Ime razreda
- Miniature circuit breaker (MCB)
- Release characteristic
- K
- Number of poles (total)
- 1
- Number of protected poles
- 1
- Rated current
- 10A
- Rated voltage
- 240/415V
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 4kV
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 10kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 10kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
- 10kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 10kA
- Voltage type
- AC
- Frequency
- 50…60Hz
- Current limiting class
- 3
- Suitable for flush-mounted installation
- Da
- Concurrently switching neutral conductor
- Da
- Over voltage category
- 3
- Pollution degree
- 2
- Additional equipment possible
- Ne
- Width in number of modular spacings
- 1
- Built-in depth
- 70mm
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -60…70°C
- Connectable conductor cross section multi-wired
- 1…4mm²
- Connectable conductor cross section solid-core
- 1…4mm²
