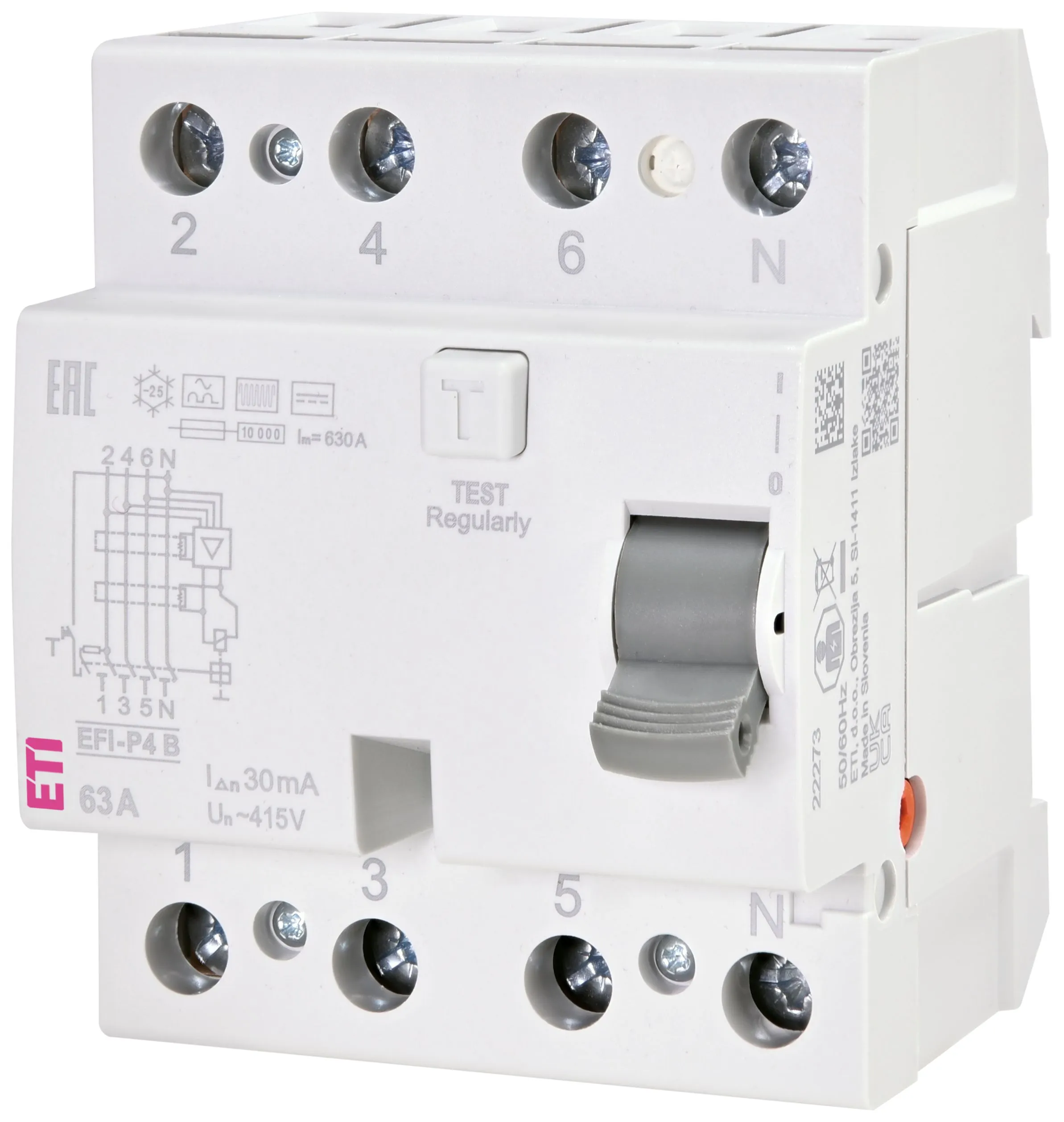

Zaš. stikalo na diferenčni tok EFI-P4 B 63/0.3 002061973
Specifikacija
- Koda izdelka:
- 002061973
- Opis:
- EFI-P4 B 63/0.3
- Ime razreda:
- Zaš. stikalo na diferenčni tok
- Nazivni diferenčni tok (A):
- 3A
- residual_current_type:
- B
- Nazivni tok (A):
- 63A
- Število polov:
- 3+N
- Nazivni pogojni kratkostični tok Inc (kA):
- 10kA
- Nazivna enosmerna napetost (V):
- 415V
- Nazivna AC napetost (V):
- 415V
- Nazivna frekvenca (Hz):
- 50Hz/60Hz
- Nazivni presek:
- 125mm²
- Standardi:
- EN/IEC 61008-1,IEC 62423
- IP zaščita:
- IP20
- Način montaže:
- TH 35
- Globina (mm):
- 70mm
Dokumenti
Logistični podatki
Produkt
- Teža izdelka
- 0.4 kg
- Carinska tarifa
- 85362010
- logis_net_width
- 72 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 73 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838400096975
- Teža
- 0.43 kg
Transportno pakiranje
- Količina
- 27
- EAN
- 3838400096982
- Teža
- 11.91 kg
- Odpremna količina
- 1404
ETIM klasifikacija
- Klasifikacija
- EC000003
- Ime razreda
- Residual current circuit breaker (RCCB)
- Number of poles
- 4
- Rated voltage
- 415V
- Rated current
- 63A
- Rated fault current
- 300mA
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 4kV
- Mounting method
- DIN rail
- Leakage current type
- B
- Selective protection
- Ne
- Short-time delayed tripping
- Ne
- Short-circuit breaking capacity (Icw)
- 10kA
- Surge current capacity
- 3kA
- Frequency
- 50/60 Hz
- Additional equipment possible
- Da
- With interlocking device
- Ne
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 4
- Built-in depth
- 70mm
- Ambient temperature during operating
- -40…70°C
- Pollution degree
- 2
- Connectable conductor cross section multi-wired
- 1…25mm²
- Connectable conductor cross section solid-core
- 1…25mm²

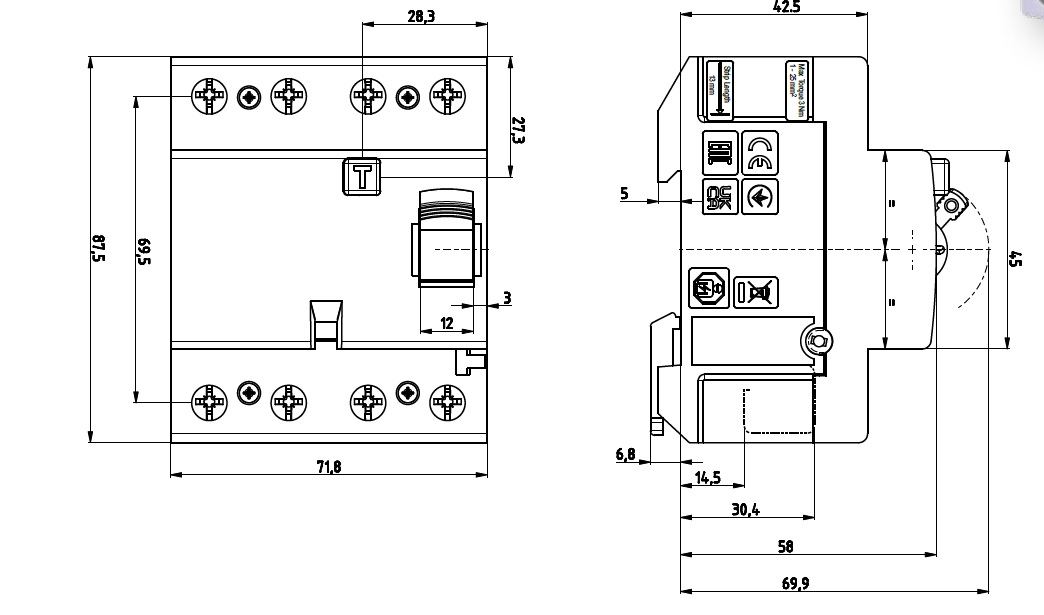

Slike in diagrami
