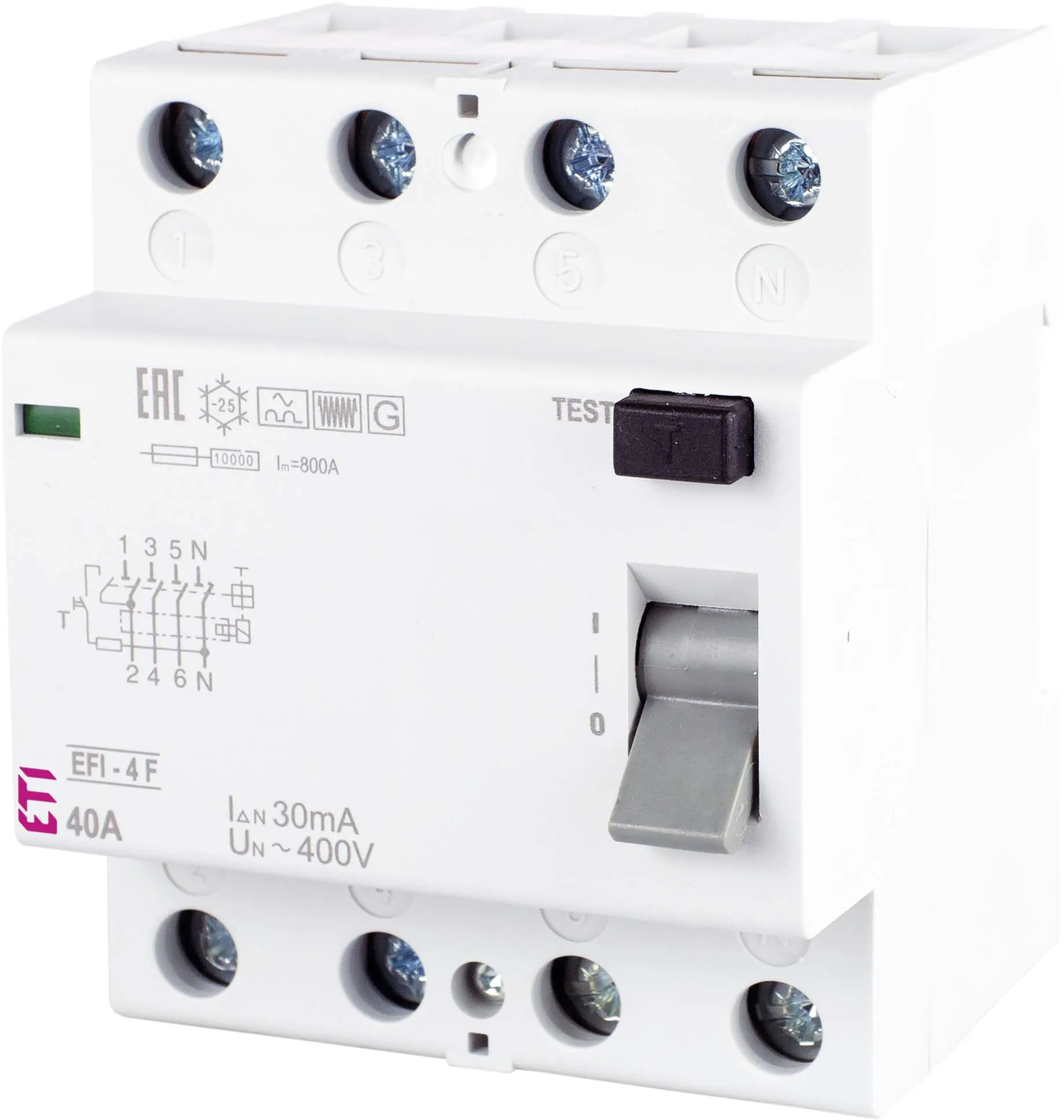

Zaš. stikalo na diferenčni tok EFI-4 F 40/0.03 002062529
Specifikacija
- Koda izdelka:
- 002062529
- Opis:
- EFI-4 F 40/0.03
- Ime razreda:
- Zaš. stikalo na diferenčni tok
- Nazivni diferenčni tok (A):
- 3A
- residual_current_type:
- F
- Nazivni tok (A):
- 40A
- Število polov:
- 4
- Nazivni pogojni kratkostični tok Inc (kA):
- 10kA
- Čas izklopa:
- Kratkotrajno zakasnjen
- Nazivna enosmerna napetost (V):
- 400V
- Nazivna AC napetost (V):
- 400V
- Nazivni presek:
- 1mm²-25mm²
- Standardi:
- IEC/EN 61008-1
- IP zaščita:
- IP20
- Način montaže:
- TH 35
- Globina (mm):
- 70mm
Dokumenti
Logistični podatki
Produkt
- Teža izdelka
- 0.316 kg
- Carinska tarifa
- 85362010
- logis_net_width
- 70 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 74 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895879565
- Teža
- 0.316 kg
Transportno pakiranje
- Količina
- 50
- EAN
- 3838895879572
- Teža
- 16.23 kg
- Odpremna količina
- 1900
ETIM klasifikacija
- Klasifikacija
- EC000003
- Ime razreda
- Residual current circuit breaker (RCCB)
- Number of poles
- 4
- Rated voltage
- 400V
- Rated current
- 40A
- Rated fault current
- 30mA
- Rated insulation voltage Ui
- 400V
- Rated impulse withstand voltage Uimp
- 4kV
- Mounting method
- DIN rail
- Leakage current type
- F
- Selective protection
- Ne
- Short-time delayed tripping
- Ne
- Short-circuit breaking capacity (Icw)
- 10kA
- Surge current capacity
- 0,25kA
- Frequency
- 50 Hz
- Additional equipment possible
- Ne
- With interlocking device
- Ne
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 4
- Built-in depth
- 70mm
- Ambient temperature during operating
- -25…40°C
- Pollution degree
- 2
- Connectable conductor cross section multi-wired
- 1…25mm²
- Connectable conductor cross section solid-core
- 1…25mm²
