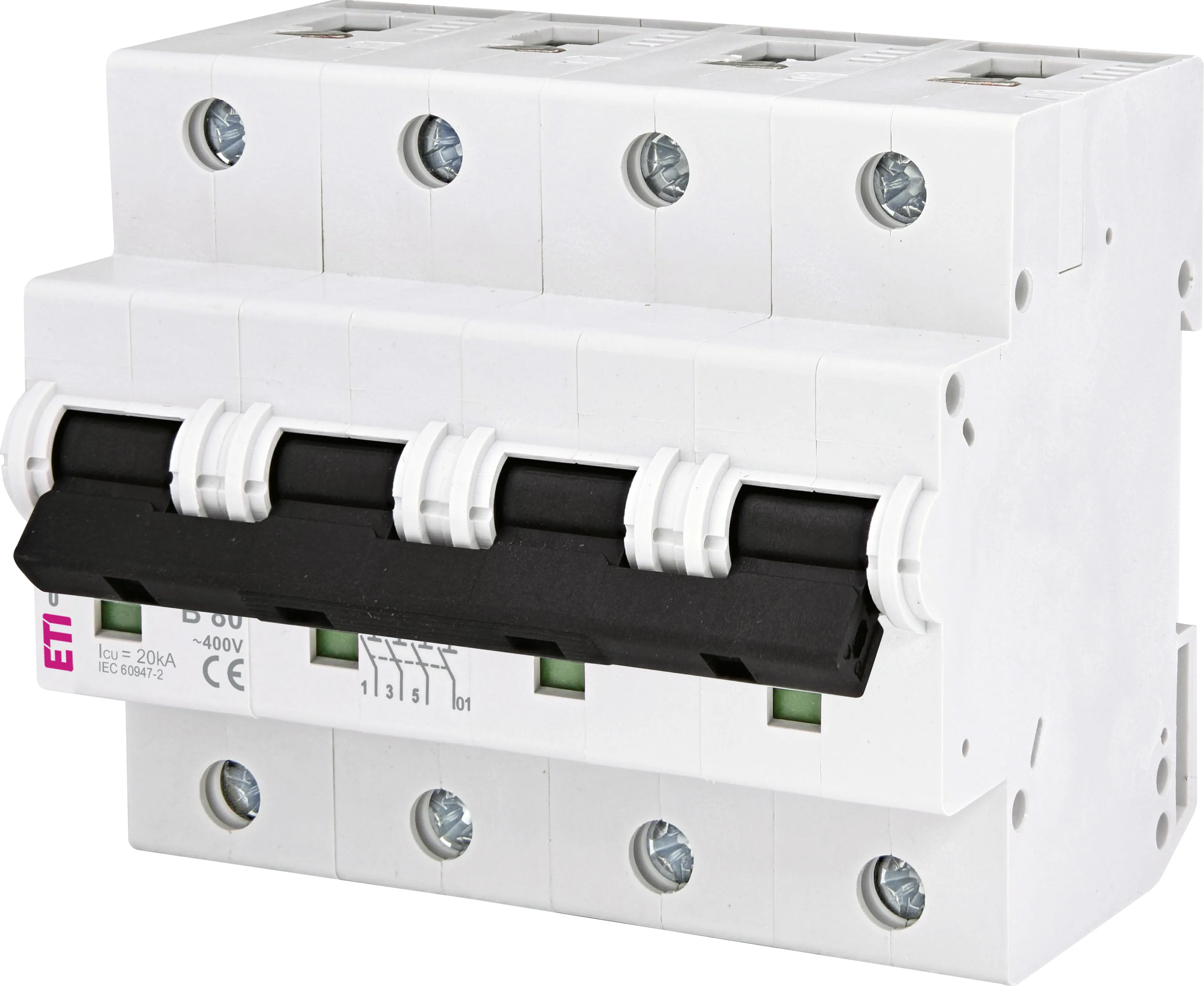

Inštalacijski odklopnik ETIMAT 10 3p+N B80 002126731
Specifikacija
- Koda izdelka:
- 002126731
- Opis:
- ETIMAT 10 3p+N B80
- Ime razreda:
- Inštalacijski odklopnik
- Nazivni tok (A):
- 80A
- Izklopna karakteristika:
- B
- Število polov:
- 3+N
- Nazivna kratkostična zmogljivost (kA):
- 20kA
- Vrsta napetosti:
- AC
- Nazivna frekvenca (Hz):
- 50Hz/60Hz
- Nazivna impulzna vzdržna napetost Uimp (kV):
- 4kV
- Nazivni presek:
- 25mm²
- Standardi:
- IEC/EN 60898-1,IEC 60947-2
- Funkcija:
- Inštalacijski odklopniki
Dokumenti
Logistični podatki
Produkt
- Teža izdelka
- 983 g
- Carinska tarifa
- 85362090
- logis_net_width
- 108 mm
- logis_net_height
- 91 mm
- logis_net_depth
- 77 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895811336
- Teža
- 1.015 kg
Transportno pakiranje
- Količina
- 14
- EAN
- 3838895811343
- Teža
- 14.445 kg
- Odpremna količina
- 728
ETIM klasifikacija
- Klasifikacija
- EC000042
- Ime razreda
- Miniature circuit breaker (MCB)
- Release characteristic
- B
- Number of poles (total)
- 4
- Number of protected poles
- 3
- Rated current
- 80A
- Rated voltage
- 415V
- Rated insulation voltage Ui
- 440V
- Rated impulse withstand voltage Uimp
- 4kV
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 10kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 10kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 20kA
- Voltage type
- Other
- Frequency
- 50…60Hz
- Current limiting class
- 3
- Concurrently switching neutral conductor
- Da
- Over voltage category
- 3
- Pollution degree
- 3
- Additional equipment possible
- Da
- Width in number of modular spacings
- 6
- Built-in depth
- 75mm
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -25…55°C
- Connectable conductor cross section multi-wired
- 2.5…50mm²
- Connectable conductor cross section solid-core
- 2.5…50mm²
