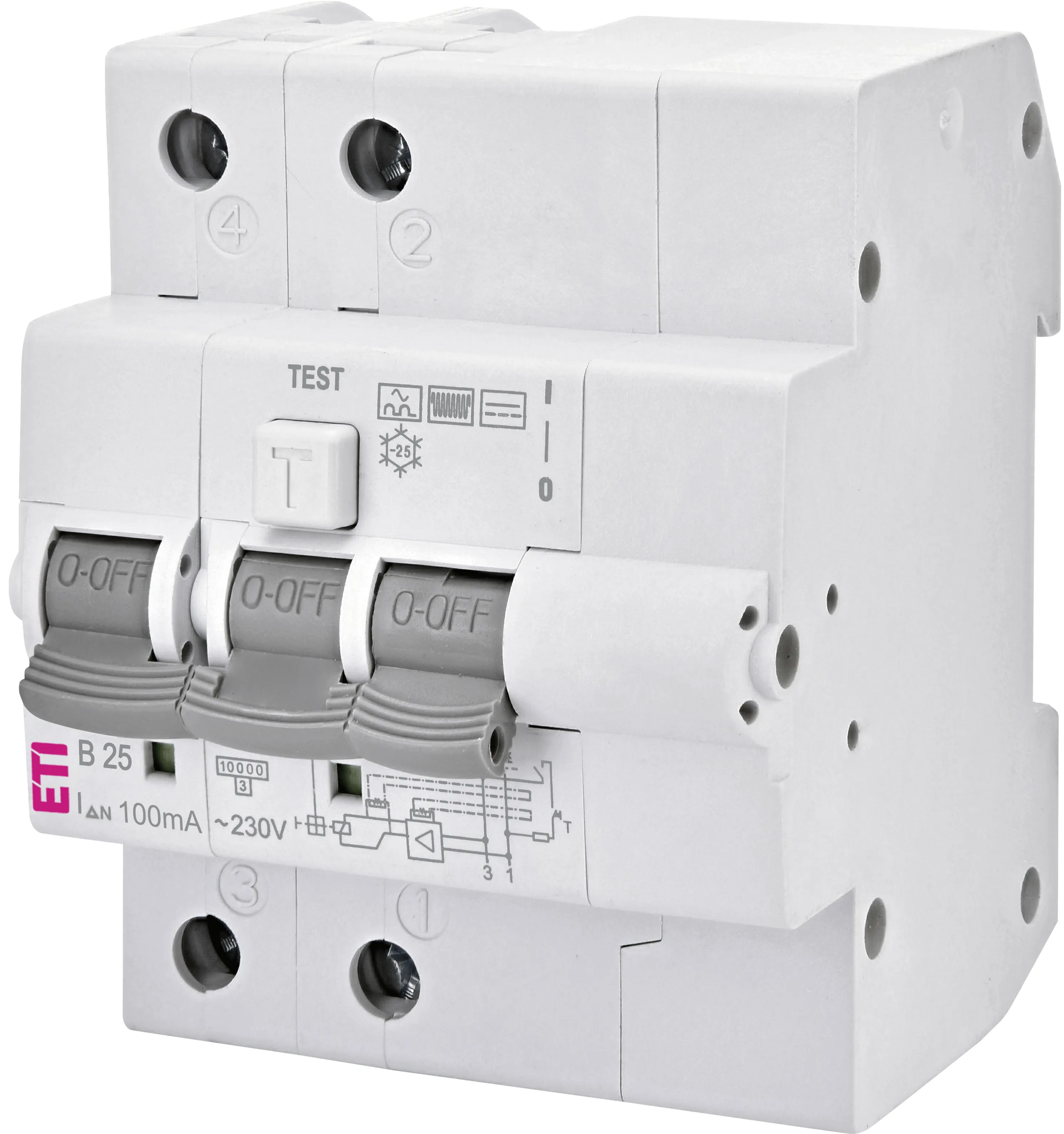

Kombinirano zaščitno stikalo KZS-4M 2p B B25/0.1 002174616
Specifikacija
- Koda izdelka:
- 002174616
- Opis:
- KZS-4M 2p B B25/0.1
- Ime razreda:
- Kombinirano zaščitno stikalo
- Nazivni diferenčni tok (A):
- 1A
- Nazivni tok (A):
- 25A
- Izklopna karakteristika:
- B
- Število polov:
- 2
- Nazivna kratkostična zmogljivost (kA):
- 10kA
- Nazivna frekvenca (Hz):
- 50Hz/60Hz
- Nazivni presek:
- 1mm²
- Standardi:
- IEC/EN 61009,IEC/EN 62423
Dokumenti
Logistični podatki
Produkt
- Teža izdelka
- 369 g
- Carinska tarifa
- 85362010
- logis_net_width
- 71 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 73 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895815990
- Teža
- 0.4 kg
Transportno pakiranje
- Količina
- 27
- EAN
- 3838895816003
- Teža
- 11.04 kg
- Odpremna količina
- 1404
ETIM klasifikacija
- Klasifikacija
- EC000905
- Ime razreda
- Earth leakage circuit breaker
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 230V
- Rated current
- 25A
- Rated fault current
- 0,1A
- Leakage current type
- B
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10kA
- Rated short-circuit breaking capacity according to IEC 60947-2
- 10kA
- Surge current capacity
- 3kA
- Voltage type
- AC
- Frequency
- 50/60 Hz
- Release characteristic
- B
- Concurrently switching neutral conductor
- Da
- Width in number of modular spacings
- 4
- Built-in depth
- 69mm
- Anti-nuisance tripping version
- Da
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1…25mm²
- Connectable conductor cross section multi-wired
- 1…25mm²
